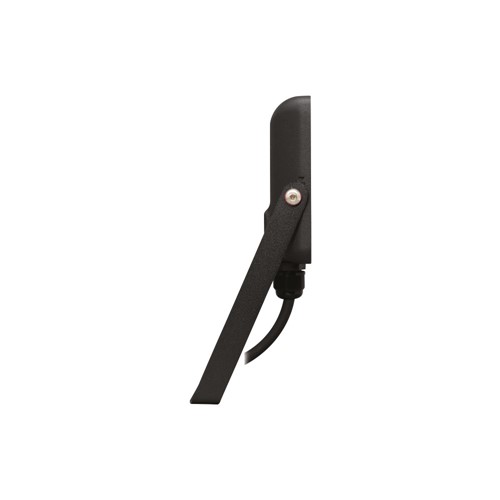

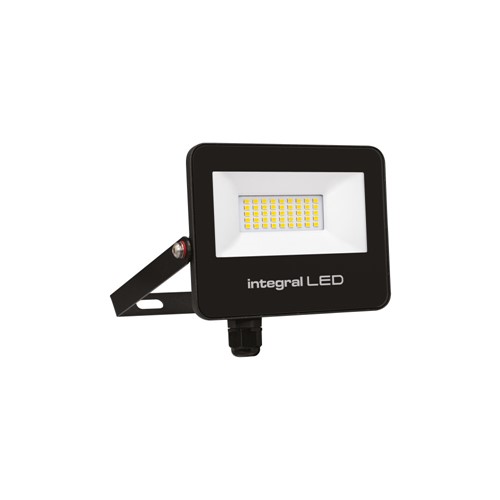

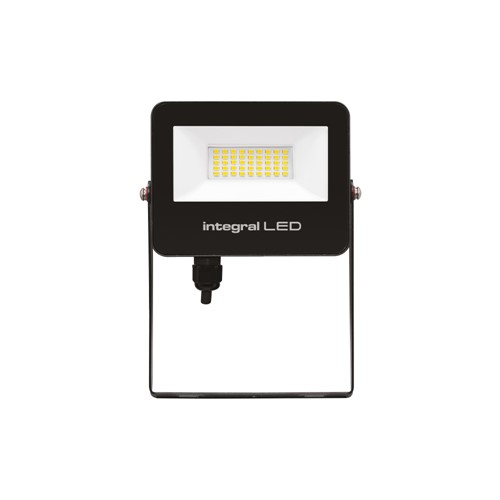

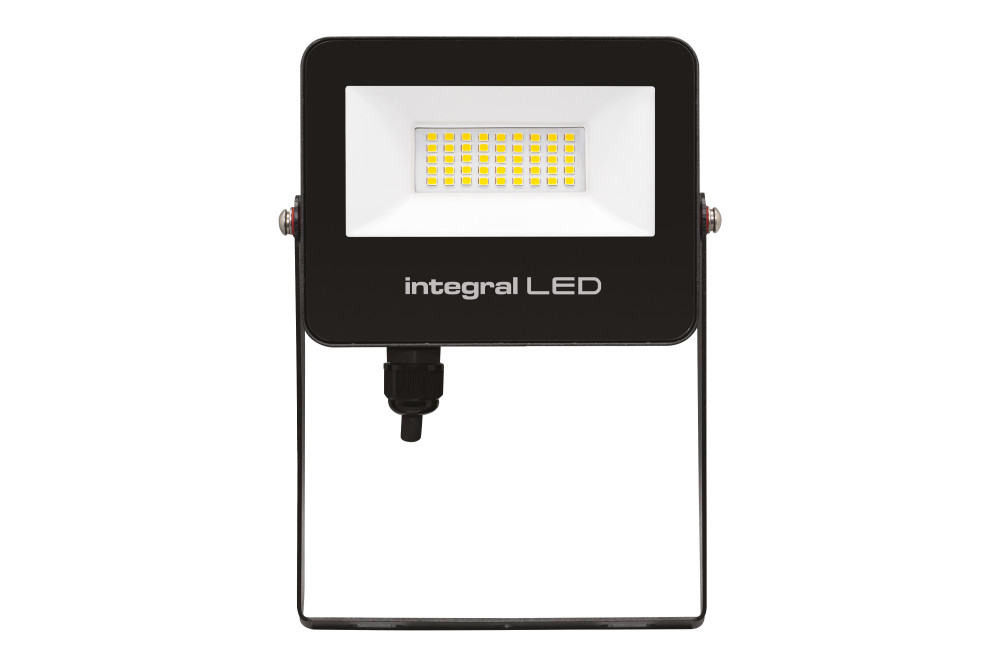

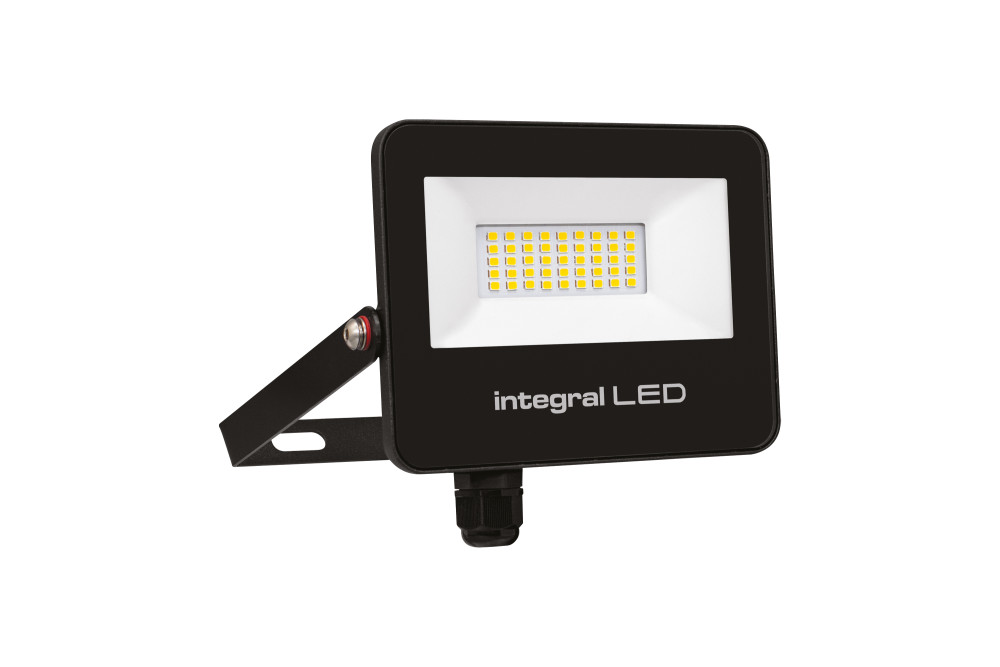

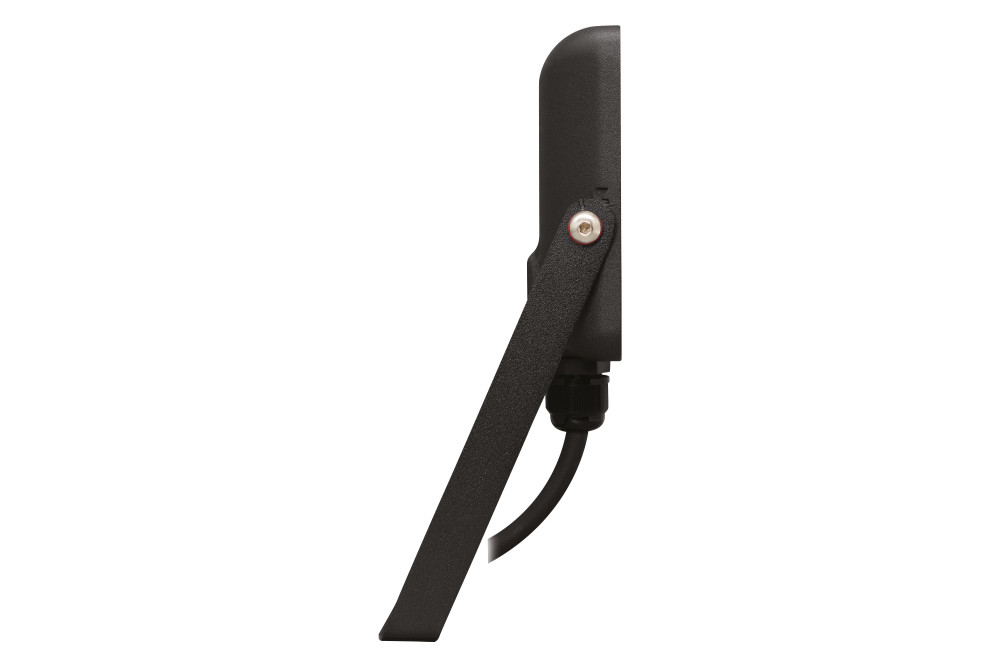

SUPER SLIM 2 FLOODLIGHT IP67 3000LM 30W 4000K 120› NON-DIMM 100LM/W BLACK
Part Number:
ILFLC232
This small and compact fitting is rated at IP67 and perfect for indoor and outdoor applications. It is highly efficient and durable making it a popular choice for long life applications. It utilises branded drivers and chips and it is fully guaranteed for 3 years.
- Product Feature 1:
- IP67
- Product Feature 2:
- For outdoor or indoor use
- Product Feature 3:
- Attractive low glare design
- Product Feature 4:
- Highly efficient
- Product Feature 5:
- Robust aluminium body for good heat dissipation
- Product Feature 6:
- Angled mounting bracket for easy installation
- Availability:
-
23
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788254058 |
|---|---|
| Quick Order Code | 117792 |
| Category | Luminaires |
| Range Name | Super Slim 2 |
| Product Body Finish | Matt Black |
| Market Segment | Commercial indoor, Residential indoor, Outdoor |
| Finish | Matt Black |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 178 |
|---|---|
| Product Depth (mm) | 31 |
| Product Width (mm) | 186 |
| Product Weight (g) | 810 |
| Optic | Clear Refractor |
| Material | Aluminium, Polycarbonate, Tempered glass |
| Construction | Die Cast Aluminium |
| Bulb Fixing | Uplighters, Floodlights |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Spot Type | SMD |
Light Data
| Energy Efficiency Label (Image) | ILFLC232_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 3000 |
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 35000 |
| Lighting Method | Back-lit |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 400 |
Electrical Data
| Power (W) | 30 |
|---|---|
| Power Consumption (W) | 30 |
| Power Factor | 0.7 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Protection Function | Short circuit, overload and over heating |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Back/Recessed side) | IP67 |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788254058 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 910 |
| Package Length (mm) | 188 |
| Package Width (mm) | 196 |
| Package Depth (mm) | 35 |
| Outer Carton Barcode | 5055788254058 |
| Qty per Outer Carton | 20 |
| Outer Carton Length (mm) | 335 |
| Outer Carton Width (mm) | 295 |
| Outer Carton Depth (mm) | 390 |
Safety Guide
ILFLC232
