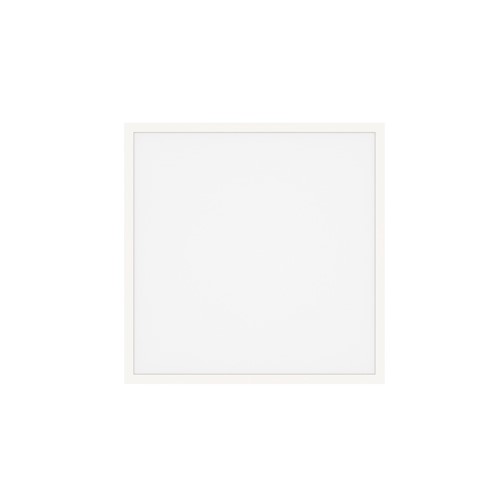

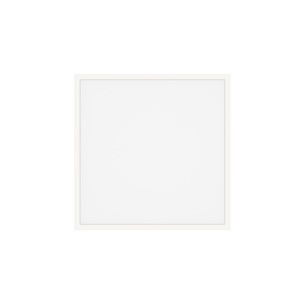

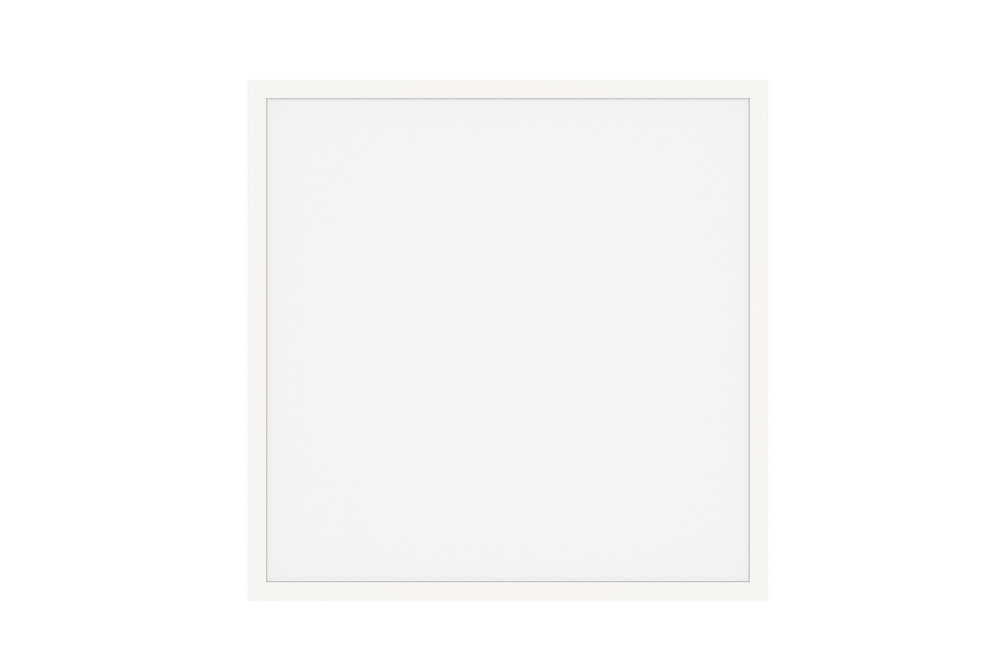

EVO MAX LED PANEL LIGHT 600X600 3600LM 20W 4000K BACKLIT NON-DIMM 180LM/W INTEGRAL

Part Number:

ILP6060B049

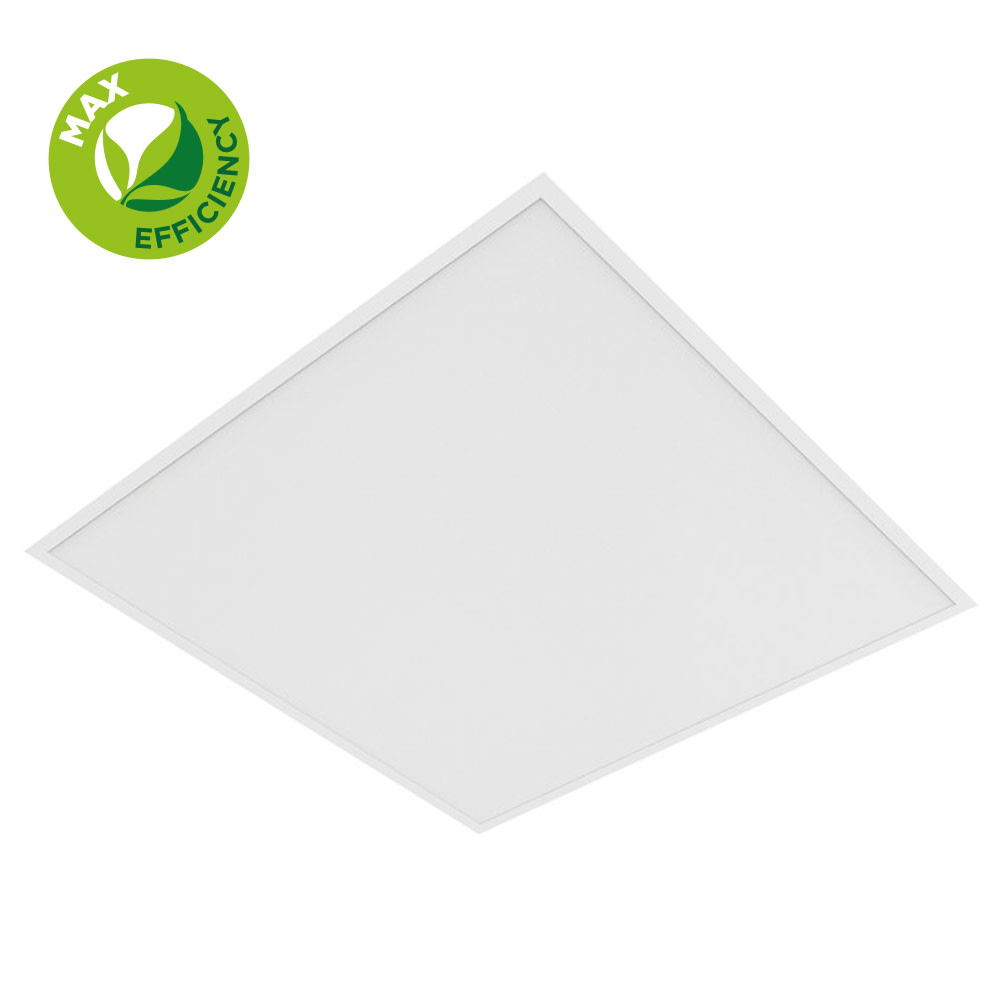

The Evo Max is the latest product to receive our Max Efficiency mark, adding it to our range of high performance, energy saving luminaires.

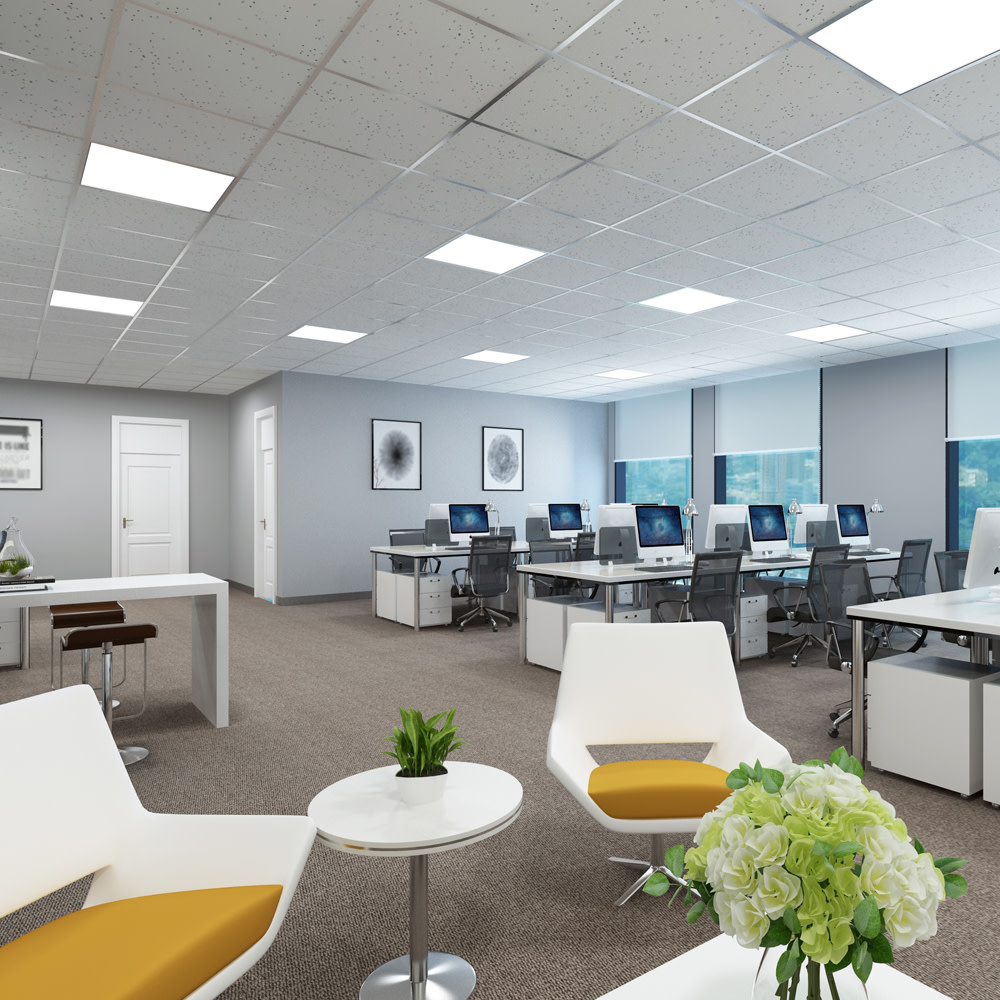

Taking office and commercial lighting efficiencies to new levels, the remarkable 180lm/W allows energy savings against traditional fluorescent fittings as well as many LED equivalents.

The panel’s back-lit design with frosted diffuser finish offers even, shadow-free light distribution for enhanced usability and visual comfort.

Non-dimm driver included.

Product Feature 1:
Cool White
Product Feature 2:
3600 Lumens
Product Feature 3:
180lm/W
Product Feature 4:
5 year warranty
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Quick Order Code 287552
Barcode 5055788298526
Category Panels
Range Name Evo Max
Product Type 600 x 600
Product Body Finish Matt white
Market Segment Commercial indoor
Warranty (Years) 5
Emergency Option No
Product Length (mm) 595
Product Depth (mm) 34
Product Width (mm) 595
Product Weight (g) 800
Optic PS Diffuser
Material Aluminium, Steel, PS Diffuser
Construction Aluminimum backplate and frame
Luminaire Fixing Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required)
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 3600
Luminous efficacy (lm/W) 180
Peak Intensity (Cd) 1500
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Lighting Method Back-lit
Switching Cycles 25000
Power Consumption (W) 20
Power Factor 0.9
Voltage Range (v) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
Package Weight (g) 2600
Package Length (mm) 650
Package Width (mm) 600
Package Depth (mm) 38

Product Specification Sheet

Safety Guides

LDT Files
