VALUE+ LED PANEL LIGHT 600X600 3800LM 38W 4000K EDGE-LIT NON-DIMM 100LM/W INTEGRAL (SOLD AS 60 PCs PALLET DEAL ONLY)
Part Number:
ILP6060E002
Sold as 60Pcs Pallet Deal only

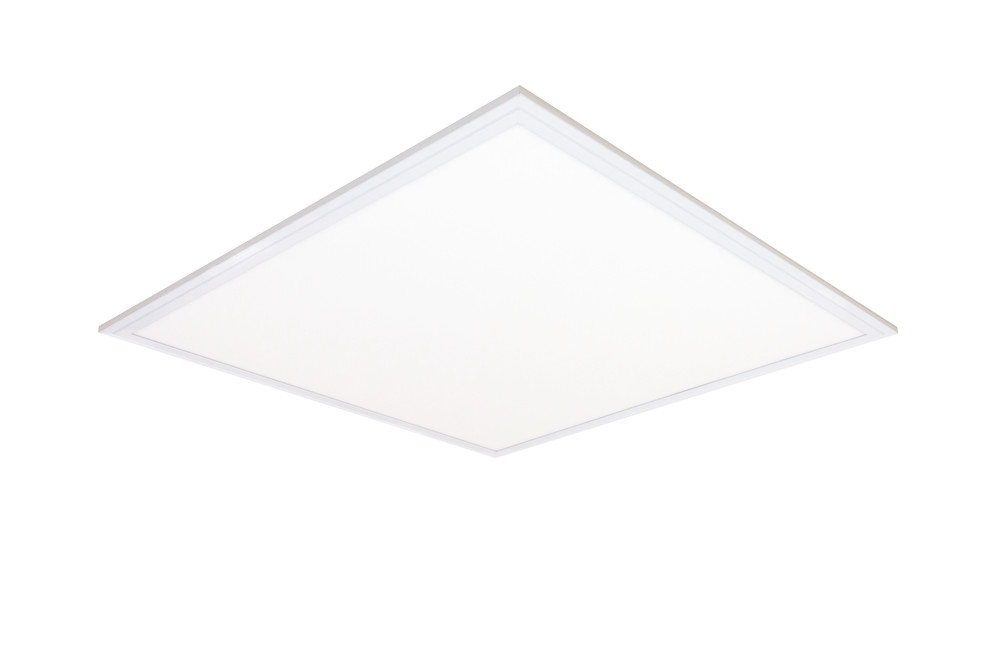

This is a 38W, 3800lm 600x600 Integral LED Value+ panel. It delivers a uniform white light across the whole of its surface. The high level of efficacy (100lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels. The panels are an ideal solution for many business applications.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 3800 Lumens
- Product Feature 3:
- 100lm/W
- Product Feature 4:
- 3 Year warranty
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788225515 |
|---|---|
| Quick Order Code | 431817 |
| Category | Panels |
| Range Name | Value+ |
| Product Type | 600 x 600 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Panels |
| Product Length (mm) | 596 |
| Product Depth (mm) | 8.2 |
| Product Width (mm) | 596 |
| Product Weight (g) | 2800 |
| Optic | Opal diffuser |
| Material | Aluminium, Steel, PS Diffuser |
| Construction | extruded Aluminium, steel back, LGP sheet and PS diffuser |
| Luminaire Fixing | Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required) |
| Panel Equivalent | The Luminaire is Class II |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILP6060E002_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 3600, 3800 |
| Luminous efficacy (lm/W) | 100 |
| Peak Intensity (Cd) | 1004 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Lighting Method | Edge-lit |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 38 |
|---|---|
| Power Consumption (W) | 38 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Amperage (mA) | 835 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
| TP rating | None |
Packaging
| Barcode | 5055788225515 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 3300 |
| Package Length (mm) | 686 |
| Package Width (mm) | 640 |
| Package Depth (mm) | 40 |
| Outer Carton Barcode | 05055788225515 |
| Qty per Outer Carton | 5 |
| Outer Carton Length (mm) | 680 |
| Outer Carton Width (mm) | 167 |
| Outer Carton Depth (mm) | 640 |
| Qty per euro pallet | 75 |
