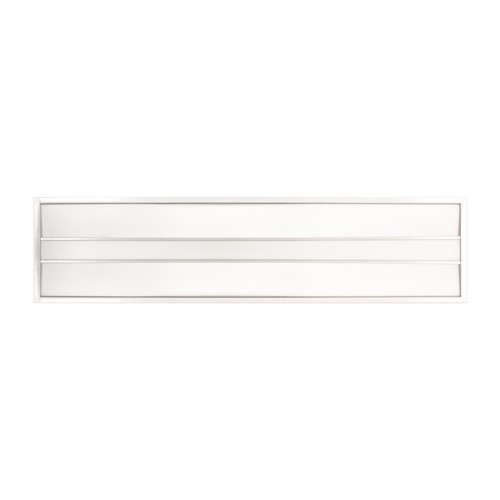

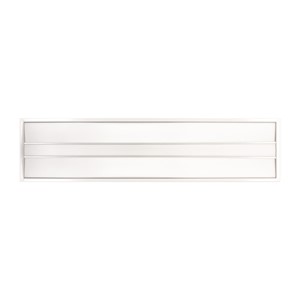

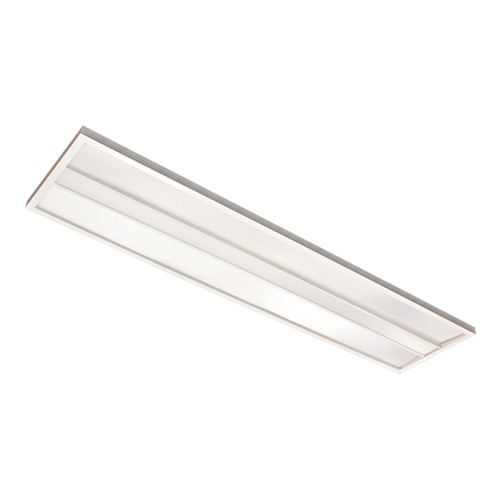

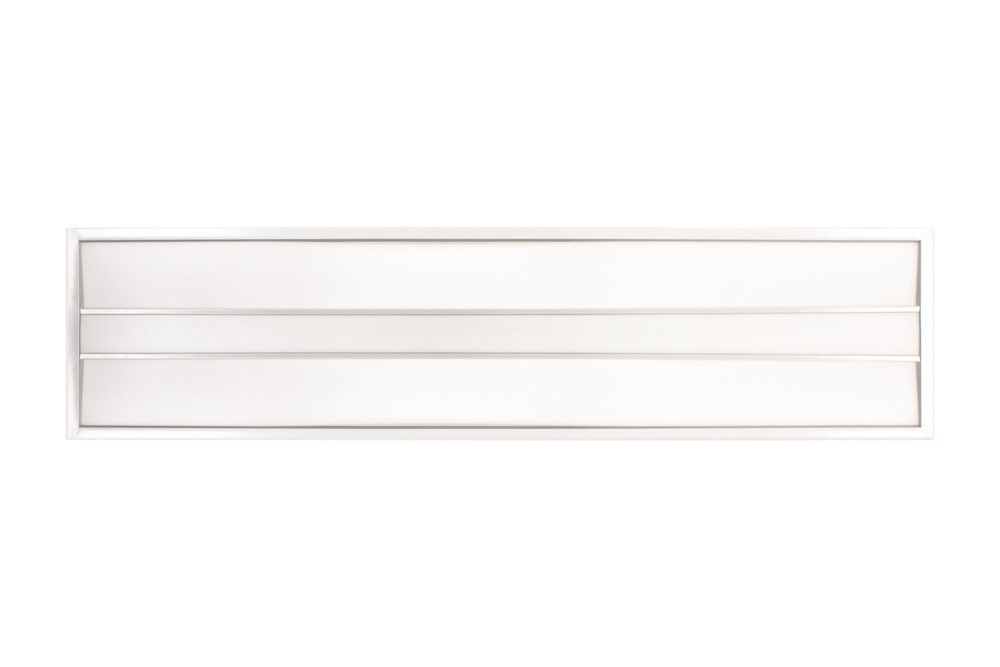

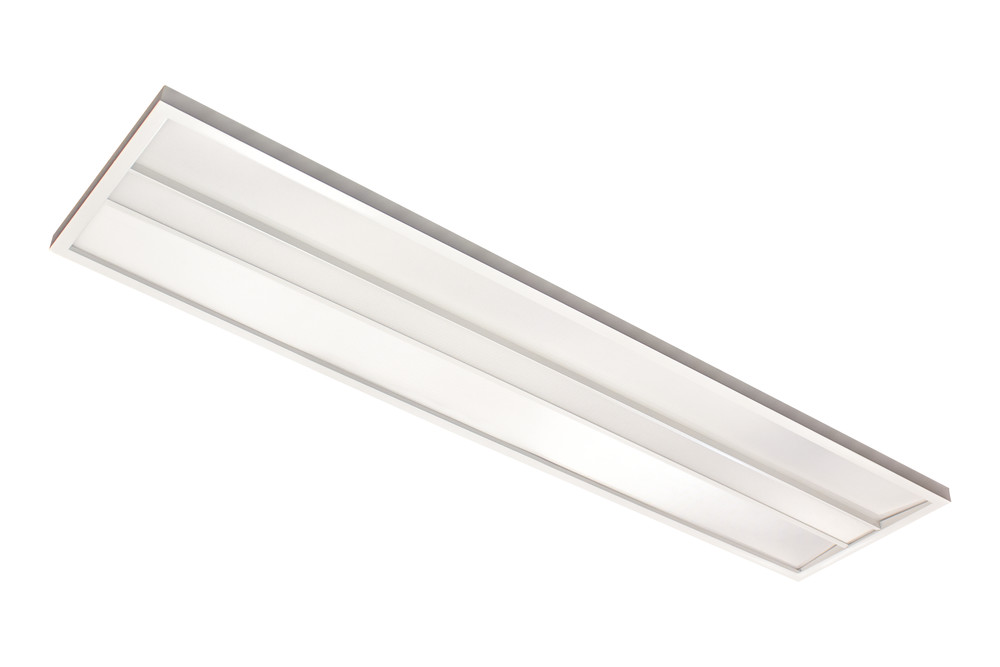

EVO LED RECESSED MODULAR 1200x300 3600lm 36W 4000k TPA UGR<19 BACKLIT NO DRIVER INCLUDED 100lm/w INTEGRAL
Part Number:
ILP1230B007

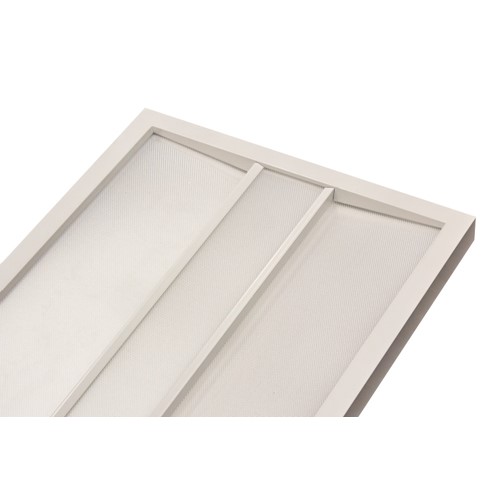

Integral LED’s recessed modular fittings feature a 3-surface angled construction with a prismatic diffuser, helping achieve URG<19 rating without modifying the traditional diffuser present in standard panels. The angled construction also allows for more control of the beam angle delivering a more attractive light compared to standard panels.
Our recessed modular solutions are ideal for offices, meeting rooms, corridors, airports, schools/universities and retail environments, delivering much higher energy-saving levels compared to obsolete fluorescent fittings.
The prismatic TP(a) polycarbonate diffuser has been tested by a UK-based laboratory and passed BS782-0:2004 Method 508A, as required by Fire Safety regulations.
Our recessed modular solutions are ideal for offices, meeting rooms, corridors, airports, schools/universities and retail environments, delivering much higher energy-saving levels compared to obsolete fluorescent fittings.
The prismatic TP(a) polycarbonate diffuser has been tested by a UK-based laboratory and passed BS782-0:2004 Method 508A, as required by Fire Safety regulations.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 3600 Lumens
- Product Feature 3:
- 100lm/W
- Product Feature 4:
- UGR<19
- Product Feature 5:
- TP(a) rated diffuser
- Product Feature 6:
- 5 Year Warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788267362 |
|---|---|
| Quick Order Code | 557420 |
| Category | Panels |
| Range Name | Evo |
| Product Type | 1200 x 300 |
| Product Body Finish | RAL9006 |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Length (mm) | 1195 |
| Product Depth (mm) | 45 |
| Product Width (mm) | 295 |
| Product Weight (g) | 2000 |
| Optic | TP(a) rated diffuser |
| Construction | Aluminimum backplate and frame |
| Luminaire Fixing | Recessed in ceiling grid, surface mounted, or suspended (additional surface mounted or suspention kit requied) |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILP1230B007_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 3600 |
| Luminous efficacy (lm/W) | 100 |
| Peak Intensity (Cd) | 665 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 89 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Back-lit |
| Lifetime (hours) | 35000 |
| Lighting Method | Back-lit |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 36 |
|---|---|
| Power Consumption (W) | 36 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Driver Included | No |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
| TP rating | TP(a) |
Packaging
| Barcode | 5055788267362 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 2400 |
| Package Length (mm) | 1240 |
| Package Width (mm) | 330 |
| Package Depth (mm) | 80 |
| Outer Carton Barcode | 05055788267928 |
| Qty per Outer Carton | 5 |
| Outer Carton Length (mm) | 1290 |
| Outer Carton Width (mm) | 325 |
| Outer Carton Depth (mm) | 360 |
