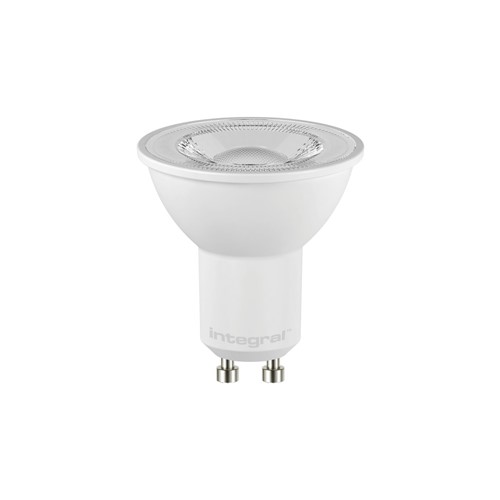

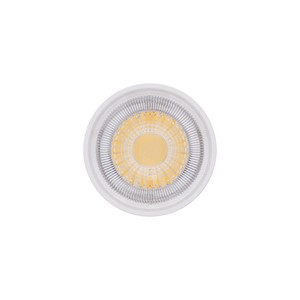

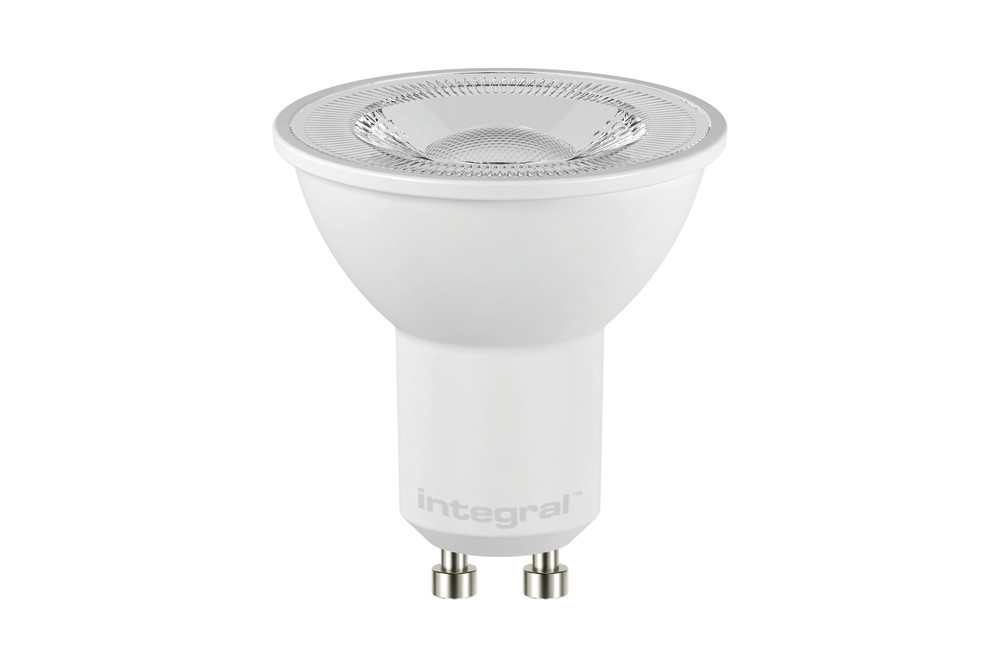

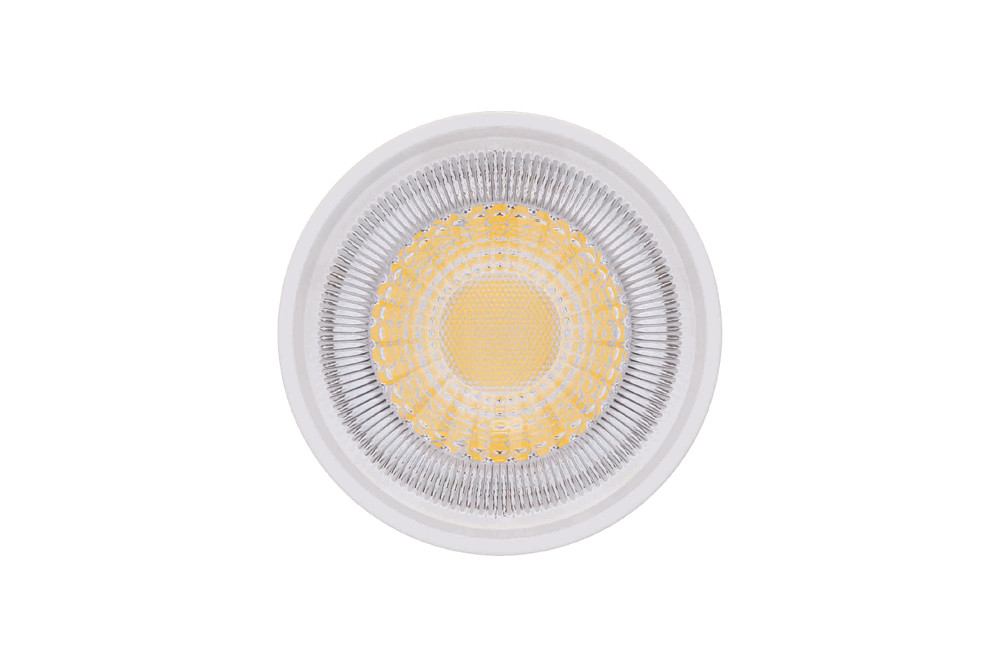

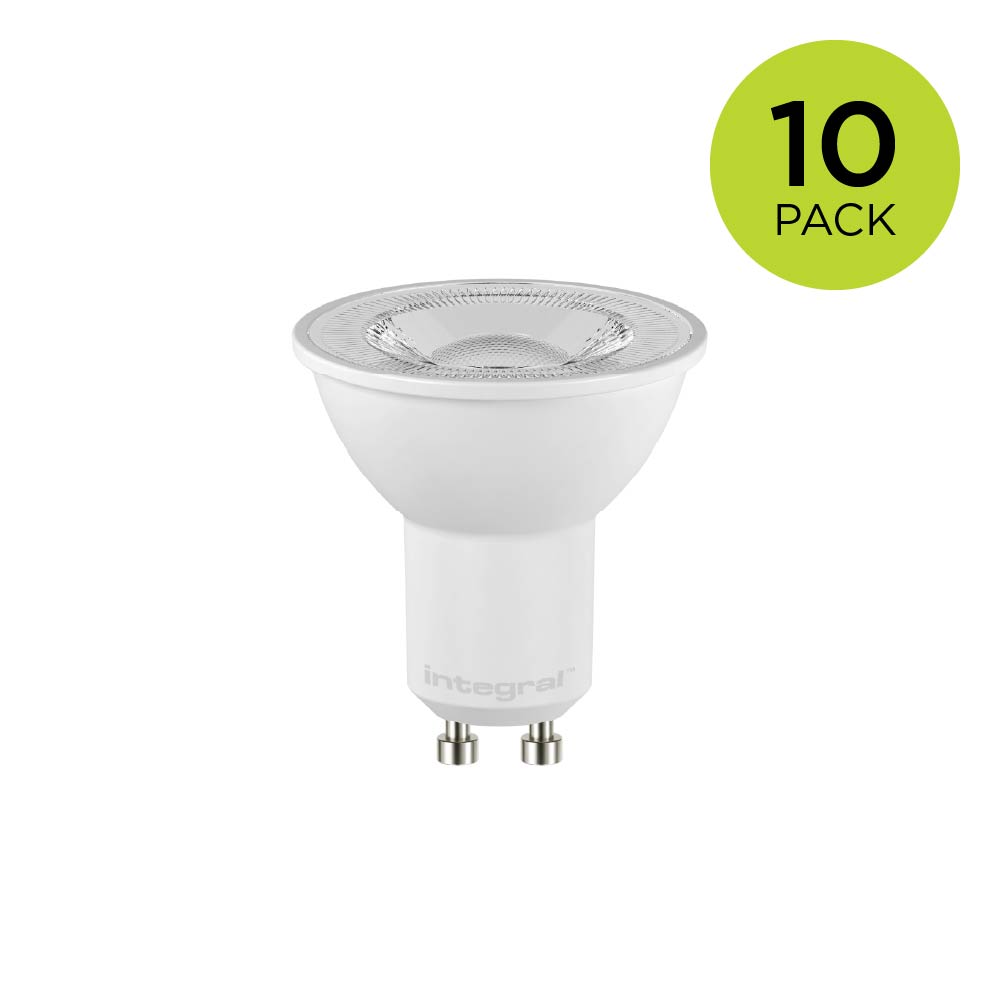

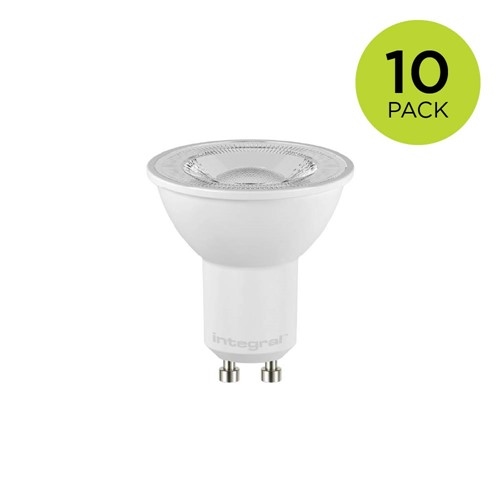

GU10 BULB 10 PACK 600LM 5.7W 2700K DIMMABLE 36 BEAM INTEGRAL
Part Number:
ILGU10DC117-10
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 540 Useful Lumens (600 Nominal)
- Product Feature 3:
- Dimmable with compatible dimmers
- Availability:
-
0
More stock due in on 03/12/2025
Details
| Barcode | 5055788323938 |
|---|---|
| Quick Order Code | 838532 |
| Category | Lamps |
| Range Name | 240V GU10 Base |
| Product Type | GU10 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Clear |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 54 |
|---|---|
| Product Width (mm) | 50 |
| Product Weight (g) | 27 |
| Optic | Designed to give a Classic Look |
| Material | Plastic and Aluminium heat-sink, Injection moulded diffuser |
| Base Term | GU10 |
| Bulb Base | GU10 |
| Construction | Plastic White and "Classic look" diffuser lens |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 600 |
|---|---|
| Luminous efficacy (lm/W) | 95 |
| Peak Intensity (Cd) | 1050 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 540 |
Electrical Data
| Power (W) | 5.7 |
|---|---|
| Power Consumption (W) | 5.7 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 75 |
| Amperage (mA) | 33 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 75 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A+ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788323938 |
|---|---|
| Single box qty | 10 |
| Package Weight (g) | 230 |
| Package Length (mm) | 190 |
| Package Width (mm) | 87 |
| Package Depth (mm) | 60 |
| Outer Carton Barcode | 05055788323938 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 550 |
| Outer Carton Width (mm) | 230 |
| Outer Carton Depth (mm) | 140 |
Safety Guide
