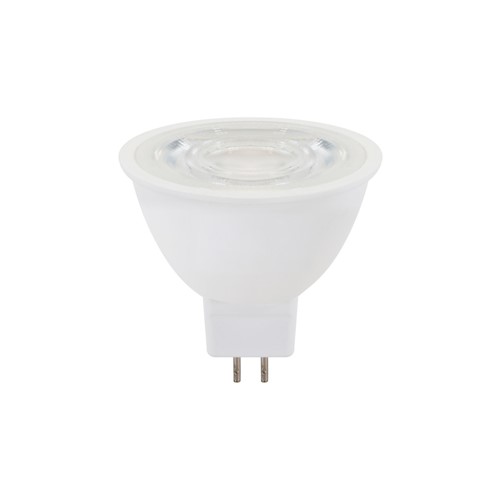

CLASSIC MR16 BULB GU5.3 690LM 5W 4000K DIMMABLE 36 BEAM (CLASS D)
Part Number:
ILMR16DE057
- Product Feature 1:
- Cool White Light
- Product Feature 2:
- 621 Useful Lumens (690 Nominal)
- Product Feature 3:
- Dimmable
- Availability:
-
500+
More stock due in on 05/01/2026
Details
| Barcode | 5055788322603 |
|---|---|
| Quick Order Code | 624335 |
| Category | Lamps |
| Range Name | Classic |
| Product Type | MR16 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 50 |
|---|---|
| Product Width (mm) | 50 |
| Product Weight (g) | 29 |
| Optic | Designed to give a Classic Look |
| Material | Plastic and Aluminium heat-sink, Injection moulded diffuser |
| Base Term | GU5.3 |
| Bulb Base | MR16 |
| Construction | Plastic White and "Classic look" diffuser lens |
| Globe Finish | White |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD with "COB like effect" |
Light Data
| Energy Efficiency Label (Image) | ILMR16DE057_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 690 |
| Luminous efficacy (lm/W) | 113 |
| Peak Intensity (Cd) | 1776 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 621 |
Electrical Data
| Power (W) | 5 |
|---|---|
| Power Consumption (W) | 5 |
| Voltage Range (v) | 12 |
| Wattage equivalent (W) | 50 |
| Amperage (mA) | 450 |
| Dimming | Mains dim |
| Driver Included | No, needs 12V AC Transformer |
| Electric Current | AC |
| True Wattage Eq (W) | 50 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A+ |
| New Energy Rating | D |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788322603 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 39 |
| Package Length (mm) | 51 |
| Package Width (mm) | 51 |
| Package Depth (mm) | 60 |
| Outer Carton Barcode | 05055788322764 |
| Qty per Outer Carton | 120 |
| Outer Carton Length (mm) | 530 |
| Outer Carton Width (mm) | 325 |
| Outer Carton Depth (mm) | 140 |
| Qty per euro pallet | 4320 |
Safety Guide
ILMR16DE057
