OUTDOOR DECORATIVE WALL LIGHT CURVE IP54 360LM 7.5W 3000K DOWN LIGHT DARK GREY INTEGRAL
Part Number:
ILDEA008
Discover Integral's new outdoor range. Light up the exterior of your home with these compact, stylish and contemporary LED luminaires. Weatherproof and hard-wearing, this range is designed to last against the elements while bringing a designer look to your surroundings.

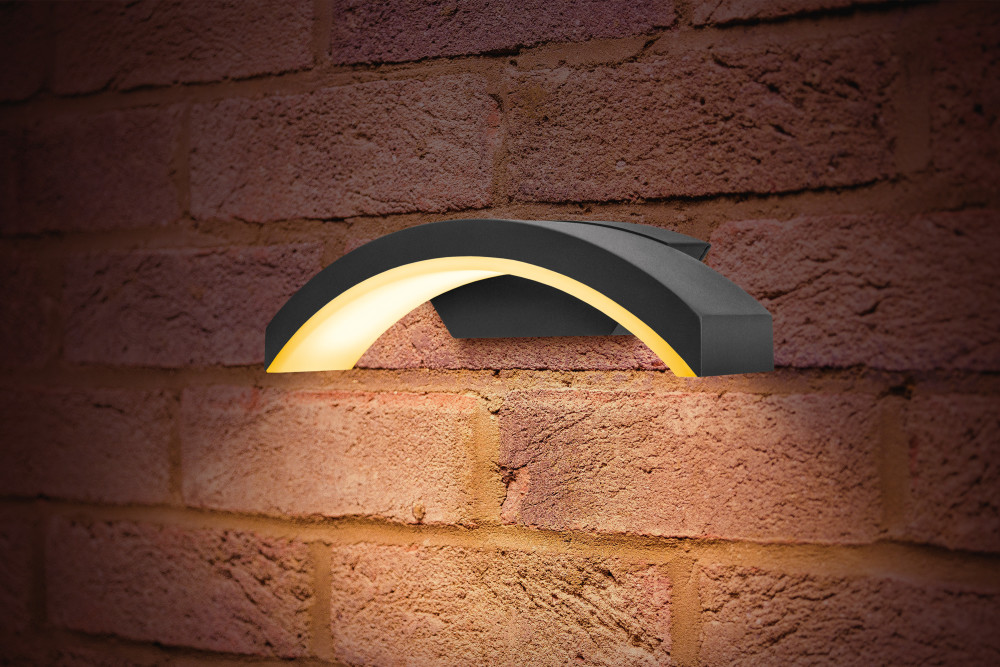

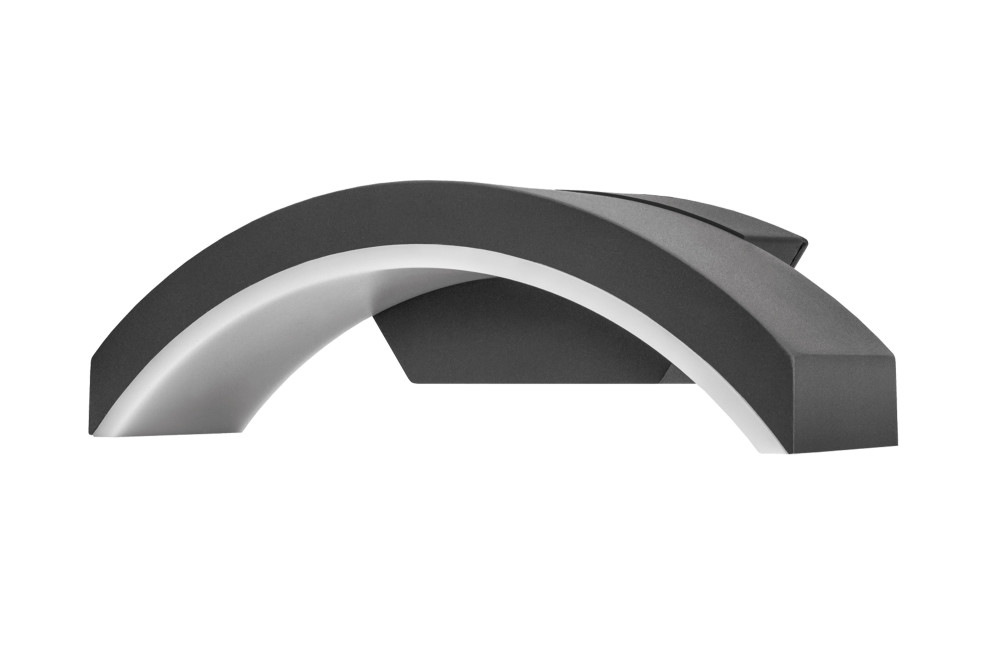

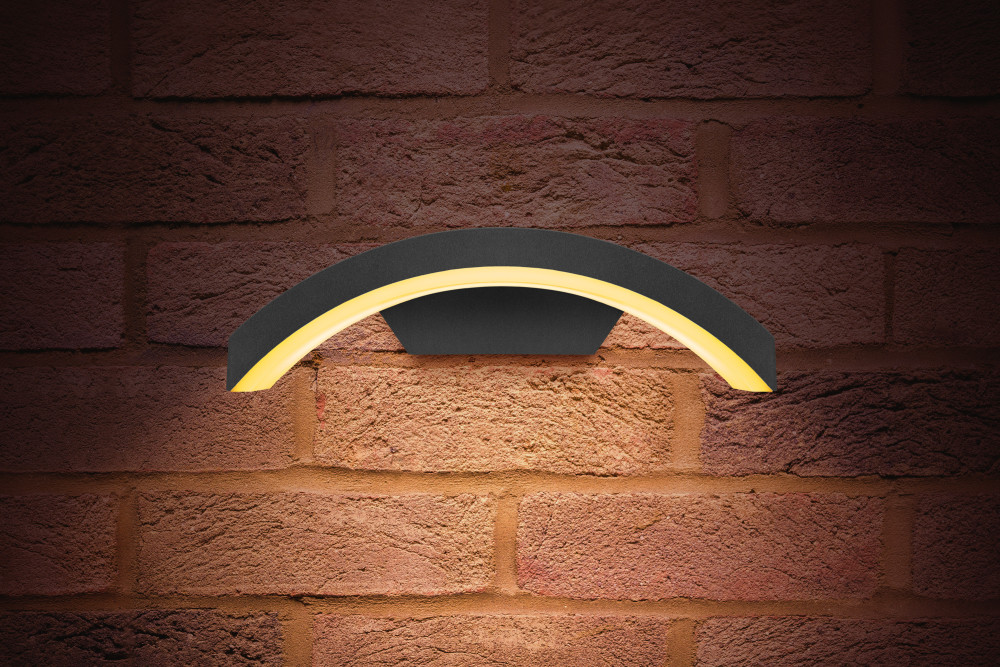

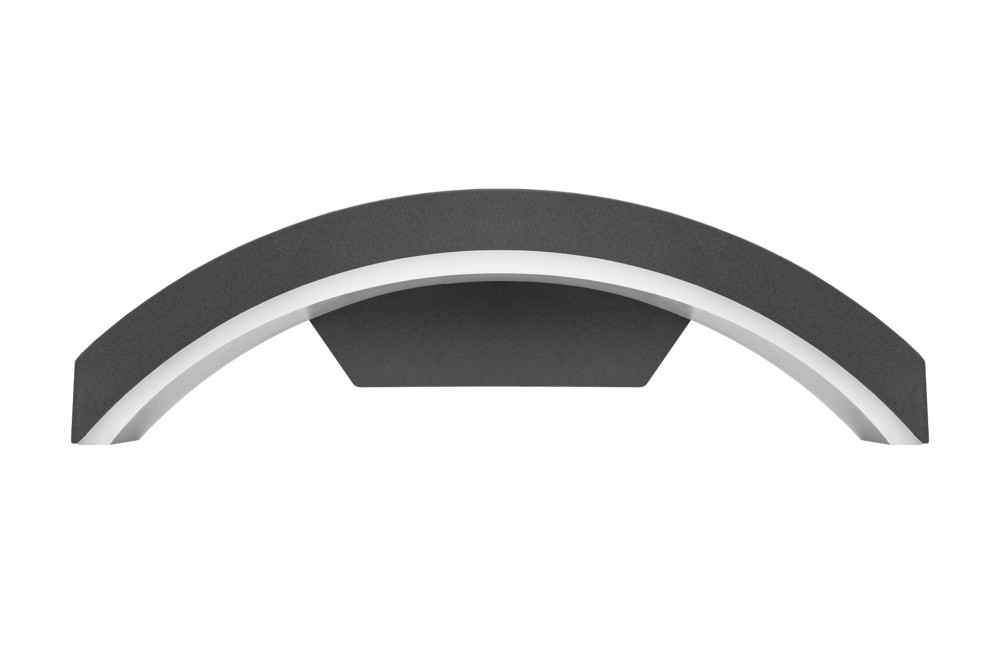

Sleek and sophisticated, the Curve wall light is the ideal accessory to light up your outdoor space.
- Product Feature 1:
- Stylish and contemporary design
- Product Feature 2:
- Hard-wearing and weatherproof
- Product Feature 3:
- Die cast aluminium body with powder coated finish
https://www.youtube.com/watch?v=7QTqRt9OxWM
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788232605 |
|---|---|
| Quick Order Code | 306447 |
| Category | Luminaires |
| Range Name | Decorative |
| Product Type | Outdoor |
| Market Segment | Residential Outdoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 270 |
|---|---|
| Product Depth (mm) | 112 |
| Product Width (mm) | 82 |
| Product Weight (g) | 675 |
| Optic | Opal Polycarbonate diffuser |
| Material | Die cast aluminium body with powder coated finish |
| Luminaire Fixing | Wall Mounted |
| Placement / Application | Outdoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDEA008_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 360 |
| Luminous efficacy (lm/W) | 48 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000 |
| Colour Temperature Name | Warm White |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power Consumption (W) | 7.5 |
|---|---|
| Power Factor | 0.8 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 350 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP54 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788232605 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 780 |
| Package Length (mm) | 285 |
| Package Width (mm) | 95 |
| Package Depth (mm) | 120 |
| Outer Carton Barcode | 05055788232612 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 505 |
| Outer Carton Width (mm) | 295 |
| Outer Carton Depth (mm) | 255 |
Safety Guide
ILDEA008
