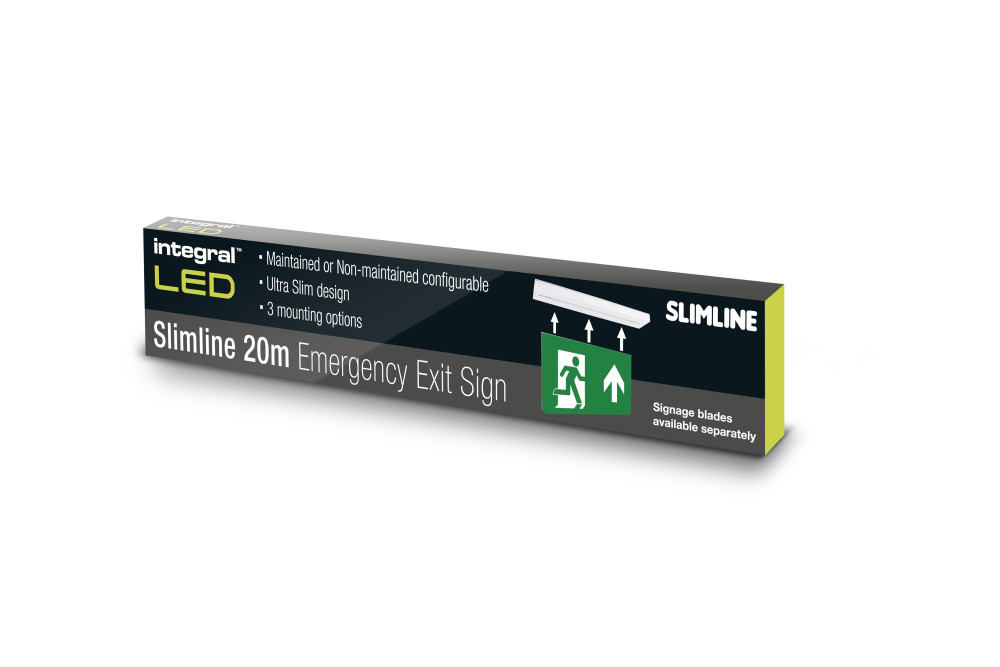

EMERGENCY EXIT SIGN 20M VIEWING 1W 3HR MAINTAINED OR NON-MAINTAINED MANUAL TEST INTEGRAL
Part Number:
ILEMES022
Emergency Exit Sign 20M Viewing 1W Maintained Or Non-Maintained ManualNote: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- 3 hours emergency light
- Product Feature 2:
- 1W LED
- Product Feature 3:
- 50Lm
- Product Feature 4:
- 6000K
- Availability:
-
46
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788229940 |
|---|---|
| Quick Order Code | 331006 |
| Category | Emergency |
| Range Name | Multi-Fit |
| Product Type | Exit Signs |
| Market Segment | Commercial indoor |
| Features | 3 hour exit sign, Ni-Cd Battery, Suspendable, Viewing distance - 20m, Wall mounted |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Exit Signs |
| Product Length (mm) | 236 |
| Product Width (mm) | 16 |
| Material | Polycarbonate |
| Globe Finish | White |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall Mounted, Ceiling Mounted, Suspended |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 50 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 6000 |
| Colour Temperature Name | Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lumens in Emergency mode (lm) | 50 |
| Useful Lumens (lm) | 50 |
Electrical Data
| Power (W) | 1 |
|---|---|
| Power Consumption (W) | 1 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240V |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | Yes |
Environmental
| EN | Yes |
|---|---|
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788229940 |
|---|---|
| Package Weight (g) | 118 |
| Package Length (mm) | 236 |
| Package Width (mm) | 45 |
| Package Depth (mm) | 16 |
