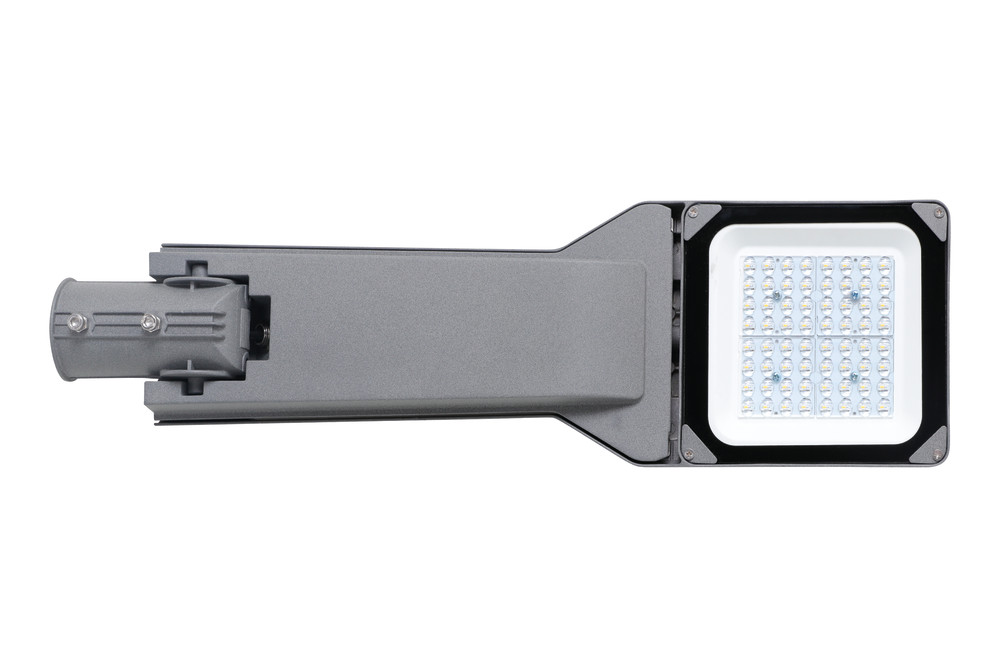

MATRIX MINI STREET LIGHT 4650LM 30W 4000K OPTIC-T2M IP66 34 TO 48MM DIA SPIGOT CLAMP NFC IK09 NEMA3 WITH CAP & AUTO-DISCONNECT RAL7037

Part Number:

ILSLB001

Product Feature 1:
Compact LED design
Product Feature 2:
Tough aluminium body tempered glass and marine grade fixings
Product Feature 3:
Ultra efficient LED latern for street lighting and car parks
Product Feature 4:
Field programmable driver using NFC
Product Feature 5:
3 pin NEMA Socket
Product Feature 6:
Thermally Optimised
Product Feature 7:
Contact us for columns and accessories
Product Feature 8:
Settable tilt angles From 10 to +15
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Quick Order Code 400961
Barcode 5055788266051
Category Luminaires
Range Name Matrix
Product Body Finish Grey
Market Segment Commercial and Outdoor
Warranty (Years) 5
Product Length (mm) 517
Product Depth (mm) 110
Product Width (mm) 166
Product Weight (g) 3200
Material Aluminium, Tempered Glass
Construction Aluminium die-cast heat-sink, Tempered Glass protective front cover, Integrated driver
Bulb or Luminaire Shape Rectangle
Luminaire Fixing Bracket for Wall & Pole Mounting
Placement / Application Outdoor
Beam Type Asymmetrical
Luminous Flux in Lumens (lm) 4650
Luminous efficacy (lm/W) 155
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle T2-M
Colour Rendering Index (CRI) 70
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 100000
Sensor / Overide No
Switching Cycles 100000
Power Consumption (W) 30
Power Factor 0.9
Voltage Range (v) 220-240
Dimming DALI2
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK09
IP Rating (Back/Recessed side) IP66
IP Rating (Ingress Protection) IP66
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 55
Package Weight (g) 4000
Package Length (mm) 175
Package Width (mm) 660
Package Depth (mm) 235

Product Specification Sheet

Safety Guides

Installation Guides

LDT Files
