PROFILE ALUMINIUM CORNER SURFACE MOUNT BLACK ANODISED 2M BLACK FROSTED DIFFUSER 20X20MM INCLUDE 2 END CAPS AND 4 MOUNTING BRACKETS
Part Number:
ILPFC047B

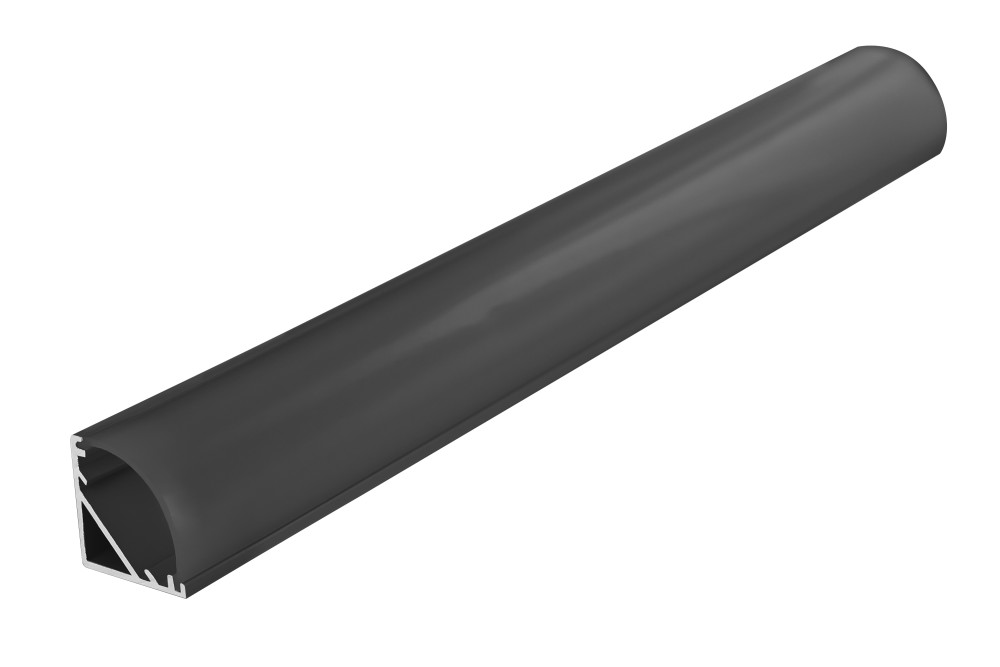

Enhance the appearance of your LED Strip lighting installation with this new and stylish 2-metre black anodised aluminium extrusion, complete with a matt black frosted polycarbonate diffuser.

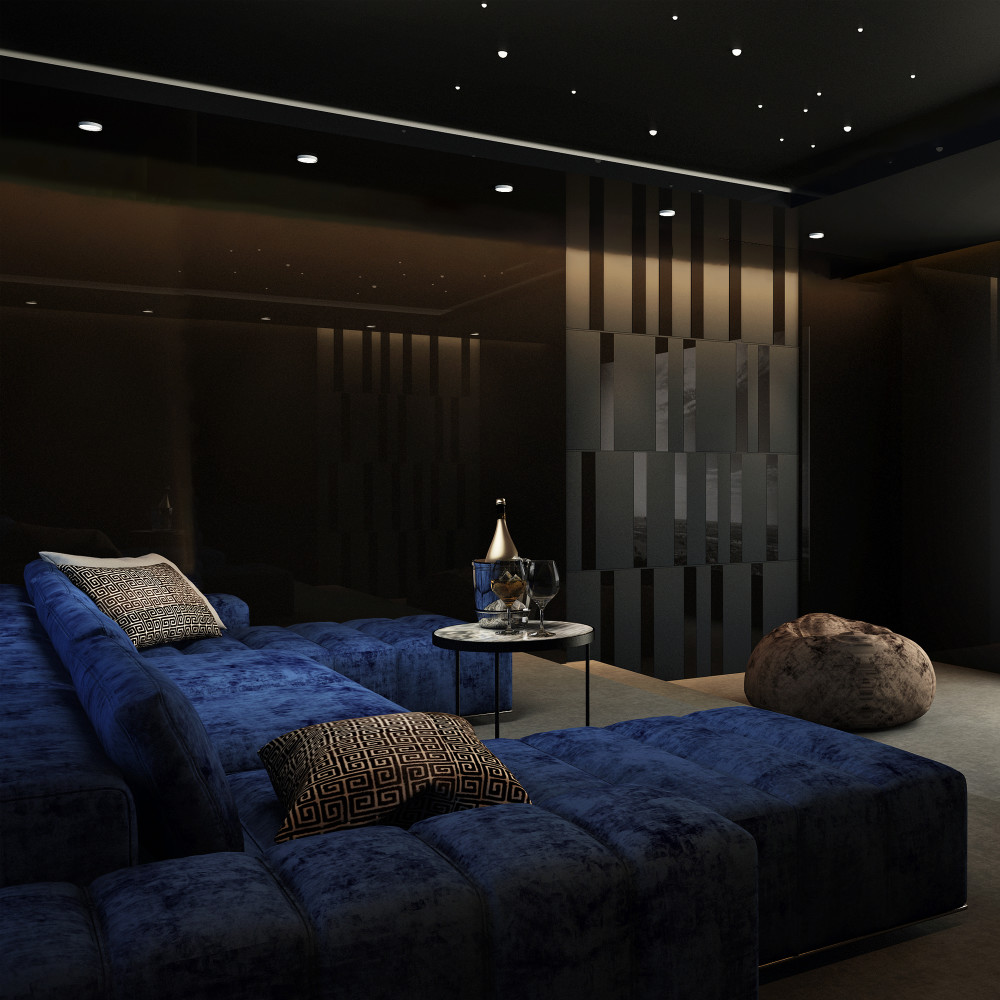

This aluminium profile can accommodate any IP20 or IP65 LED strip ranging between 4mm and 12mm width. It is particularly suitable for a wide range of discreet lighting applications such as hallways, home cinemas, theatres, exhibition halls and venues.
Accessory White Frosted diffuser available to purchase separately.
- Product Feature 1:
- Black Frosted Diffuser
- Product Feature 2:
- Suitable for up to 14mm width Integral LED IP20/IP65 Strips or 12mm width IP67 Integral LED Strips
- Product Feature 3:

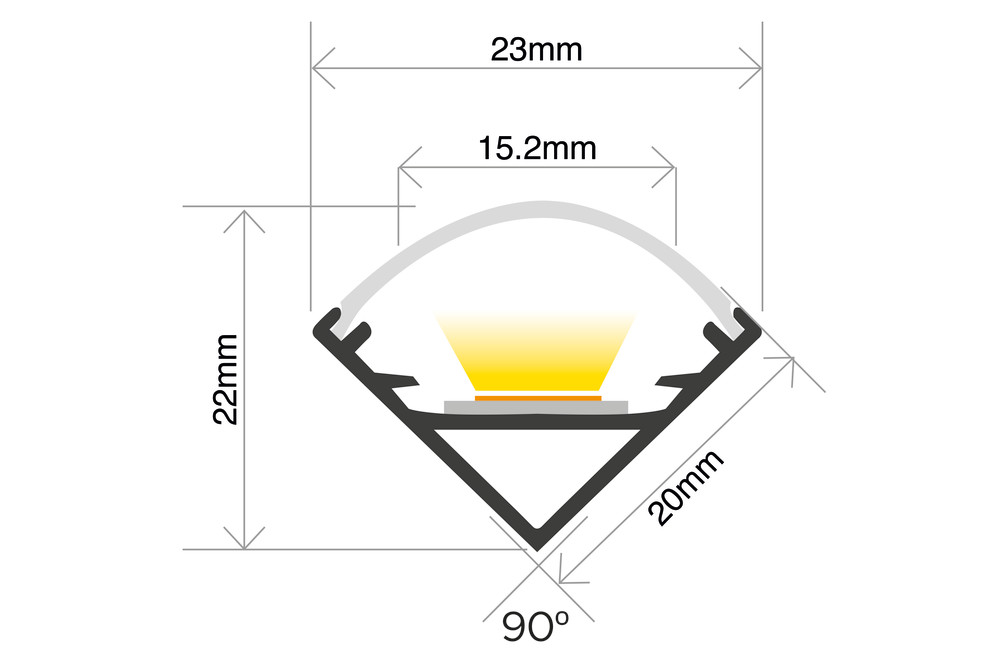

- 2000(L) x (90 degree) 20x20mm
- Product Feature 4:
- Complete with 2 endcaps (1 with cable entry and 1 without cable entry) and 4 mounting brackets
- Availability:
-
100+
More stock due in on 10/07/2025
Suggested products
Details
| Barcode | 5055788287261 |
|---|---|
| Quick Order Code | 66535 |
| Category | Strips |
| Range Name | Corner |
| Product Type | Aluminium Profiles |
| Warranty (Years) | 1 |
Physical Data
| Product Length (mm) | 2000 |
|---|---|
| Product Depth (mm) | 20 |
| Product Width (mm) | 20 |
| Product Weight (g) | 398 |
| Material | Aluminium, PC |
| Max Strip Width (mm) | 14 |
| Mounting Type | Corner |
| Placement / Application | Decorative indoor |
| Profile Height (in mm) | 16 to 24 |
| Profile Width | 19 to 25.4 |
| Length (m) | 2 |
Light Data
Electrical Data
Environmental
| CE RoHS | Yes |
|---|---|
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Max Strip IP Rating | 67 |
| Profile IP Rating | IP20 |
Packaging
| Barcode | 5055788287261 |
|---|---|
| Package Weight (g) | 432 |
| Package Length (mm) | 2040 |
| Package Width (mm) | 20 |
| Package Depth (mm) | 20 |
Safety Guide
