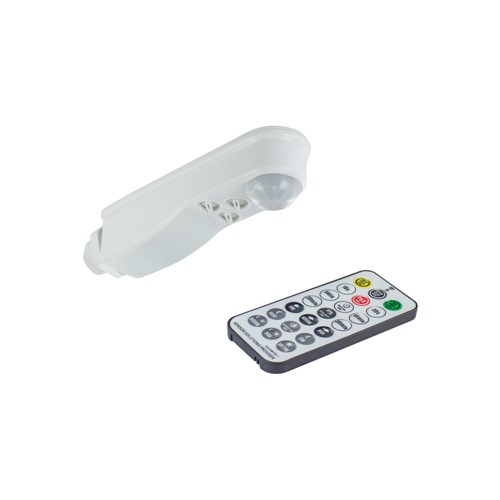

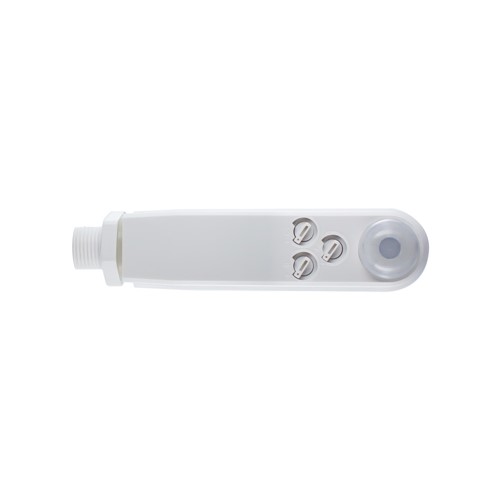

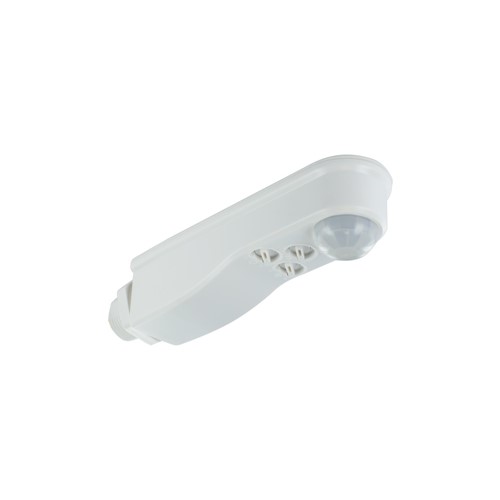

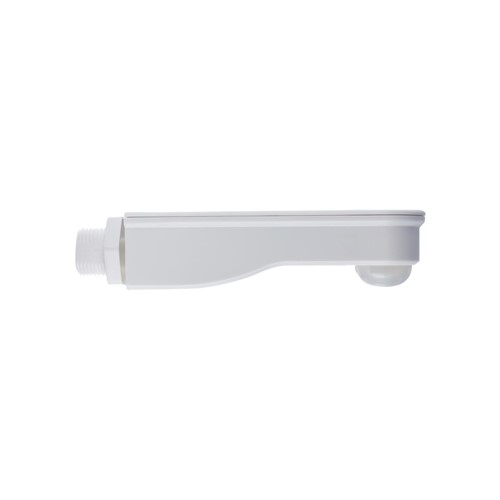

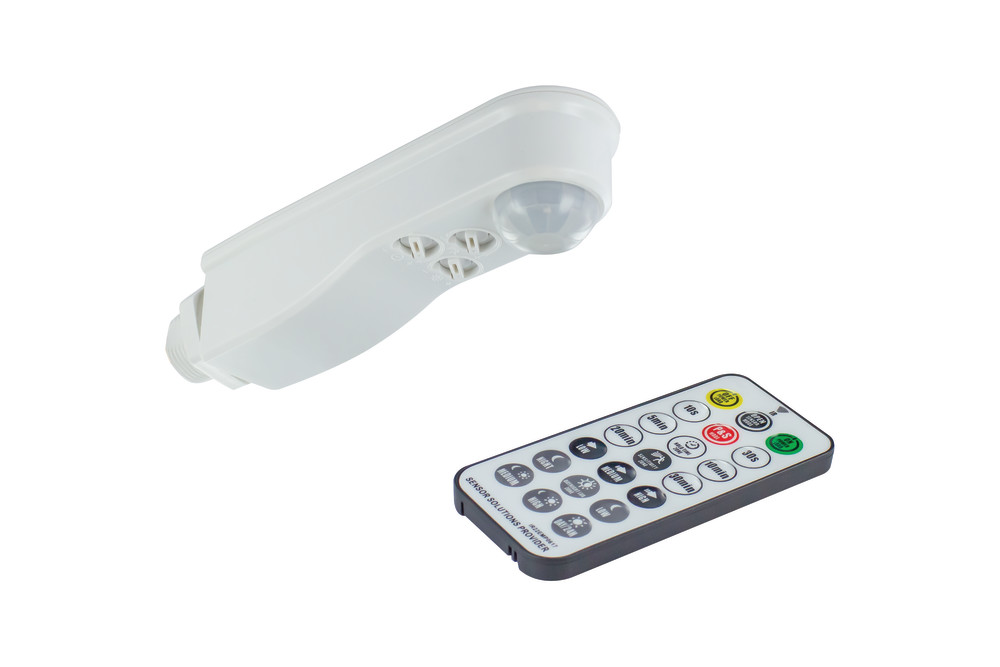

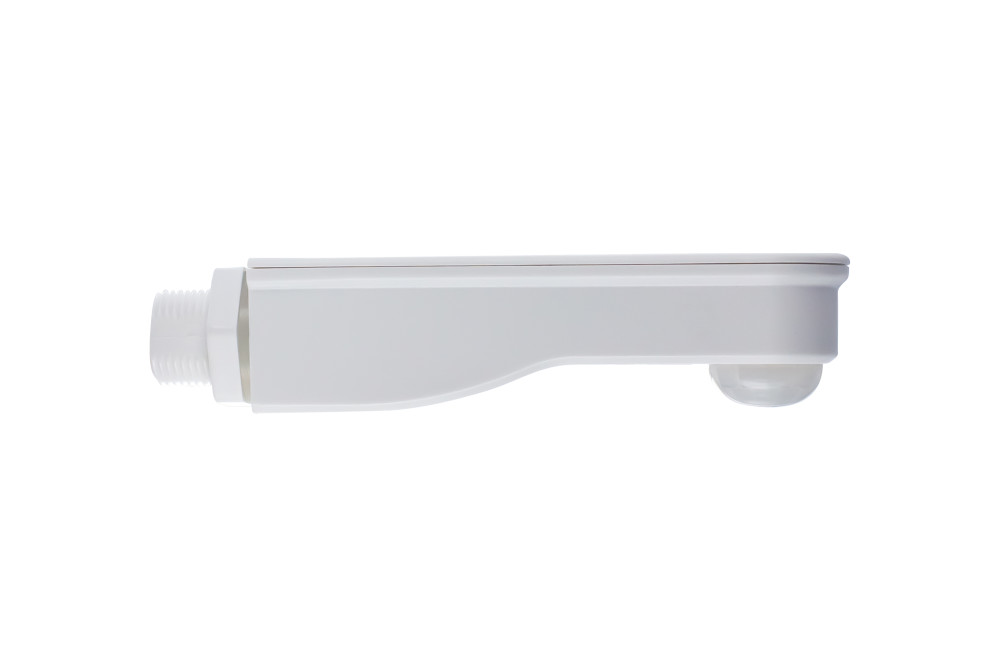

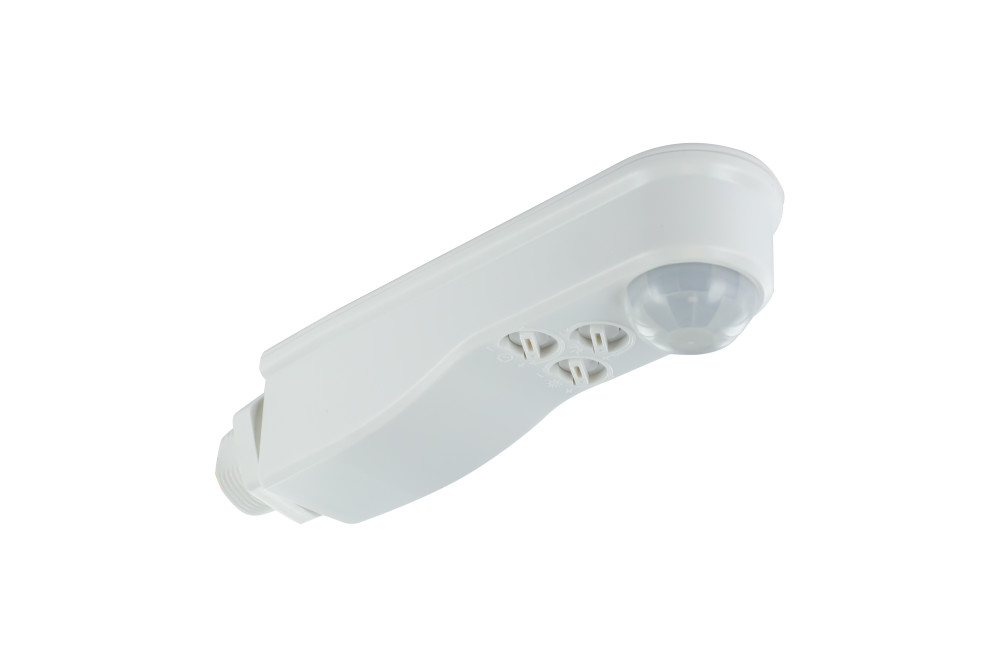

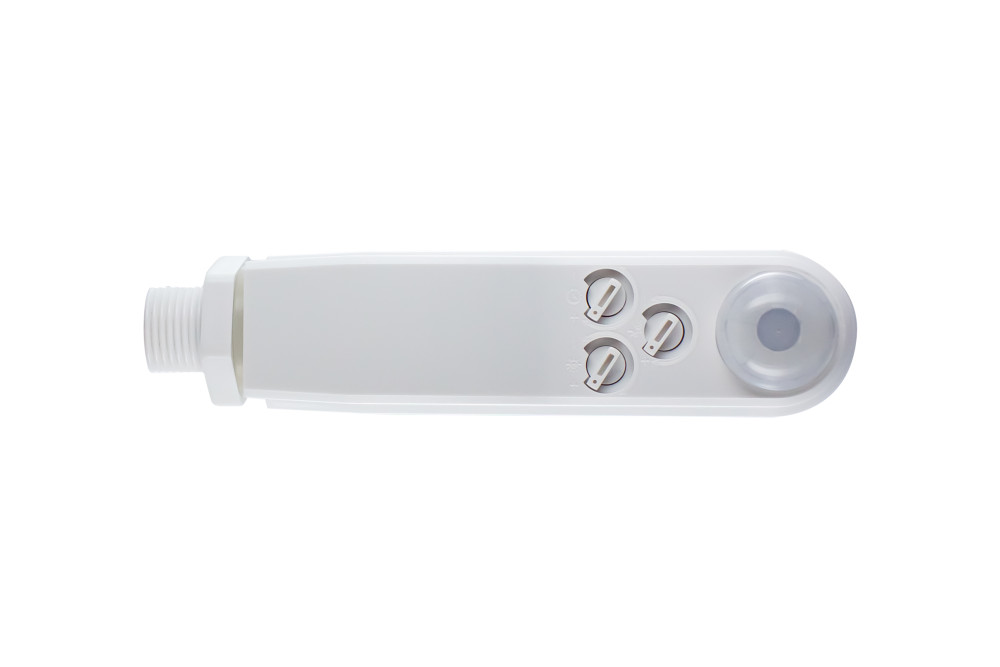

PIR SENSOR BATTEN MOUNT ON/OFF CONTROL 360DEG SINGLE DETECTOR 10M RANGE IP65 WHITE 110-240VAC INPUT + HANDHELD REMOTE 1200W MAX
Part Number:
ILSENPIR010
Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Batten mount
- Product Feature 2:
- 360deg detection
- Product Feature 3:
- Hold time: 10S, 30S, 5MIN,10MIN, 20MIN, 30MIN
- Product Feature 4:
- Sensitivity: Low ~2m, Medium ~6m, High ~12m
- Product Feature 5:
- Daylight threshold: <10LUX, <25LUX, <250LUX, <500LUX, 24H
- Product Feature 6:
- Built-in Photocell function for Dusk-to-Dawn operation
- Product Feature 7:
- 8-hour Override mode
- Product Feature 8:
- Rated Load: 1200W Incandescent / 300W LED
- Availability:
-
100+
More stock due in on 26/02/2026
Suggested products
Details
| Barcode | 5055788288343 |
|---|---|
| Quick Order Code | 521664 |
| Category | Sensors |
| Range Name | Sensors |
| Product Type | Sensors |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Matt White |
| Features | PIR Sensor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 138 |
|---|---|
| Product Depth (mm) | 31 |
| Product Width (mm) | 33 |
| Product Weight (g) | 74.4 |
| Mounting Type | Batten Surface mount |
Light Data
Electrical Data
| Input Voltage (V) | 220-240 |
|---|---|
| Output Voltage (V) | 220-240 |
| Electric Current | AC |
Environmental
| IP Rating (Ingress Protection) | IP65 |
|---|
Packaging
| Barcode | 5055788288343 |
|---|
