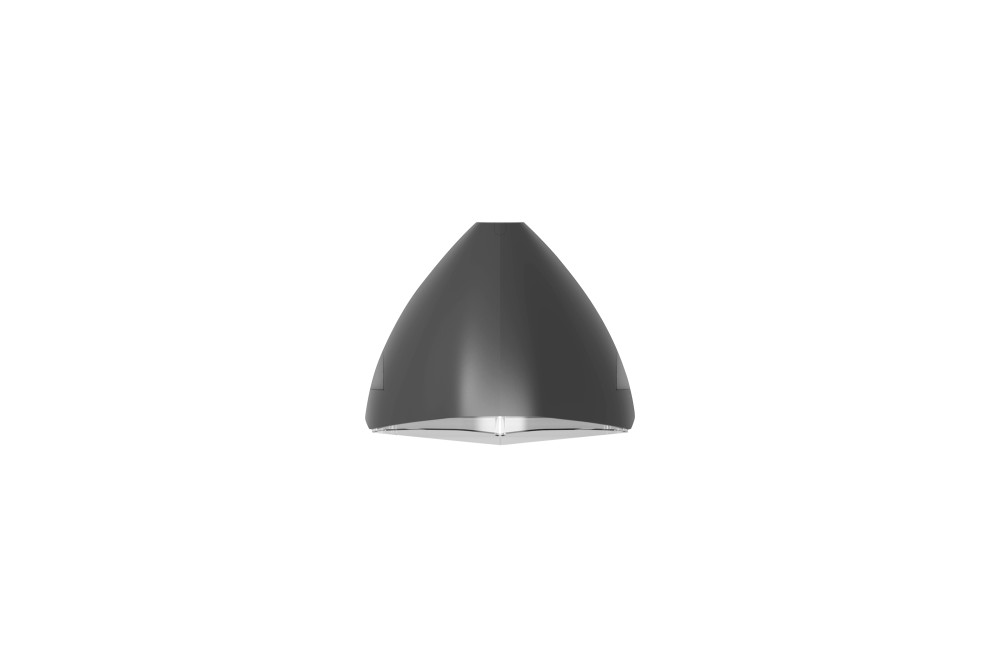

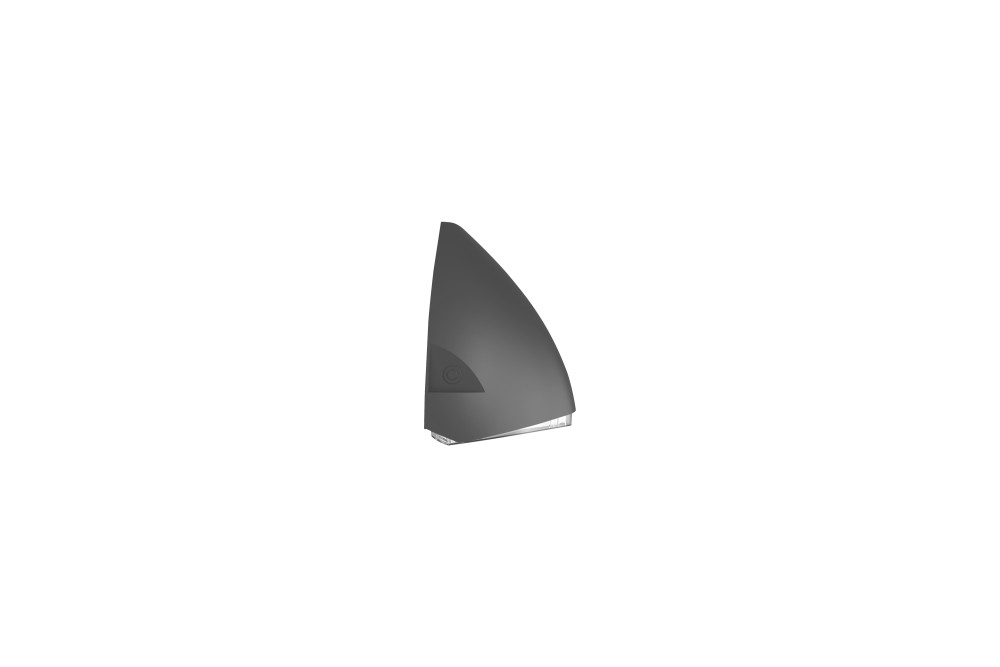

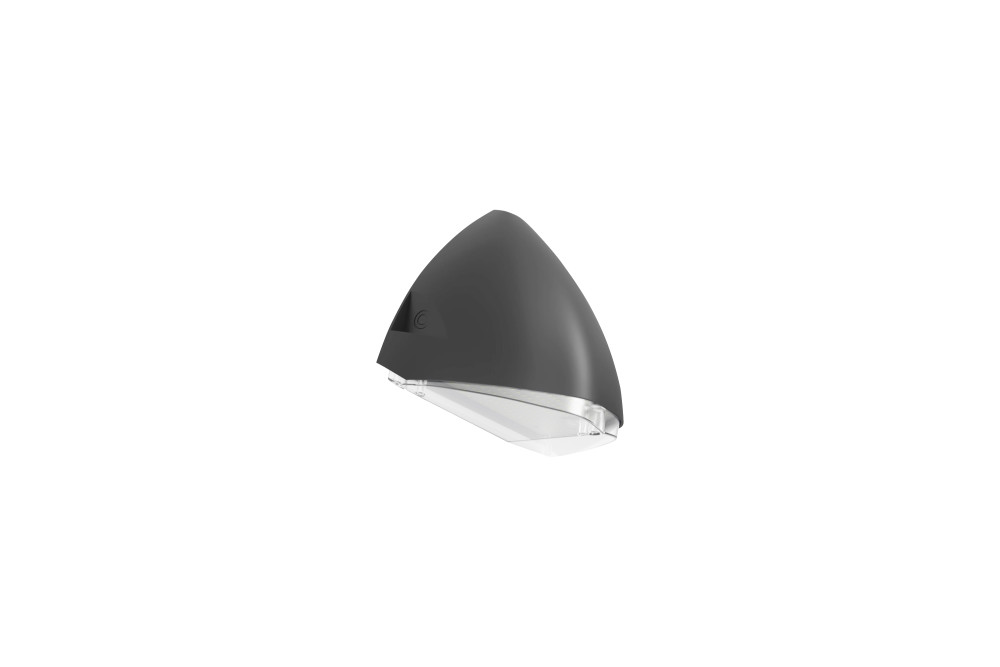

OUTDOOR NANO COBRA WALL PACK 5W 635LM CCT SELECTABLE 3000K/4000K 127LM/W ANTHRACITE RAL7016

Part Number:

ILWPE002

The Integral LED Cobra Nano Anthracite Wall Pack offers a sophisticated modern look with superior practicality. IP65 weatherproofing and IK10 impact-resistance make it perfect for outdoor applications, whilst the die-cast aluminium body provides a premium finish.

Designed for quick and easy installation, this rugged luminaire is ideal for perimeter lighting as well as pedestrian and vehicle access areas in residential, commercial and industrial environments.

Providing 120lm/W, this small yet efficient luminaire offers 3000K/4000K CCT selection.

Product Feature 1:
Stylish and contemporary design
Product Feature 3:
Hard-wearing and weatherproof
Product Feature 4:
Cast-aluminium body
Product Feature 5:
130lm/W
Product Feature 8:
IK10
Availability:
12

Call us on 0208 451 8700 to check the next availability

Barcode 5055788277774
Category Luminaires
Range Name Cobra
Product Type Outdoor
Product Body Finish Anthracite
Market Segment Outdoor
Finish Anthracite
Features Hard-wearing and weatherproof
Warranty (Years) 5
Emergency Option No
Product Length (mm) 241.7
Product Depth (mm) 76
Product Width (mm) 150
Product Weight (g) 1170
Optic Polycarbonate diffuser
Material ADC12 Aluminium
Construction Aluminium
Luminaire Fixing Wall
Mounting Type Rear Cable Entry
Placement / Application Outdoor
Luminous Flux in Lumens (lm) 635
Luminous efficacy (lm/W) 105
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 115
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 100000
Power Factor 0.95
Voltage Range (v) 100-277
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 1370
Package Length (mm) 255
Package Width (mm) 160
Package Depth (mm) 100

Product Specification Sheet

Safety Guides

LDT Files

Installation Guides
