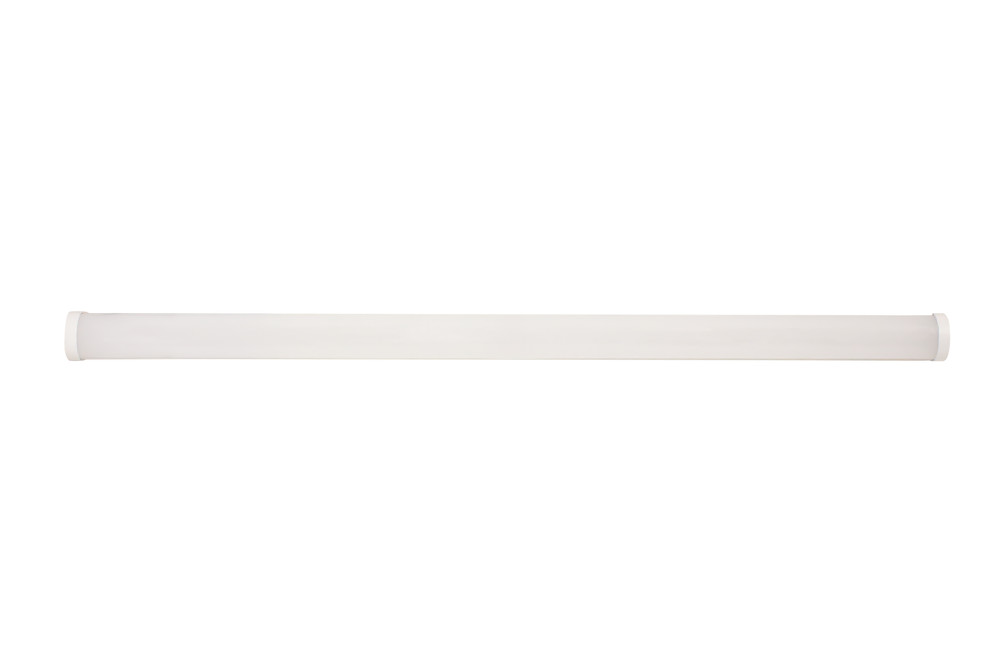

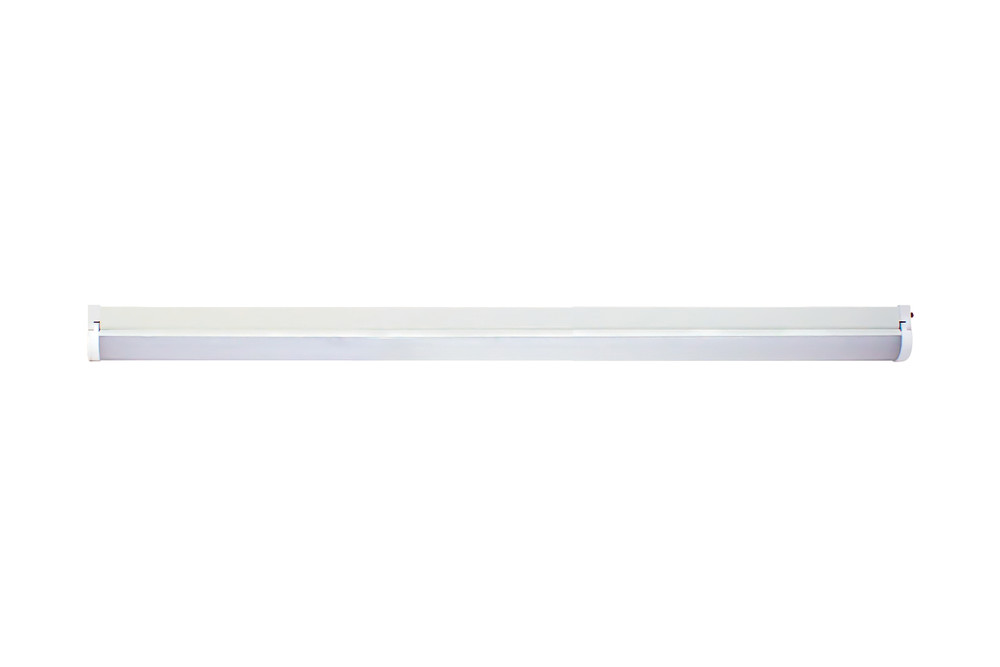

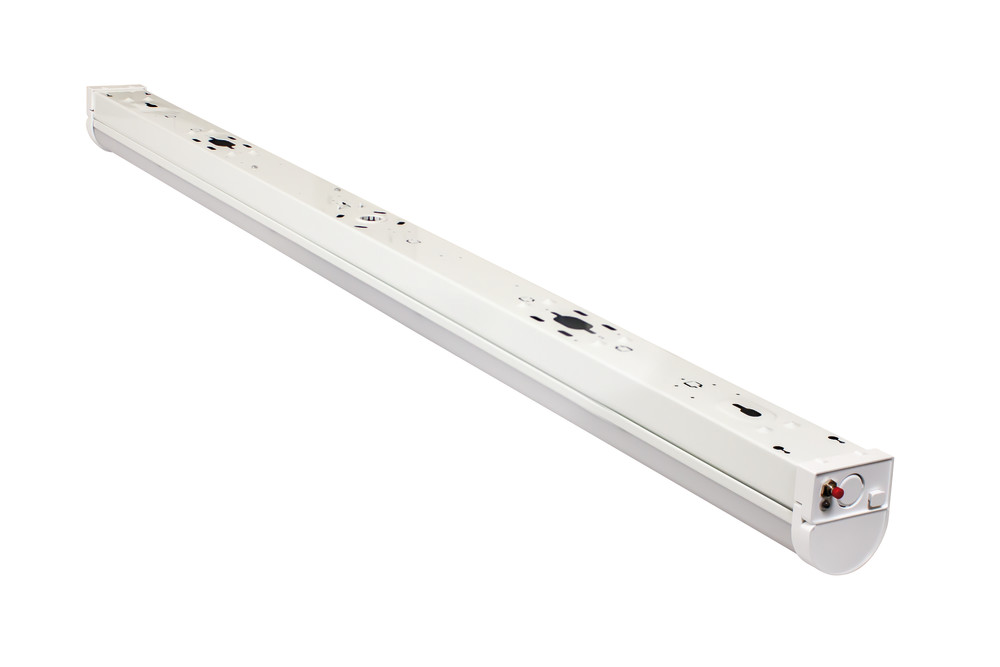

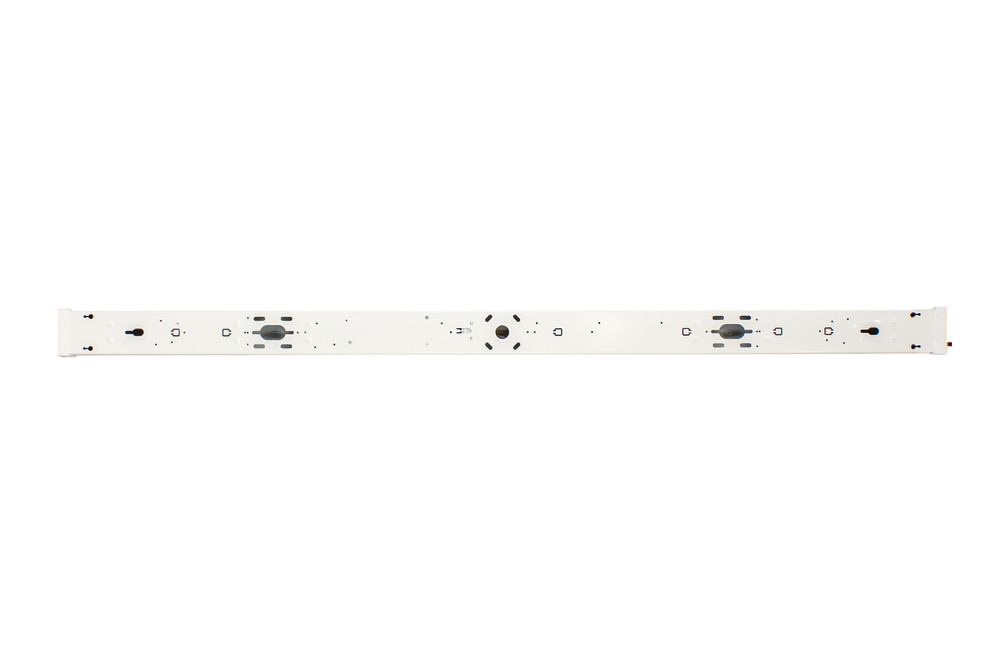

LIGHTSPAN T8 BATTEN 4FT TWIN EMERGENCY 3 HR 5600LM 43W 130LM/W 4000K 120 BEAM 1170mm LINKABLE NON-DIMM INTEGRAL

Part Number:

ILBTC052

Integral Lightspan Battens provide an efficient alternative to T8 fluorescent tube fittings. With their high lumen output, Lightspan battens are ideal for indoor commercial spaces that need bright task lighting and at up to 130lm/W they offer big energy savings compared to equivalent fluorescent fittings.

Product Feature 1:
5600lm
Product Feature 2:
Class I
Product Feature 3:
130lm/W
Product Feature 4:
3 Year warranty
Product Feature 5:
Emergency
Availability:
45

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 480690
Barcode 5055788248019
Category Luminaires
Range Name Lightspan
Type Twin
Product Type Battens
Product Body Finish Matt white
Market Segment Indoor commercial, Industrial, residential
Finish Matt White
Features Emergency Function
Warranty (Years) 3
Emergency Option Integrated
Size (in ft) 4ft
Emergency Category Battens
Linkable No
Product Length (mm) 1170
Product Depth (mm) 70
Product Width (mm) 60
Product Weight (g) 1250
Optic Polycarbonate diffuser
Material Polycarbonate, Aluminium
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Wall / Ceiling / Pendant / Conduit mounted
Mounting Type Rear & Side Cable Entry
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILBTC052_EU_label
Luminous Flux in Lumens (lm) 5600
Luminous efficacy (lm/W) 130
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 30000
Useful Lumens (lm) 5150
Power Consumption (W) 43
Power Factor 0.9
Voltage Range (v) 220-240
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
Emergency Type Non-Maintained
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK06
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 50
Package Weight (g) 1450
Package Length (mm) 1175
Package Width (mm) 68
Package Depth (mm) 79
