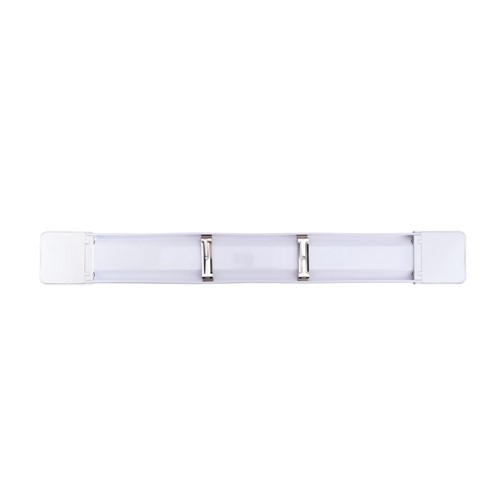

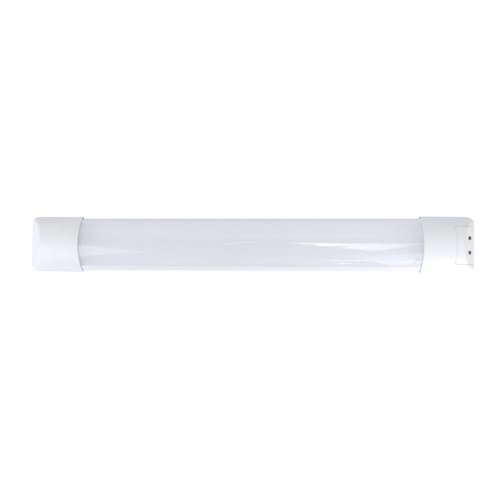

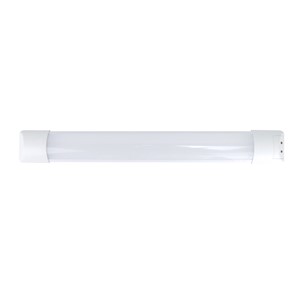

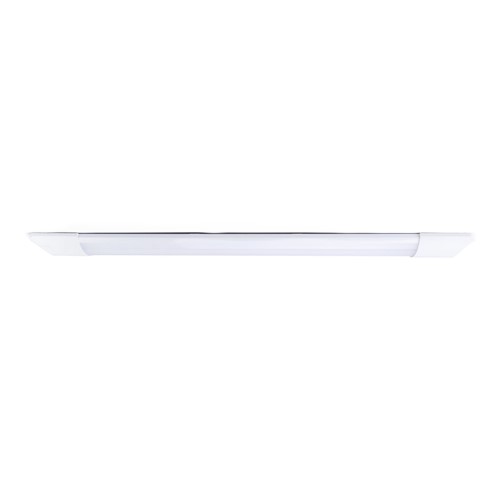

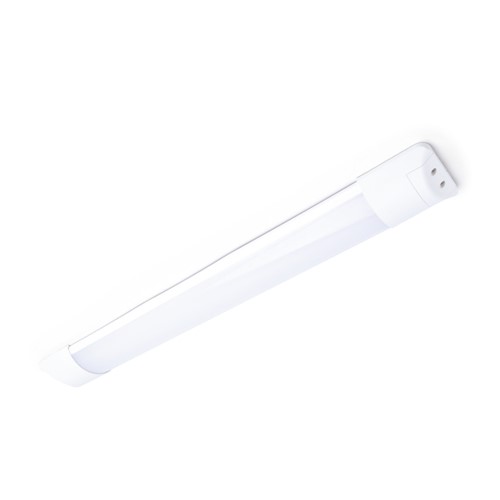

SLIM ECO IP20 BATTEN 3 CCT 2200LM 20W 3000/4000/6500K 120 BEAM 110LM/W 600MM 2FT NON-DIMM INTEGRAL

Part Number:

ILBTE002

The Integral LED Slim Eco Batten offers an affordable, easy to install and compact luminaire ideal for retrofits and installations in commercial, residential and other generalised applications.

With onboard CCT switching functionality offering 3 colour temperature options (3000K, 4000K, 6500K), sizes from 1ft to 6ft and a highly efficient output of 110lm/W, there is a Slim Eco batten to suit your next refurbishment project.

Product Feature 1:
2200lm
Product Feature 2:
CCT switchable
Product Feature 3:
Easy installation
Product Feature 4:
3 Year warranty
Availability:
50+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 596419
Barcode 5055788297314
Category Luminaires
Range Name Slim Eco
Type Single
Product Type Battens
Product Body Finish Matt white
Market Segment Indoor and Outdoor Commercial, Industrial, Residential
Finish Matt White
Features CCT Swtichable
Warranty (Years) 3
Emergency Option No
Size (in ft) 2ft
Linkable No
Product Length (mm) 600
Product Depth (mm) 24.5
Product Width (mm) 75.5
Product Weight (g) 145
Optic Polycarbonate diffuser
Material Polycarbonate
Construction PC extrusion
Bulb or Luminaire Shape Linear
Luminaire Fixing Wall/Ceiling mounted

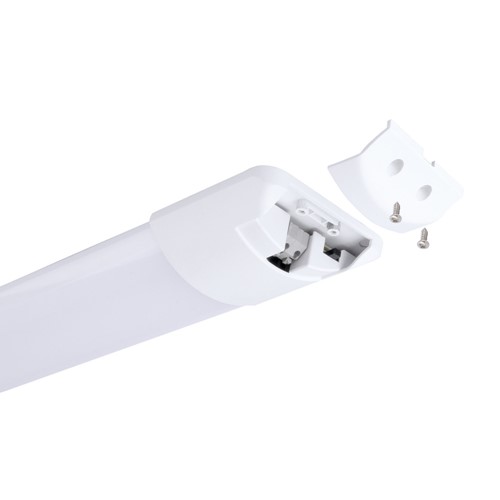

Mounting Type Side cable entry
Placement / Application Indoor and outdoor, General lighting
Luminous Flux in Lumens (lm) 2200
Luminous efficacy (lm/W) 110
Correlated Colour Temperature (CCT) (K) 3000/4000/6500
Colour Temperature 3000/4000/6500 - Warm White/Cool White/Cool Daylight
Colour Temperature Name Warm White / Cool White / Cool Daylight
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 25000
Switching Cycles 15000
Useful Lumens (lm) 2200
Power Consumption (W) 20
Power Factor 0.7
Voltage Range (v) 220-240
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK03
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Weight (g) 365
Package Length (mm) 640
Package Width (mm) 78
Package Depth (mm) 26
