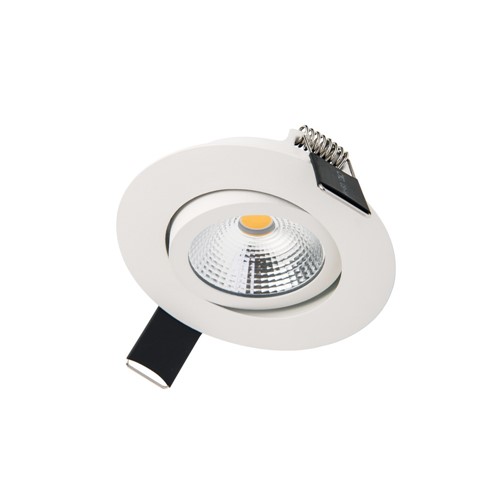

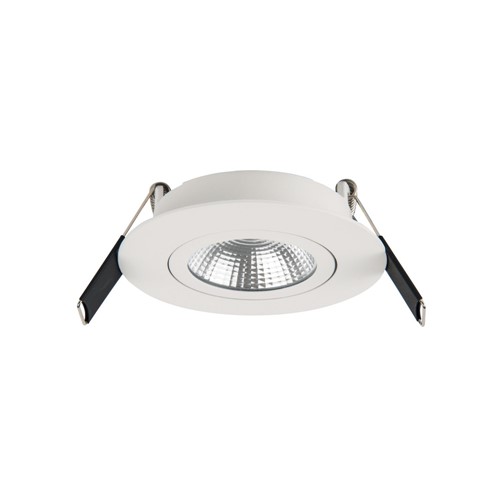

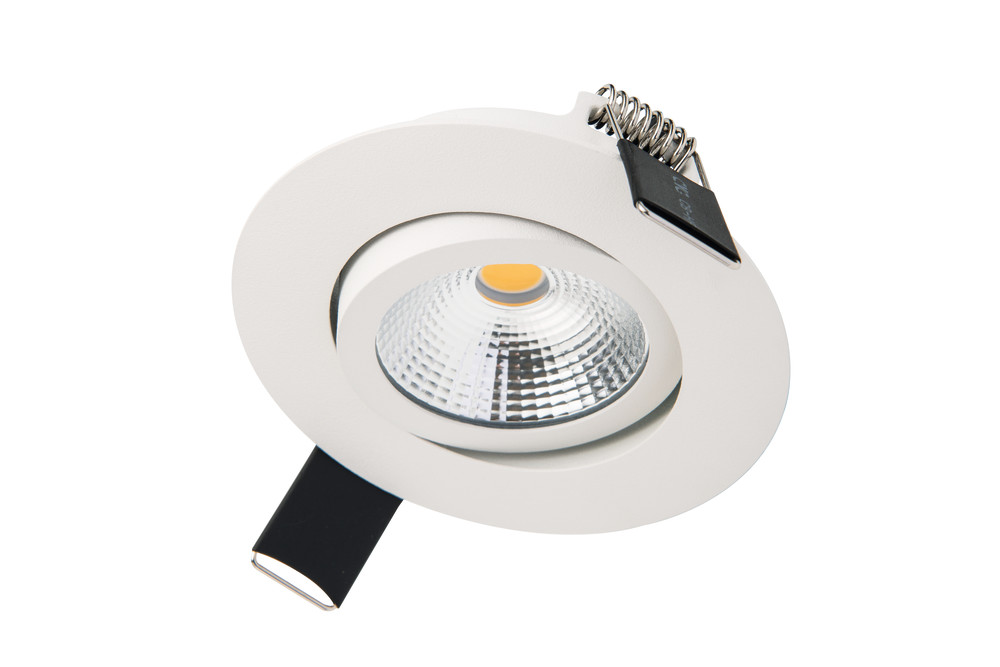

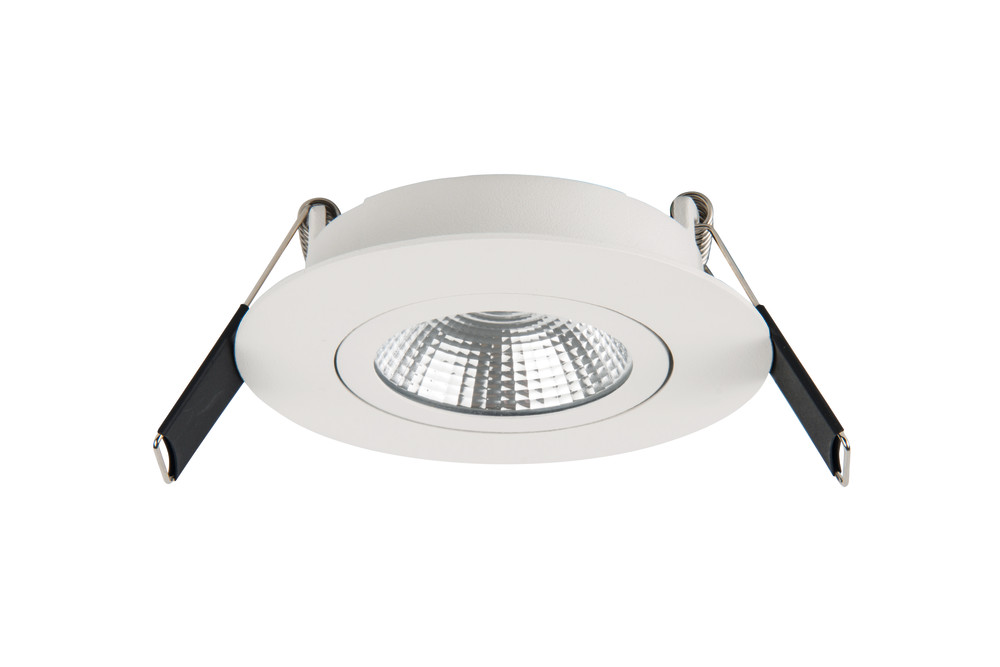

ULTRA SLIM TILTABLE DOWNLIGHT 65MM CUTOUT 6.5W 650LM 100LM/W 3000K 36 BEAM DIMMABLE WHITE INTEGRAL

Part Number:

ILDL65L001

The Lux Ultra Slim high-end tiltable and dimmable downlight range impresses by offering stylish high-quality finish, ultra-low profile height of only 27mm, a modern look topped with a very efficient performance. A tiltable angle of up to 25 Degrees is ideal for directing light on to features or placement into a sloped ceiling.

In addition to light output efficacy reaching up to 103lm/W, this ultra-slim downlight is available in cool white and warm white CCTs as well as a choice for four finishes for a contemporary look. The included tool-free, user-friendly loop-in/loop-out driver enables quick and easy installation. Achieve modern lighting designs by complementing the Lux Ultra Slim range with Integral Lux Fire downlights.

Product Feature 1:
65mm cut out
Product Feature 2:
Driver dimensions L95 x W45 x H29mm
Product Feature 3:
650lm
Product Feature 4:
36 Degrees Beam
Product Feature 5:
100lm/W
Product Feature 6:
3000K
Product Feature 7:
25 Degrees Tilt
Product Feature 8:
Dimmable
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Quick Order Code 947567
Barcode 5055788250036
Category Downlights
Range Name Lux Ultra Slim
Product Type LED Downlights
Product Body Finish Matt white
Market Segment Accent lighting
Finish Matt White
Fixed/Tiltable Tiltable
Warranty (Years) 3
Product Depth (mm) 27
Product Weight (g) 180
Diameter (mm) 83
Optic PMMA diffuser
Material Aluminium
Overall diameter (mm) 83
Cut Out Diameter (mm) 65
Luminaire Fixing Recess mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILDL65L001_EU_label
Luminous Flux in Lumens (lm) 650
Luminous efficacy (lm/W) 100
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature 3000K - Warm White
Colour Temperature Name Warm White
Beam Angle 36
Colour Rendering Index (CRI) 80
Instant on (Less than 1 second) Yes
LED Type Chip on board (COB)
Lifetime (hours) 50000
Switching Cycles 100000
Power (W) 6.5
Power Consumption (W) 6.5
Voltage Range (v) 220-240VAC 50/60Hz
Dimming Dimmable
Driver Included Yes
EN EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified Yes
EN EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified Yes
CE RoHS Yes
New Energy Rating F
EU Luminaire L
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP40
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 210
Package Length (mm) 125
Package Width (mm) 110
Package Depth (mm) 50
