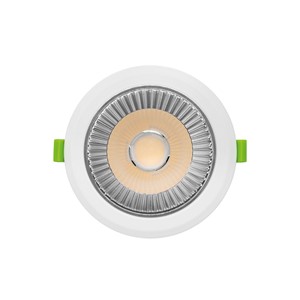

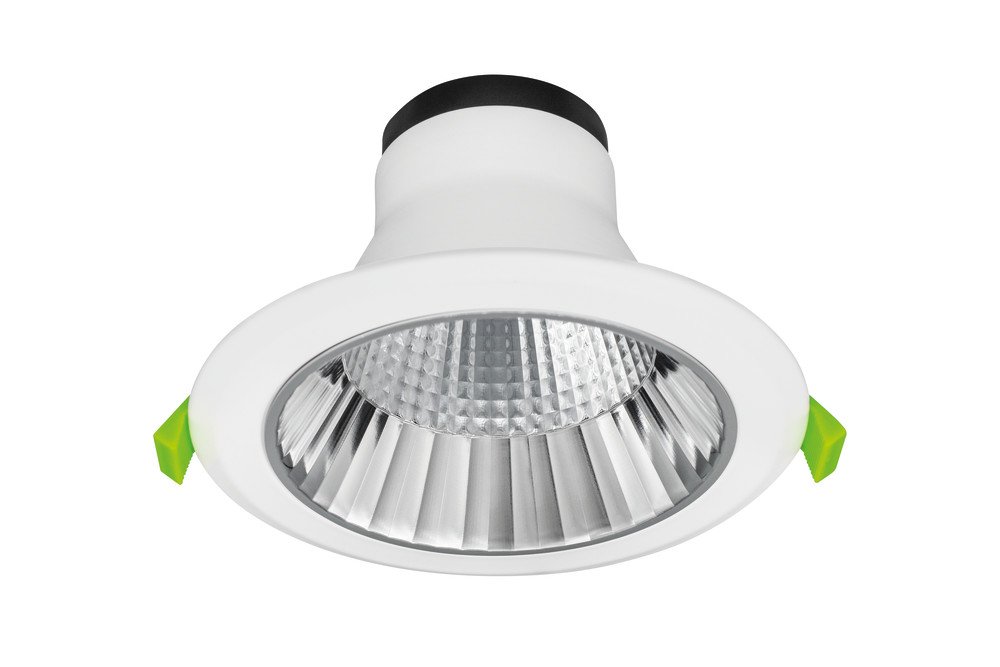

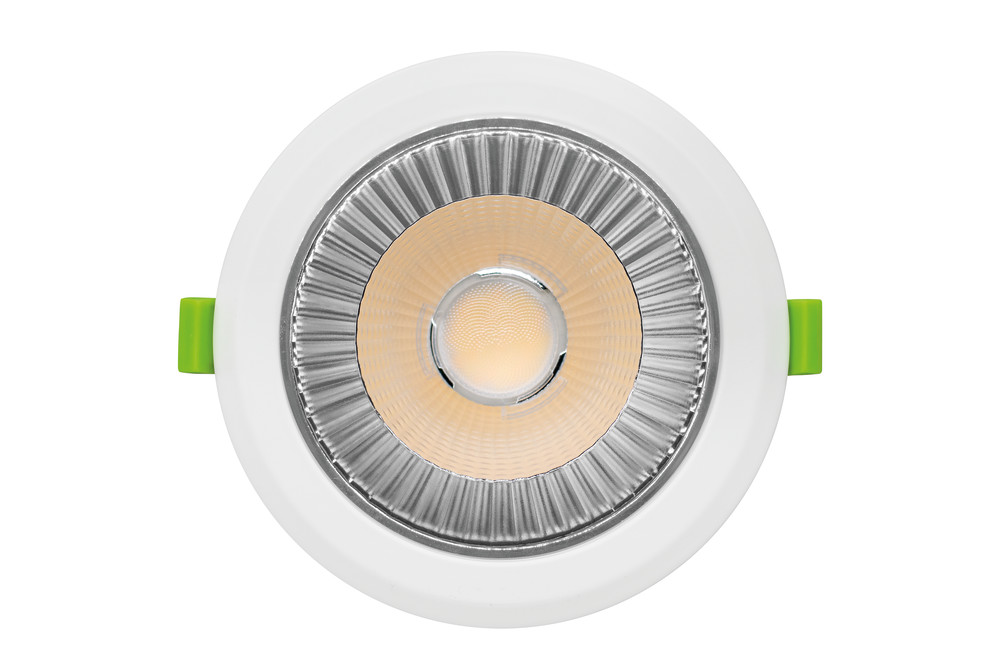

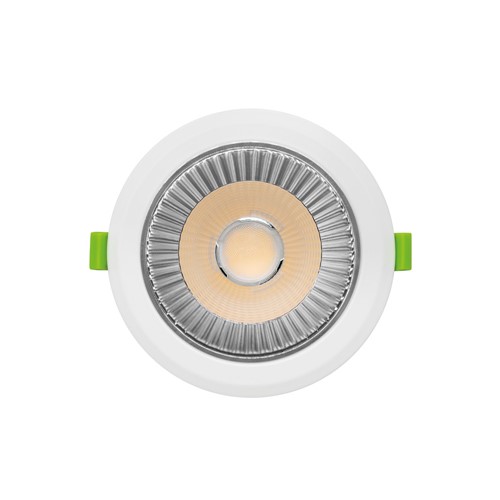

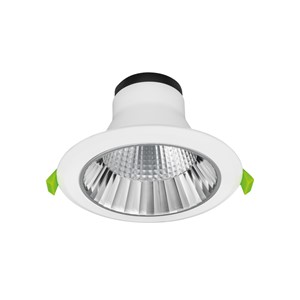

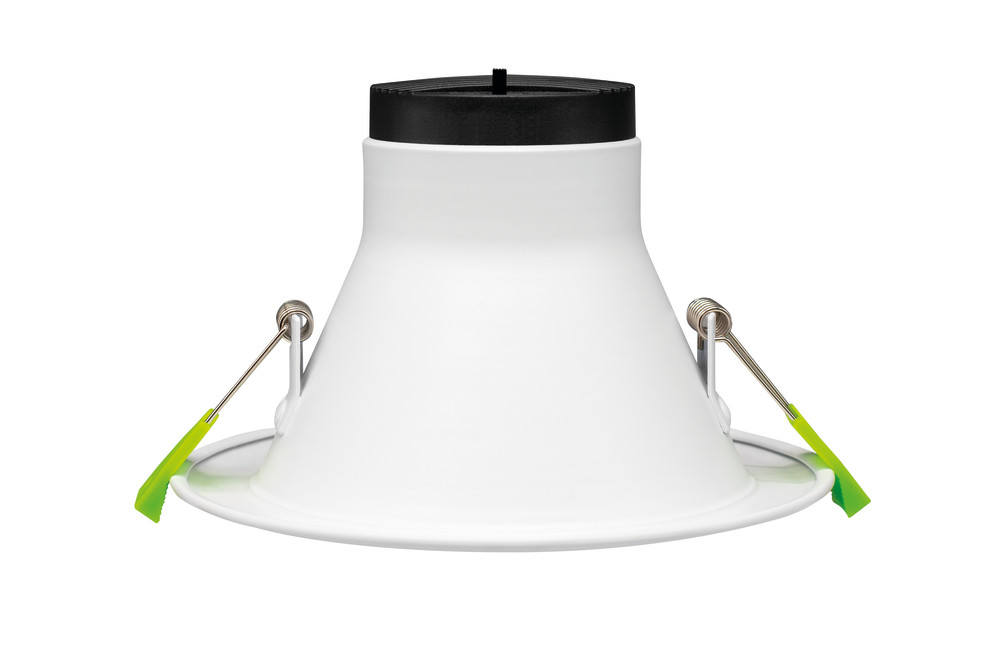

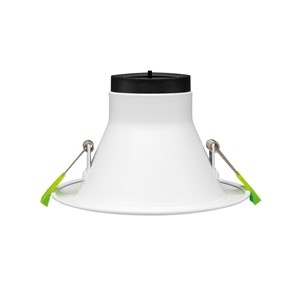

RECESS PLUS 120MM CUTOUT 18W 2160LM 120LM/W CCT ADJUSTABLE 3000/4000K 55 BEAM IP54 36VDC 450MA WITHOUT DRIVER

Part Number:

ILDL145RP002

Recess Plus is a range of high-performance LED downlights with outstanding efficiency, switchable CCT (3000K/4000K) and extra-long lifetime, ideal for replacement of traditional recessed CFL downlights. With an IP54 rating out of the box they are perfect for a wide range of applications without the need to add accessories. The deep-recessed facetted reflector design ensures a low-glare (<19 in a lighting scheme).

This range of well-finished and lightweight downlights are suitable for placement in Zones 1 and 2 of bathrooms/washrooms, outdoor sheltered areas as well as common indoor spaces. The included easy to use push-fit connector provides for a quick and safe installation. Compatible LED drivers available to allow for DALI, 1-10V, Triac, Switch Dim or Wireless control to suit the project.
Product Feature 1:
120mm cut out
Product Feature 2:
2160lm
Product Feature 3:
55 Degrees Beam
Product Feature 4:
120lm/W
Product Feature 5:
CCT Switchable 3000K/4000K
Product Feature 6:
IP54
Product Feature 7:
Driver Not included
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code '072463
Barcode 5055788260967
Category Downlights
Range Name Recess Plus
Product Body Finish Matt white
Market Segment Commercial indoor
Fixed/Tiltable Fixed
Warranty (Years) 5
Emergency Option Optional Conversion Kit
Product Depth (mm) 90
Product Weight (g) 320
Diameter (mm) 145
Optic Facetted Aluminium
Material Aluminium, Steel, PC Diffuser
Overall diameter (mm) 145
Construction Pressed Steel
Cut Out Diameter (mm) 120
Bulb or Luminaire Shape Round
Luminaire Fixing Wall/Ceiling mounted
Placement / Application Indoor, General Lighting
Spot Type SMD with "COB like effect"
Energy Efficiency Label (Image) ILDL145RP002_EU_label
Luminous Flux in Lumens (lm) 2160
Luminous efficacy (lm/W) 120
Correlated Colour Temperature (CCT) (K) 3000 - 4000
Colour Temperature CCT Switch
Colour Temperature Name Warm White / Cool White
Beam Angle 55
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 25000
Unified Glare Rating (UGR) < 19
Power Consumption (W) 18
Power Factor 0.9
Voltage Range (v) 220-240
Amperage (mA) 450
Dimming Dimmable with dimmable drivers and compatible dimmers
Driver Included No
Electric Current DC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating D
EU Luminaire L
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP54
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Weight (g) 350
Package Length (mm) 150
Package Width (mm) 150
Package Depth (mm) 105

Product Specification Sheet

Safety Guides

Installation Guides

LDT Files
