EVOFIRE FIRE RATED DOWNLIGHT 70MM CUTOUT IP65 SATIN NICKEL RECESSED +GU10 HOLDER & INSULATION GUARD INTEGRAL

Part Number:

ILDLFR70E004

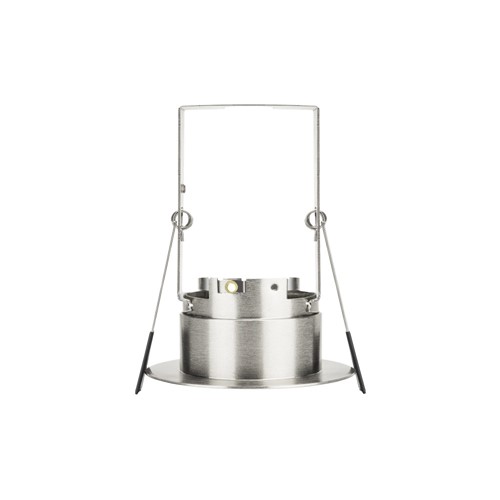

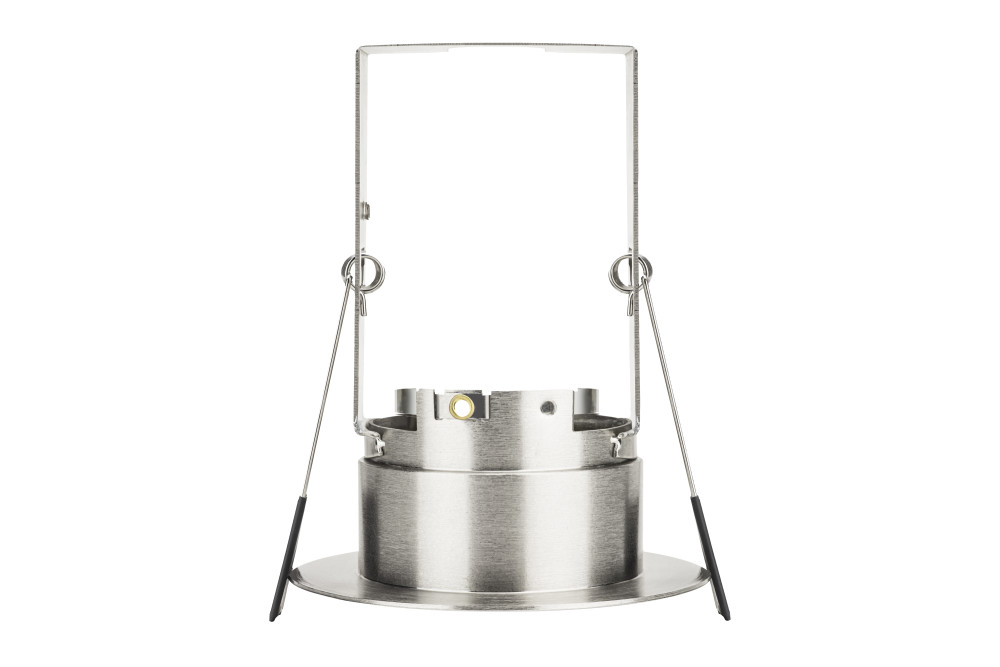

The Evofire Fire Rated Downlight is a safe and attractive fitting for a GU10 or MR16 LED lamp. The fully open design of the Evofire does not conceal your lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance. Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of your lamps.

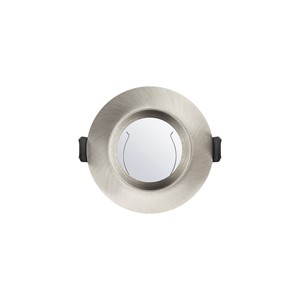

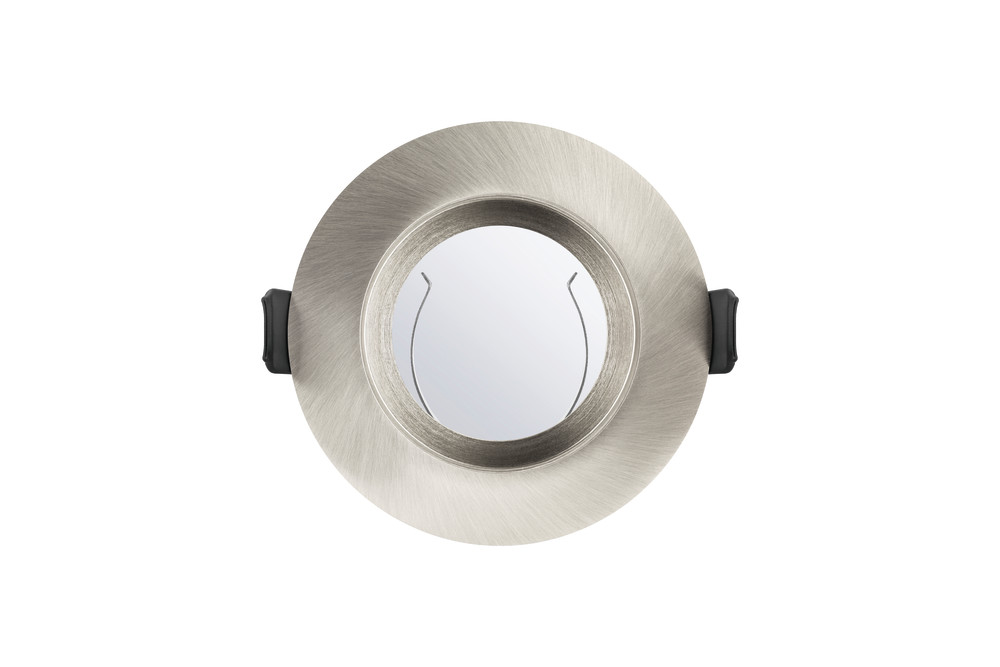

This recessed model holds the lamp higher in the ceiling, resulting in a designer look with lower glare. The 1mm 'blend-in' bezel fits almost flush with the ceiling, making this one of the most subtle looking fire rated downlight solutions available.

This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.

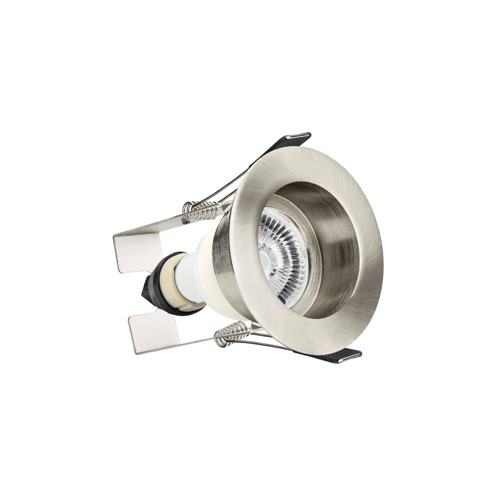

Evofire shown with Real Colour GU10 LED lamp (sold separately).

Product Feature 1:
Evolutionary Fire Rated fitting designed by Integral LED
Product Feature 2:
Developed in the UK - Patent GB2557957
Product Feature 3:
Fire Rating 30/60/90 minutes - Tested in UKAS Accredited Lab
Product Feature 4:
Ultra-thin 1mm 'blend-in' bezel
Product Feature 5:
Easy to install Loop-in/Loop-out piano-key style terminal block
Product Feature 6:
Supplied with GU10 holder
Availability:
417

Call us on 0208 451 8700 to check the next availability

Quick Order Code 722676
Barcode 5055788236573
Category Downlights
Range Name Evofire
Product Type Fire Rated
Product Body Finish Satin Nickel
Market Segment Commercial indoor, Residential indoor
Finish Satin Nickel
Features With Insulation Guard
Fixed/Tiltable Fixed
Warranty (Years) 3
Product Depth (mm) 109
Product Weight (g) 177
Diameter (mm) 85
Material Steel, Glass
Overall diameter (mm) 85
Construction Pressed Steel, Glass
Cut Out Diameter (mm) 70
Bulb or Luminaire Shape Round Recessed
Luminaire Fixing Recessed
Placement / Application Indoor, General Lighting
Fire Rating (mins) 30, 60, 90
Insulation Guard Yes
CE RoHS Yes
IP Rating (Ingress Protection) IP65
Package Weight (g) 192
Package Length (mm) 90
Package Width (mm) 90
Package Depth (mm) 130

Product Specification Sheet

Safety Guides

Installation Guides

Test Reports
