RECEIVER WITH REMOTE BUTTON RGB 12-24V CONSTANT VOLTAGE 108W(12V) AND 216W(24V) INTEGRAL

Part Number:

ILRC002

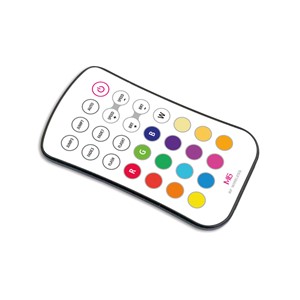

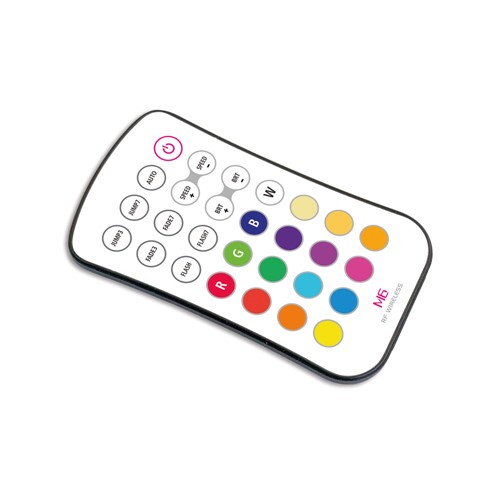

This RGB colour RF (Radio Frequency) receiver and remote control can be used with Integral RGB colour changing strips. With the RGB colour changing remote control, you can easily change your strip colour by choosing 16 static colours or 6 dynamic light modes, control the brightness and change the speed when choosing the dynamic light mode. Pressing the loop play button allows you to play the 6 dynamic light modes continuously. An easy-to-follow installation guide can be downloaded from our website.

Product Feature 1:
Suitable for controlling RGB colour changing strip
Product Feature 2:
Max 50M Remote Distance
Product Feature 3:
DC12-24V Power Input
Product Feature 4:
3A x 3 channels Max 9A Current Load
Product Feature 5:
Max 108W (12V) / 216W (24V) Power Output
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 216615
Barcode 5055788208143
Category Strips
Range Name RGB
Product Type Controllers for strips
Warranty (Years) 5
Product Weight (g) 89
Material PCB, Plastic Shell
Handheld or Wall Mount Handheld
Zones 1
Voltage Range (v) 45627
Dimming Dimmable
Driver Included No
Electric Current DC
EN EN-60950-1
LVD Certified Yes
EN EN-60950-1
LVD Certified Yes
CE RoHS Yes
Lowest Operating Temperature (°C) -30
Maximum Operating Temperature (°C) 55
Package Weight (g) 135
Package Length (mm) 200
Package Width (mm) 132
Package Depth (mm) 22

Product Specification Sheet

Safety Guides

Installation Guides
