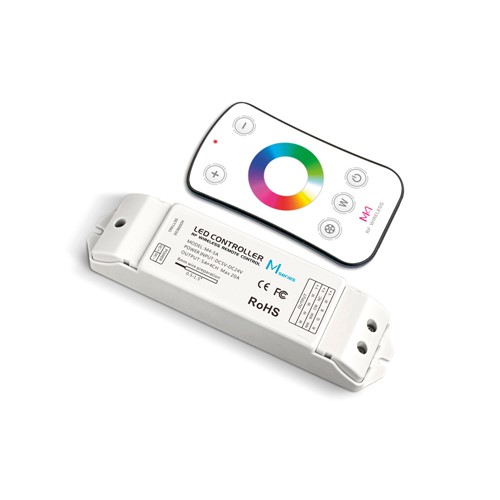

RF RECEIVER AND REMOTE TOUCH RGBW 5-24V CONSTANT VOLTAGE 100W(5V) AND 240W(12V) AND 480W(24V) INTEGRAL

Part Number:

ILRC007

This RGBW colour RF (Radio Frequency) receiver and touch remote control can be used with Integral RGBW colour changing strips. With the RGBW colour changing remote control, you can easily change the strip colour by choosing the colour area on the central touch circle or pressing the mode button for 12 colour modes, control the brightness and change the speed when choosing the dynamic light mode. You also can control the 'White' colour chip individually by pressing the 'W' button. An easy-to-follow installation and operating guide can be downloaded from our website.

Product Feature 1:
Suitable for controlling RGBW colour changing strip
Product Feature 2:
Max 50M Remote Distance
Product Feature 3:
DC5-24V Power Input
Product Feature 4:
5A x 4 channels Max 20A Current Load
Product Feature 5:
Max 100W (5V) /240W (12V) / 480W (24V) Power Output
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 975658
Barcode 5055788216896
Category Strips
Range Name RGBW
Product Type Controllers for strips
Warranty (Years) 5
Product Weight (g) 167
Material PCB, Plastic Shell
Handheld or Wall Mount Handheld
Zones 1
Voltage Range (v) 45413
Dimming Dimmable
Driver Included No
Electric Current DC
EN EN-60950-1
LVD Certified Yes
EN EN-60950-1
LVD Certified Yes
CE RoHS Yes
Lowest Operating Temperature (°C) -30
Maximum Operating Temperature (°C) 55
Package Weight (g) 225
Package Length (mm) 227
Package Width (mm) 155
Package Depth (mm) 30

Product Specification Sheet

Safety Guides

Installation Guides
