EVO LED PANEL LIGHT 600X600 3600LM 30W 4000K TPA UGR<19 BACKLIT NON-DIMM 120 LM/W INTEGRAL

Part Number:

ILP6060B036

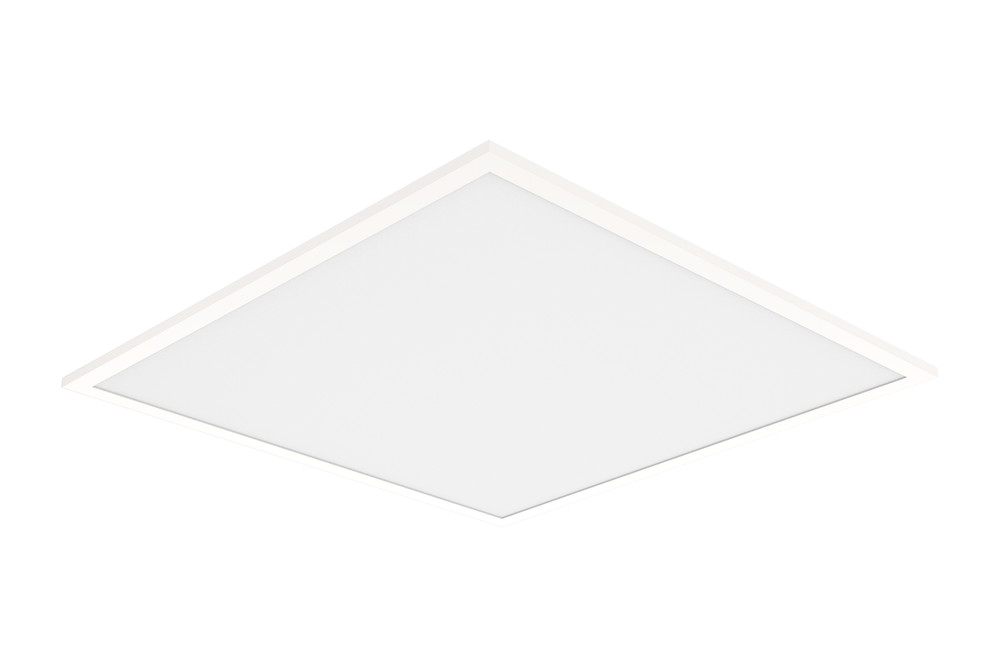

This is a 30W, 3600lm 600x600 Integral LED Evo panel. It delivers a uniform white light across the whole of its surface with a diffuser that is TP(a) rated and will help acheive UGR<19 . The high level of efficacy (120lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels.
Product Feature 1:
Cool White
Product Feature 2:
3600 Lumens
Product Feature 3:
120lm/w
Product Feature 4:
TP(a) rated difuser
Product Feature 5:
5 Year Warranty

For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information

Availability:
13

More stock due in on 09/10/2024

Suggested products

Quick Order Code 594510
Barcode 5055788253129
Category Panels
Range Name Evo
Product Type 600 x 600
Product Body Finish Matt white
Market Segment Commercial indoor
Features UGR 19
Warranty (Years) 5
Emergency Option Optional Conversion Kit
Emergency Category Panels
Product Length (mm) 595
Product Depth (mm) 32
Product Width (mm) 595
Product Weight (g) 2000
Optic Opal diffuser
Material Aluminium, Steel, PS Diffuser
Construction Aluminimum backplate and frame
Luminaire Fixing Recessed in ceiling grid, surface mounted, or suspended (additional surface mounted or suspention kit requied)
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILP6060B036_EU_label
Luminous Flux in Lumens (lm) 3600
Luminous efficacy (lm/W) 120
Peak Intensity (Cd) 1730
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool Whte
Beam Angle 90
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Lighting Method Back-lit
Switching Cycles 25000
Power (W) 30
Power Consumption (W) 30
Power Factor 0.9
Voltage Range (v) 220-240
Wattage equivalent (W) 86.4
Amperage (mA) 950
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating F
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
TP rating TP(a)
Package Weight (g) 2298
Package Length (mm) 645
Package Width (mm) 640
Package Depth (mm) 40

Product Specification Sheet

Safety Guides

LDT Files
