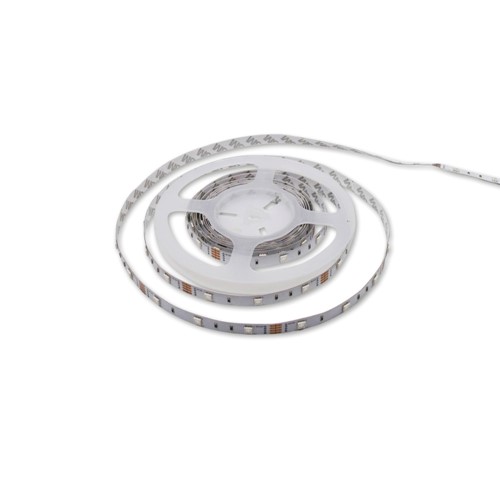

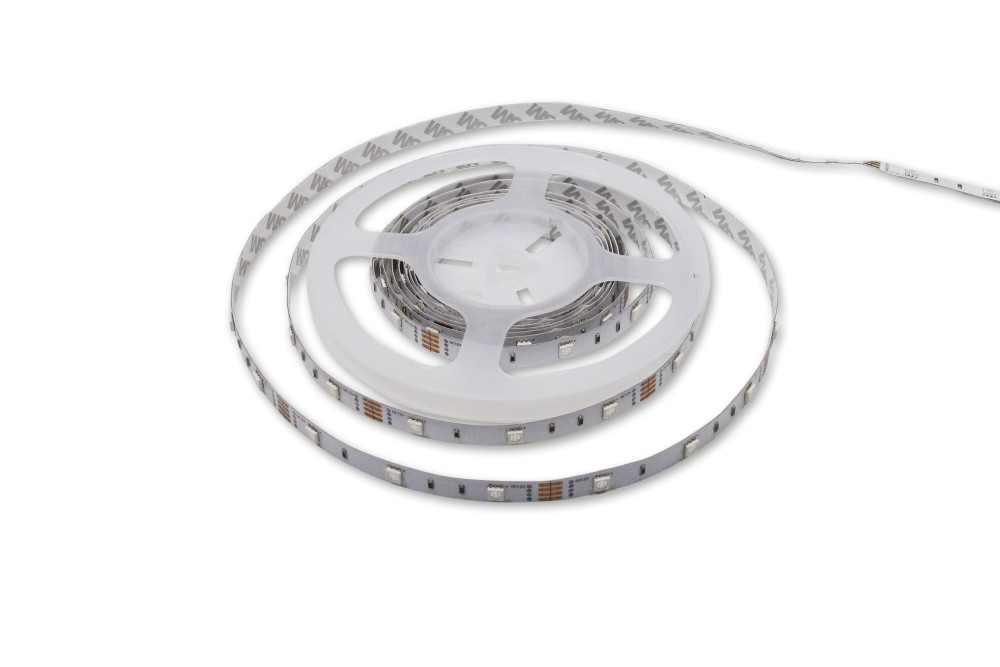

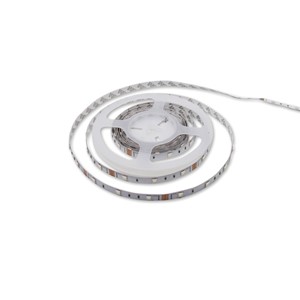

LED STRIP RGB+W 3000K IP20 10M PACK 24V 12W/M 352LM/M WHITE 60LED/M 12MM WIDTH 115 BEAM - MAX RUN 10M
Part Number:
ILSTRGBWA384E
- Product Feature 1:
- RGB+W Colour Changing
- Product Feature 2:
- 3000K Warm White
- Product Feature 3:
- 10-metre pack
- Product Feature 4:
- 10-metre Max Run
- Product Feature 5:
- 24V DC Constant Voltage
- Product Feature 6:
- 60 LED's per metre
- Product Feature 7:
- 12W per metre
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788295204 |
|---|---|
| Quick Order Code | 945895 |
| Category | Strips |
| Range Name | RGBW Strip |
| Product Type | Colour strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Strip Cut Points | 100 |
|---|---|
| Product Depth (mm) | 1.4 |
| Product Weight (g) | 250 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Max Run Length (m) | 10 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 10 |
| Strip Width (mm) | 12 |
Light Data
| Lumens per meter (lm/m) | 352 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | RGB+W |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | RGB+W |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 50000 |
Electrical Data
| Power Consumption per meter (W/m) | 12 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788295204 |
|---|---|
| Package Weight (g) | 270 |
| Package Length (mm) | 280 |
| Package Width (mm) | 260 |
| Package Depth (mm) | 14 |
