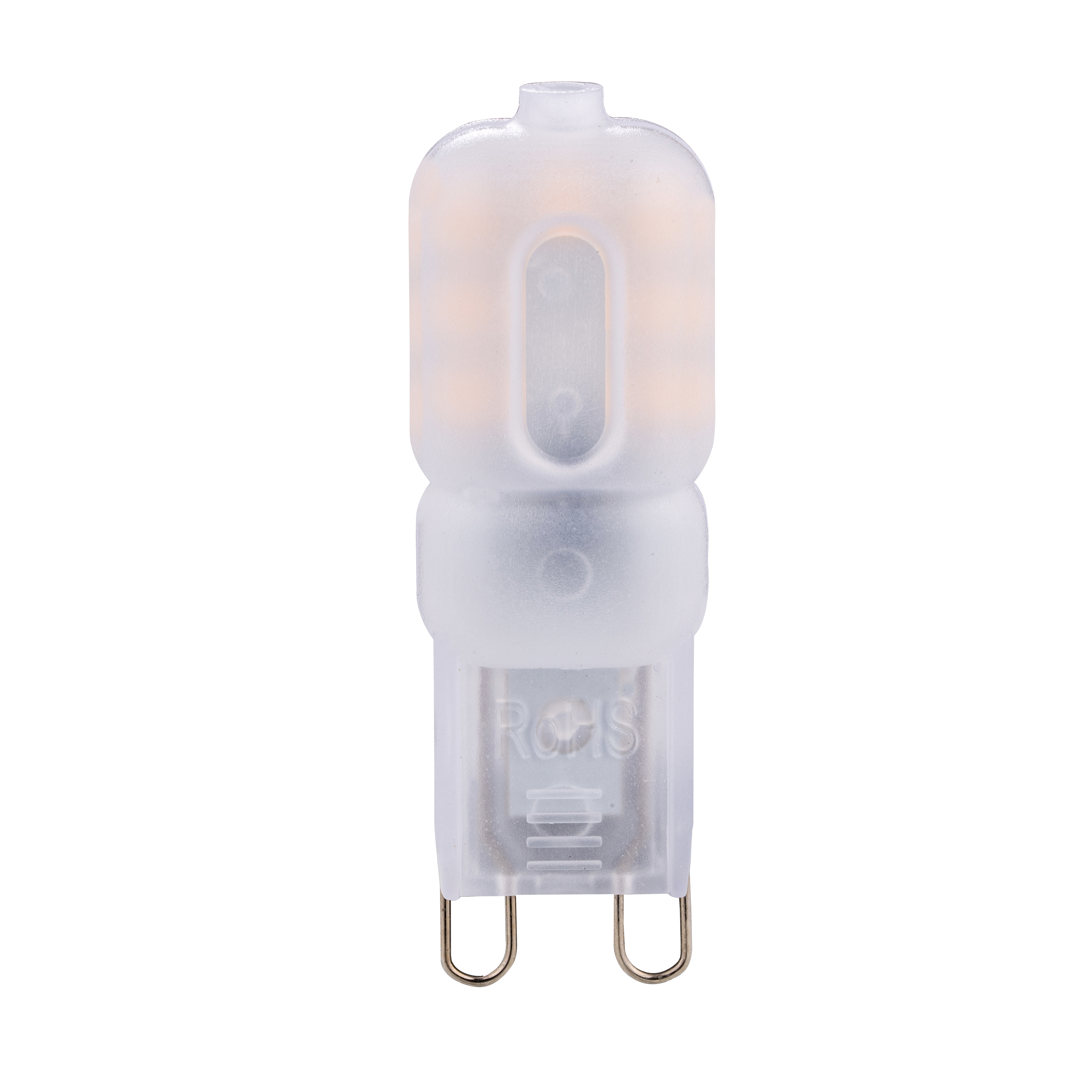

G9 BULB 200LM 1.8W 2700K NON-DIMM 200 BEAM INTEGRAL
Part Number:
ILG9NC023
- Product Feature 1:
- Warm white
- Product Feature 2:
- 200 Lumens
- Product Feature 3:
- Non-Dimmable
- Availability:
-
0
Details
| Barcode | 5055788312277 |
|---|---|
| Quick Order Code | 479221 |
| Category | Lamps |
| Range Name | G9 |
| Product Type | G9 |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 48 |
|---|---|
| Product Depth (mm) | 12 |
| Product Width (mm) | 16 |
| Product Weight (g) | 0.003 |
| Material | Plastic |
| Base Term | G9 |
| Bulb Base | G9 |
| Construction | Plastic heat-sink, Injection moulded diffuser |
| Globe Finish | Frosted |
| Globe Type | G9 |
| Bulb or Luminaire Shape | Cylindrical |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 200 |
|---|---|
| Luminous efficacy (lm/W) | 111.11 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 200 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 200 |
Electrical Data
| Power (W) | 1.8 |
|---|---|
| Power Consumption (W) | 1.8 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 20 |
| Amperage (mA) | 19 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 20 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788312277 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 3.5 |
| Package Length (mm) | 20 |
| Package Width (mm) | 20 |
| Package Depth (mm) | 55 |
| Inner Carton Barcode | 05055788312352 |
| Qty per Inner Carton | 10 |
| Inner Carton Length (mm) | 110 |
| Inner Carton Width (mm) | 55 |
| Inner Carton Depth (mm) | 65 |
| Outer Carton Barcode | 05055788312314 |
| Qty per Outer Carton | 200 |
| Outer Carton Length (mm) | 295 |
| Outer Carton Width (mm) | 245 |
| Outer Carton Depth (mm) | 155 |
| Qty per euro pallet | 35200 |
