GLS BULB B22 806LM 7W 2700K DIMMABLE 240 BEAM FROSTED INTEGRAL
Part Number:
ILGLSB22DC083

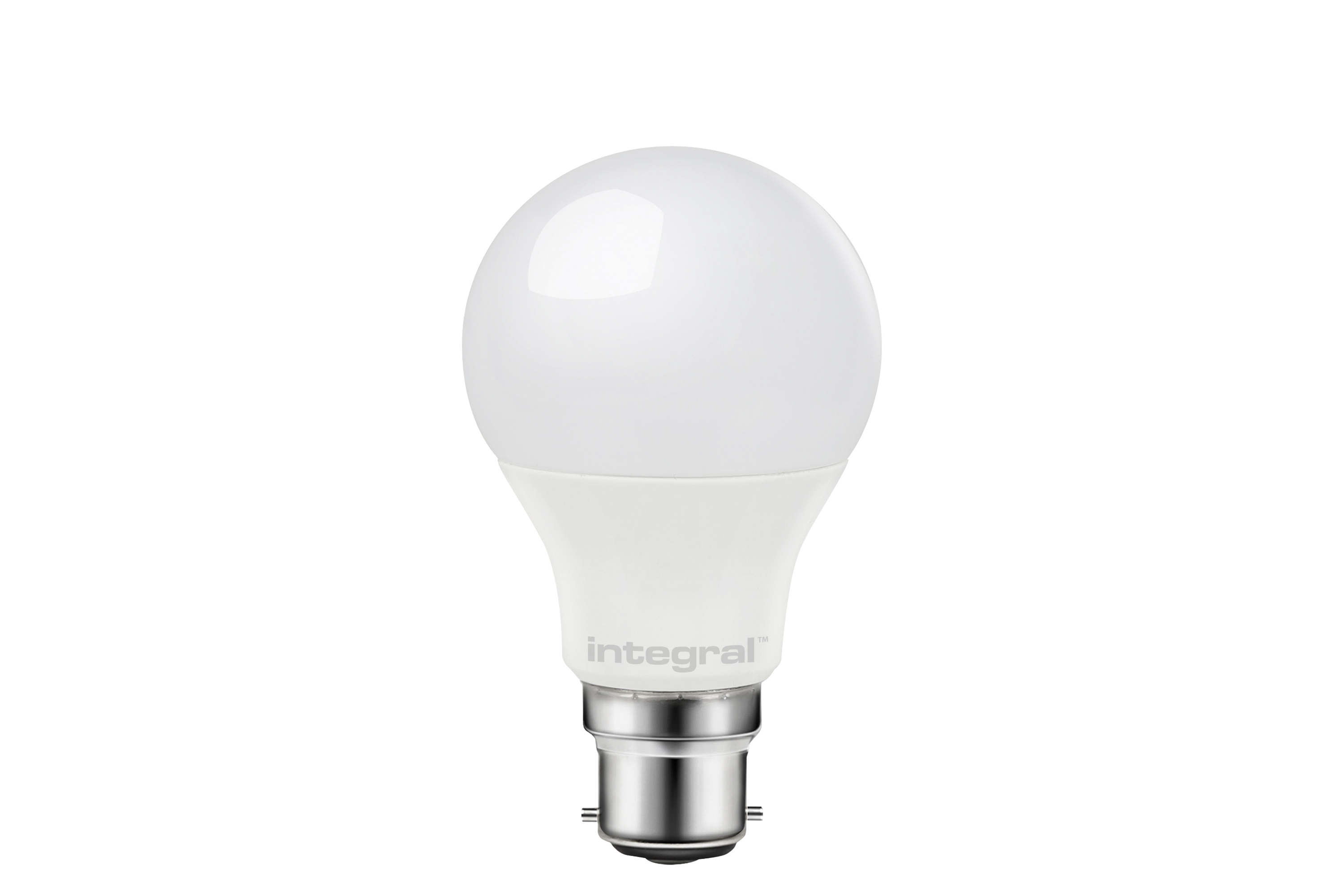

This 7W retro-fit Integral LED Classic Globe (GLS) (large bayonet base) delivers a dimmable, warm light and brightness, similar to a 60W filament bulb. It features high output, multi Everlight LEDs, an anti-glare refractor, all finished in an aluminium and plastic, thermally efficient body. Ideal for living rooms, hallways and kitchens.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 806 Lumens
- Product Feature 3:
- Dimmable with compatible dimmers
- Availability:
-
500+
More stock due in on 03/12/2024
Details
| Quick Order Code | 639504 |
|---|---|
| Barcode | 5055788236979 |
| Category | Lamps |
| Range Name | Everyday |
| Product Type | GLS |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 105 |
|---|---|
| Product Width (mm) | 60 |
| Product Weight (g) | 32 |
| Diameter (mm) | 60 |
| Material | Aluminium, Plastic |
| Base Term | Bayonet cap |
| Bulb Base | B22 |
| Construction | Plastic and Aluminium heat-sink, Polycarbonate diffuser |
| Globe Finish | Frosted |
| Globe Type | GLS |
| Bulb Fixing | Pendant, Wall |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILGLSB22DC083_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 806 |
| Luminous efficacy (lm/W) | 115 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 240 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | Single |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 7 |
|---|---|
| Power Consumption (W) | 7 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 60 |
| Amperage (mA) | 35 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 60 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A+ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 42 |
|---|---|
| Package Length (mm) | 120 |
| Package Width (mm) | 65 |
| Package Depth (mm) | 65 |
| Qty per euro pallet | 1440 |
