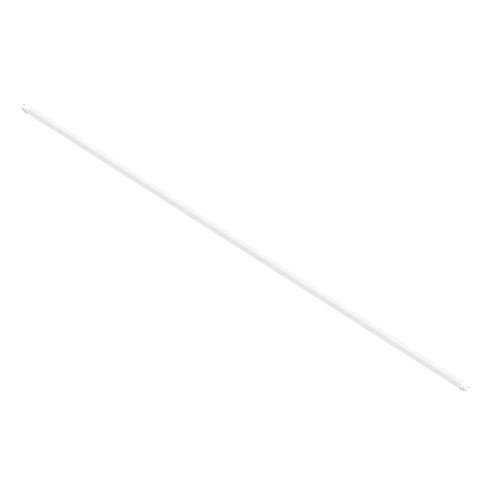

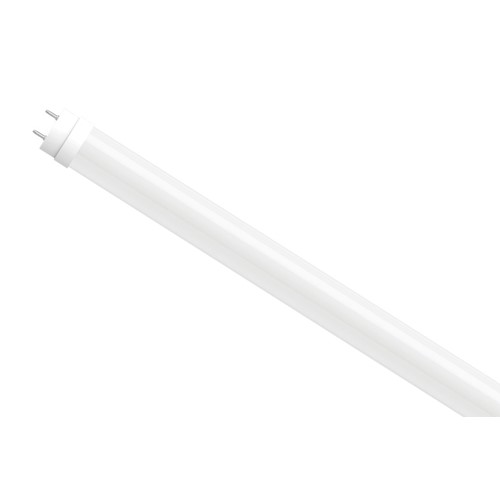

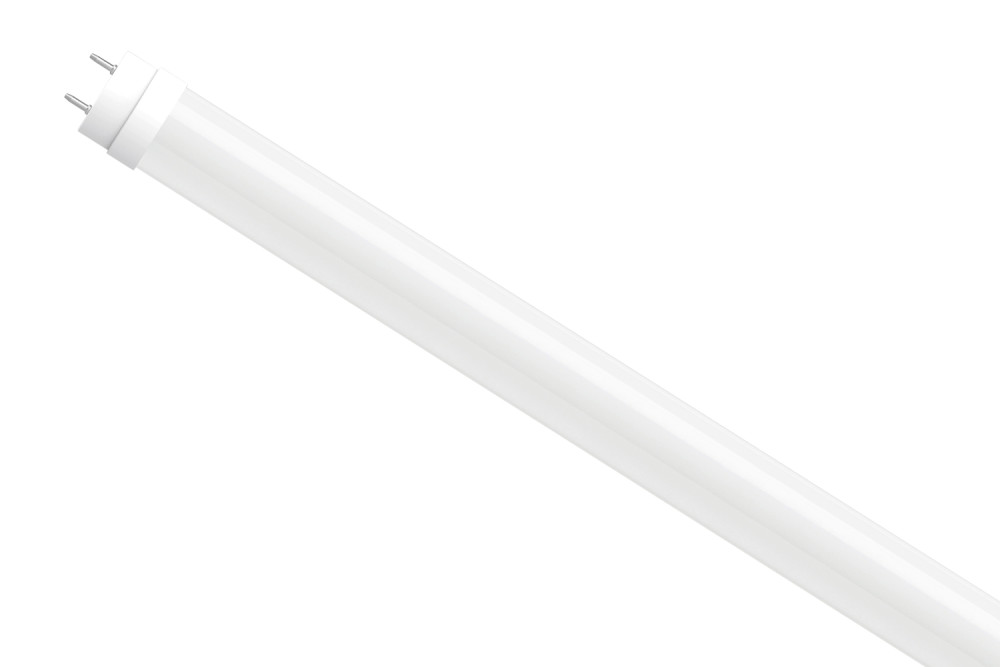

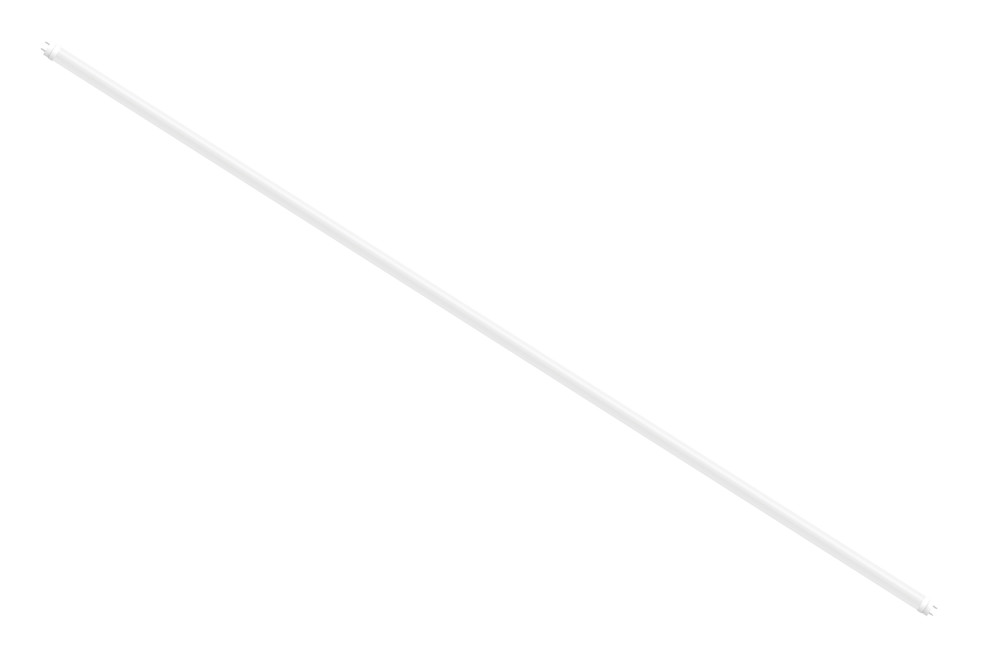

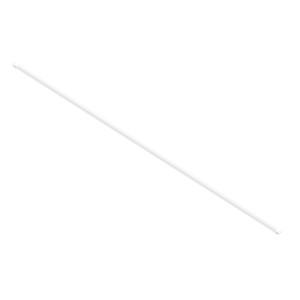

T8 FLUORESCENT TUBE 6FT 2400LM 24W 4000K NON-DIMMABLE 250 BEAM FULL GLASS INTEGRAL
Part Number:
ILT8180AE005
- Product Feature 1:
- T8 tube replacement for existing fitting with magnetic ballasts.
- Product Feature 2:
- Highly efficient: 121lm/W
- Product Feature 3:
- Wide 250 beam angle and frosted glass finish provides even light distribution
- Product Feature 4:
- Cool White light
- Product Feature 5:
- Comes with an LED starter
- Availability:
-
0
More stock due in on 09/05/2025
Details
| Barcode | 5055788312048 |
|---|---|
| Quick Order Code | 286742 |
| Category | Lamps |
| Range Name | T8 Tube |
| Product Type | Tube |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 4 |
Physical Data
| Product Length (mm) | 1778 |
|---|---|
| Product Width (mm) | 28 |
| Product Weight (g) | 300 |
| Material | Glass and plastic |
| Base Term | G13 |
| Bulb Base | G13 |
| Construction | Glass tube, LED strip |
| Globe Finish | Frosted |
| Bulb or Luminaire Shape | Tubular |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 2900 |
|---|---|
| Luminous efficacy (lm/W) | 121 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 250 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 24 |
|---|---|
| Power Consumption (W) | 24 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 180 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788312048 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 350 |
| Package Length (mm) | 1869 |
| Package Width (mm) | 36 |
| Package Depth (mm) | 36 |
| Outer Carton Barcode | 5055788312093 |
| Qty per Outer Carton | 6 |
| Outer Carton Length (mm) | 1899 |
| Outer Carton Width (mm) | 141 |
| Outer Carton Depth (mm) | 109 |
