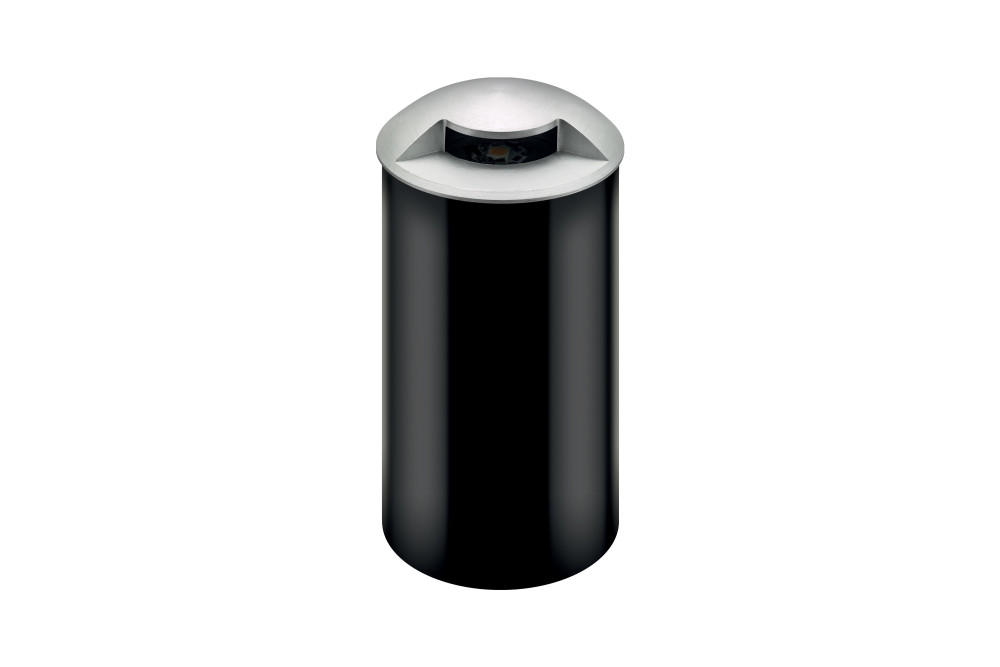

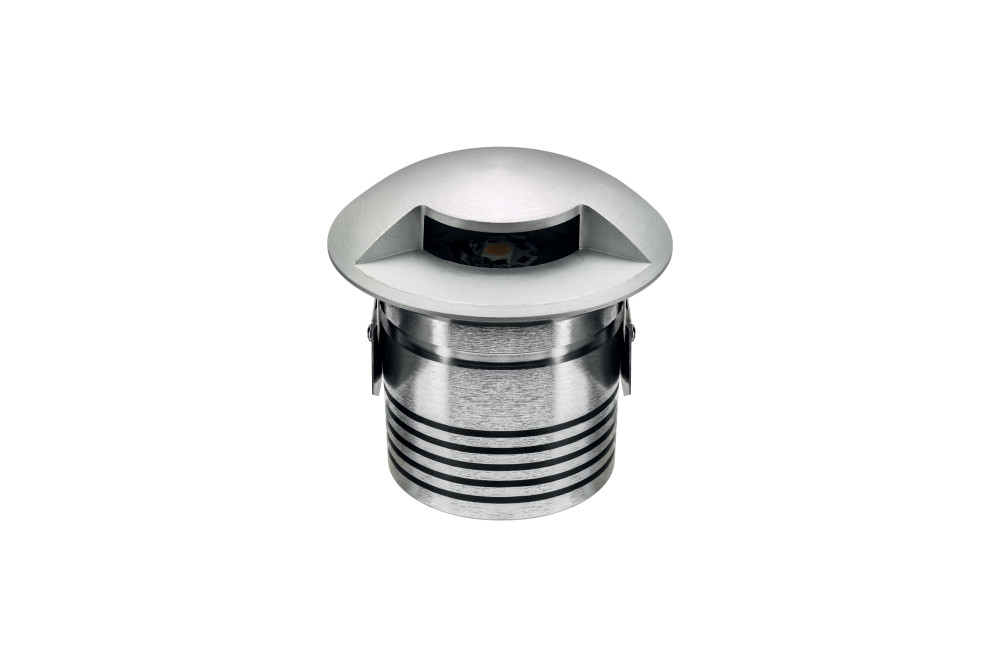

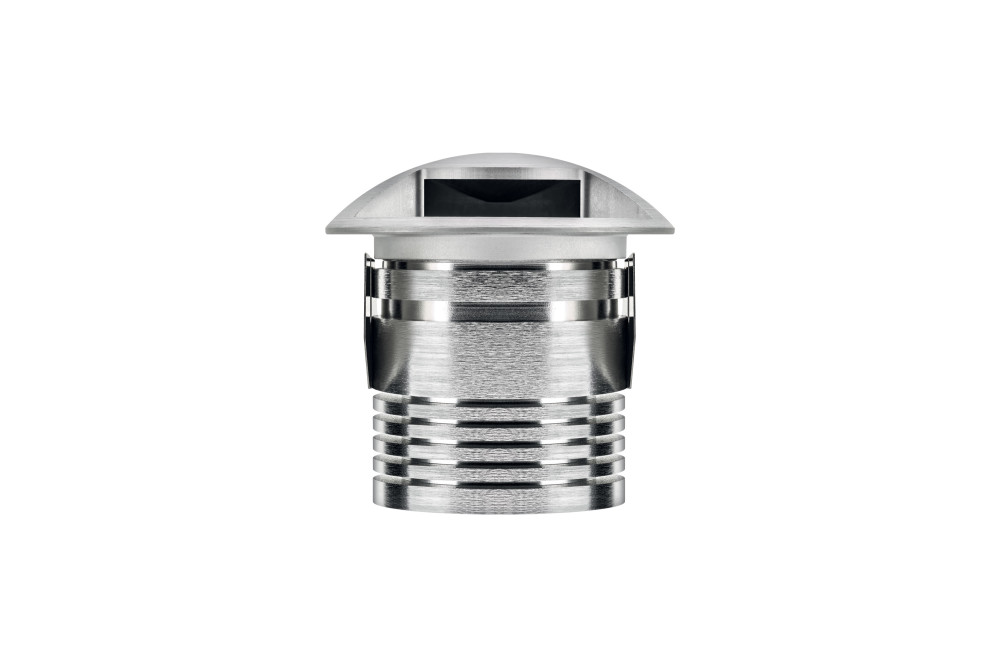

OUTDOOR IN GROUND UPLIGHT WITH H2O STOP IP67 45LM 4.5W 3000K PATHLIGHT 1 WAY BRUSHED ALUMINIUM INTEGRAL
Part Number:
ILGDA003

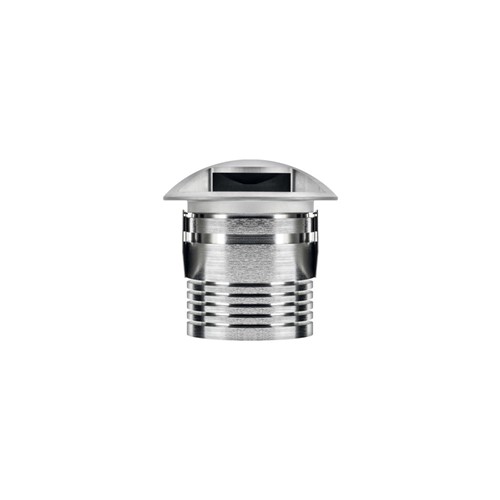

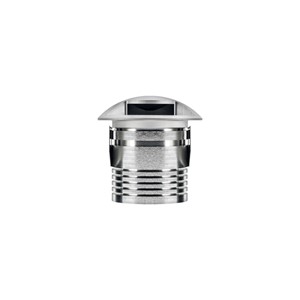

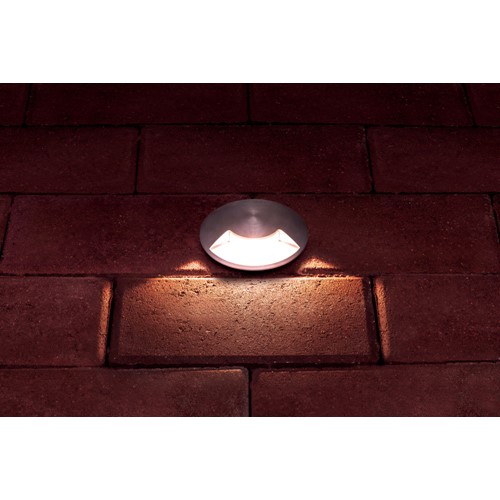

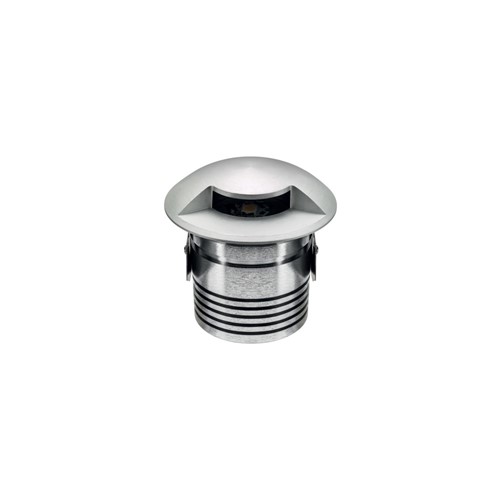

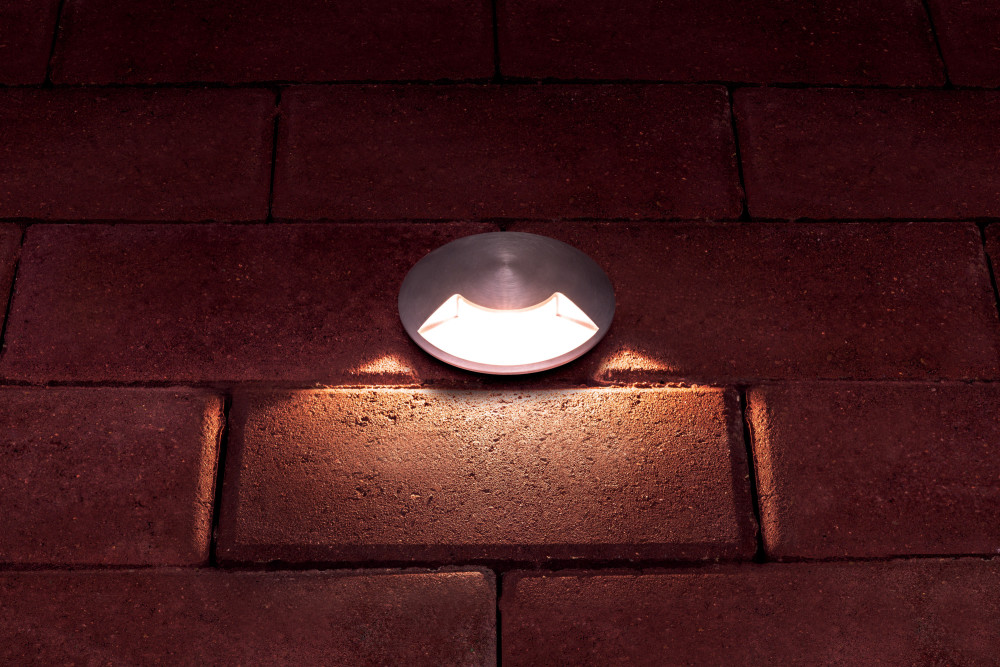

This stylish and practical recessed pathlight provides a single beam of light for highlighting paths and driveways, perfect for homes or hospitality venues. Hard-wearing and weatherproof, the die-cast aluminium body and aluminium dome bezel makes it suitable for coastal areas, and H2O STOP technology provides additional protection against moisture ingress through the electrical cables.
- Product Feature 1:
- Stylish and practical recessed uplight for paths and driveways
- Product Feature 2:
- H2O Stop technology for improved water resistance
- Product Feature 3:
- Cool front surface temperature < 40 degC
- Product Feature 4:
- Weatherproof and hard-wearing
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788242185 |
|---|---|
| Quick Order Code | 647235 |
| Category | Luminaires |
| Range Name | Inground |
| Product Type | Outdoor |
| Product Body Finish | Brushed aluminium |
| Market Segment | Commercial and Residential outdoor |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 105 |
|---|---|
| Product Weight (g) | 580 |
| Diameter (mm) | 88 |
| Optic | Facetted Aluminium |
| Material | Die cast Aluminium with Aluminium Dome Bezel |
| Cut Out Diameter (mm) | 82 |
| Luminaire Fixing | Recessed |
| Placement / Application | Outdoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILGDA003_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 45 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Chip-on-board (COB) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power Consumption (W) | 4.5 |
|---|---|
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |

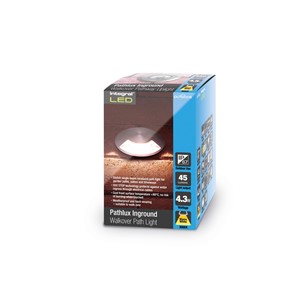

Packaging
| Barcode | 5055788242185 |
|---|---|
| Package Weight (g) | 620 |
| Package Length (mm) | 95 |
| Package Width (mm) | 95 |
| Package Depth (mm) | 170 |
| Outer Carton Barcode | 05055788242192 |
| Qty per Outer Carton | 18 |
| Outer Carton Length (mm) | 305 |
| Outer Carton Width (mm) | 305 |
| Outer Carton Depth (mm) | 360 |
