OUTDOOR BULKHEAD WITH DUSK TO DAWN SENSOR IP54 545LM 6W 4000K DARK GREY INTEGRAL LED
Part Number:
ILDEA024
The Integral LED Outdoor range offers style and substance, with contemporary designs and hardwearing, weatherproof construction. This range of modern luminaires creates the perfect accent lighting for exterior walls in residential and commercial environments with all the low-energy and long-life benefits of LED.

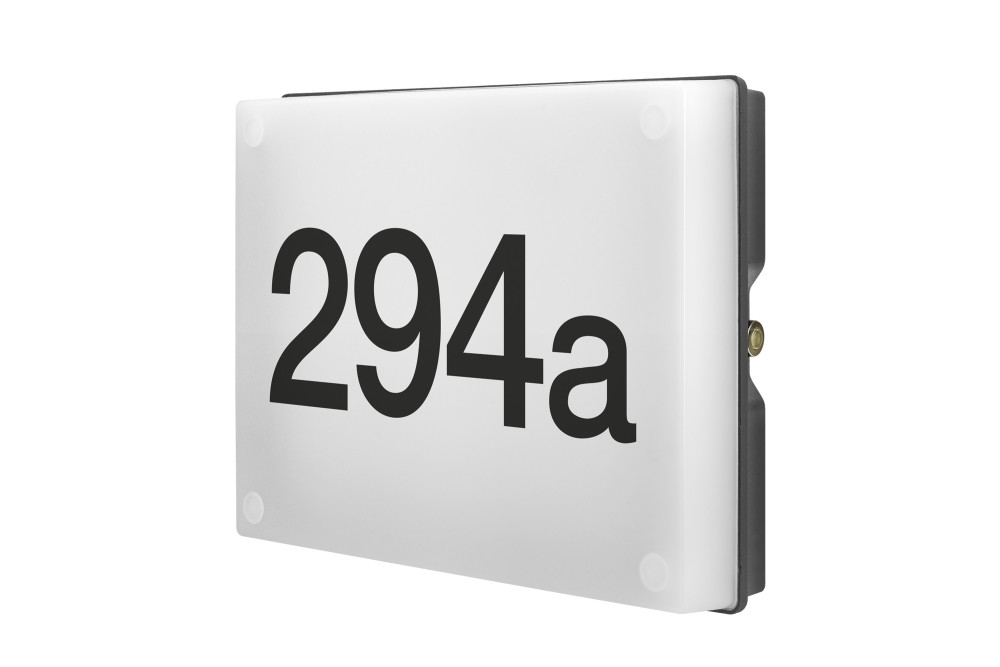

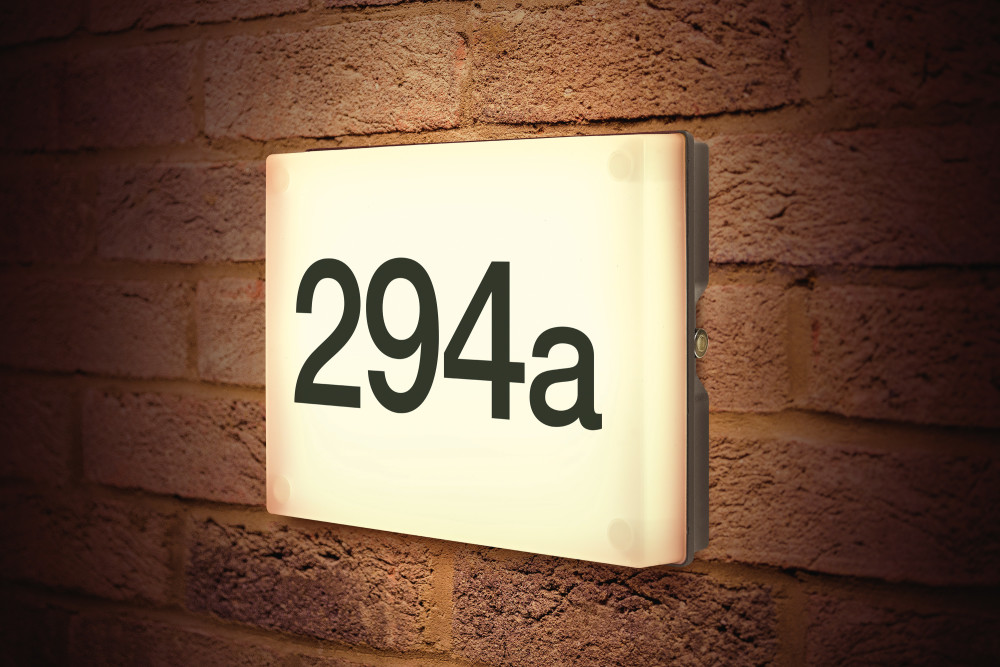

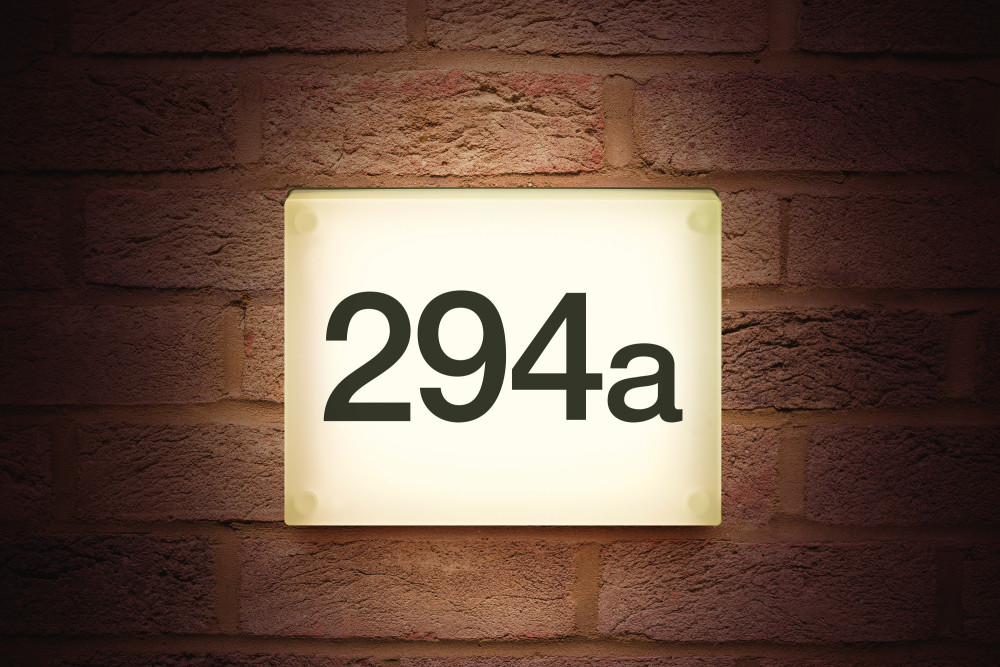

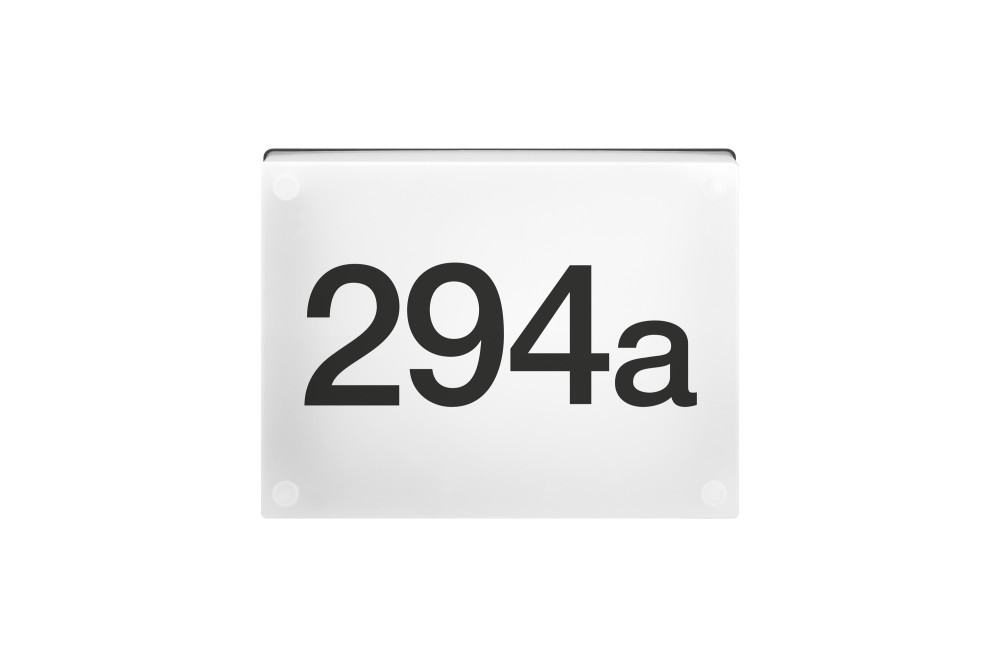

The Night Sign is an ideal solution for displaying your house or apartment number at night. The polycarbonate diffuser shines a gentle light and the included self-adhesive house numbers allow you to customise the sign to fit your needs.
- Product Feature 1:
- Automatically switches ON at dusk and OFF at dawn
- Product Feature 2:
- Hard-wearing and weatherproof
- Product Feature 3:
- Includes self-adhesive house numbers
- Product Feature 4:
- 3 Year warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788233237 |
|---|---|
| Quick Order Code | 530067 |
| Category | Luminaires |
| Range Name | Wall Light |
| Product Type | Outdoor |
| Market Segment | Residential Outdoor |
| Features | Dusk-to-Dawn Sensor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 306 |
|---|---|
| Product Depth (mm) | 60 |
| Product Width (mm) | 230 |
| Product Weight (g) | 1137 |
| Optic | Polycarbonate diffuser |
| Material | Die cast aluminium body with powder coated finish |
| Luminaire Fixing | Wall Mounted |
| Placement / Application | Outdoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDEA024_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 545 |
| Luminous efficacy (lm/W) | 62 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 105 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power Consumption (W) | 6 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP54 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788233237 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1110 |
| Package Length (mm) | 325 |
| Package Width (mm) | 240 |
| Package Depth (mm) | 75 |
| Outer Carton Barcode | 05055788233244 |
| Qty per Outer Carton | 8 |
| Outer Carton Length (mm) | 500 |
| Outer Carton Width (mm) | 325 |
| Outer Carton Depth (mm) | 350 |
Safety Guide
