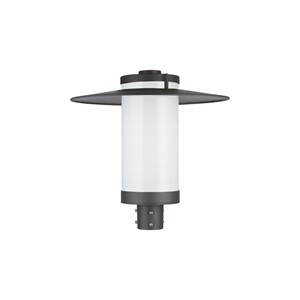

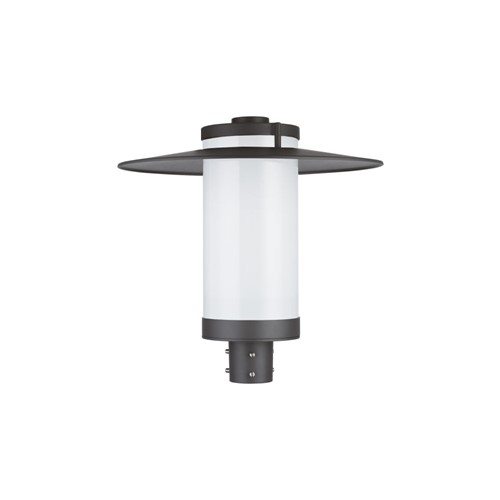

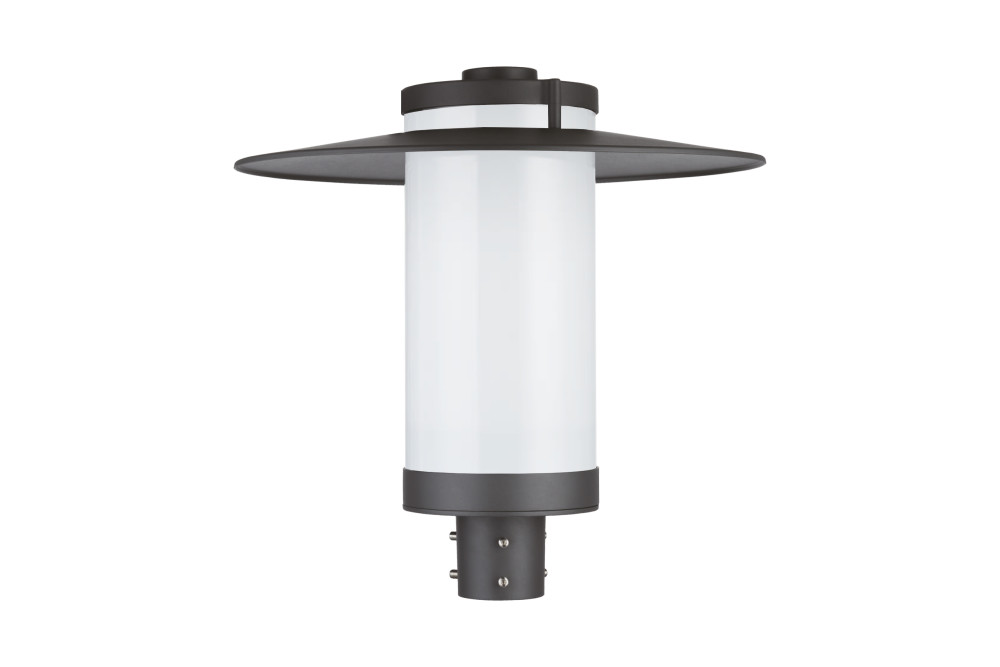

AMENITY POST TOP CANOPY LANTERN 3200LM 45W 4000K IP66 DIFFUSER PC OPAL WITH HOOD 76MM SPIGOT SURGE 10KV NEMA3 SOCKET DUSK-DAWN PHOTOCELL
Part Number:
ILSLA001
This attractive and robust die-cast aluminium amenity street light is ideal for outdoor spaces such as footpaths, residential estates, private roads and car parks. The IK10/IP66 dust and waterproof construction, the included dusk-down photocell and a 360-degree uniform light distribution, make this product perfect for any outdoor amenity lighting project.
- Product Feature 1:
- Contemporary LED design
- Product Feature 2:
- Tough aluminium body with polycarbonate diffuser
- Product Feature 3:
- Ultra efficient LED lantern for street lighting and car parks
- Product Feature 4:
- 3-Pin NEMA Socket
- Product Feature 5:
- Suitable for post top mounting
- Product Feature 6:
- 10KV surge protection
- Product Feature 7:
- 3200lm
- Availability:
-
75
More stock due in on 29/01/2026
Details
| Barcode | 5055788251774 |
|---|---|
| Quick Order Code | 732198 |
| Category | Luminaires |
| Range Name | Amenity |
| Product Body Finish | Grey |
| Market Segment | Commercial and Outdoor |
| Warranty (Years) | 5 |
Physical Data
| Material | Aluminium and CoPolymer Diffuser |
|---|---|
| Construction | Aluminium and polycarbonate body, Tempered glass, Integrated driver |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Bracket for Wall & Pole Mounting |
| Placement / Application | Outdoor |
Light Data
| Beam Type | Symmetrical |
|---|---|
| Luminous Flux in Lumens (lm) | 3200 |
| Luminous efficacy (lm/W) | 71 |
| Colour Temperature Name | Cool White |
| Beam Angle | 360 |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 100000 |
| Sensor / Overide | No |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 45 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Back/Recessed side) | IP66 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 55 |
Packaging
| Barcode | 5055788251774 |
|---|
Safety Guide
ILSLA001
