DIFFUSALITE
LOW GLARE - EASY INSTALL - VERSATILE

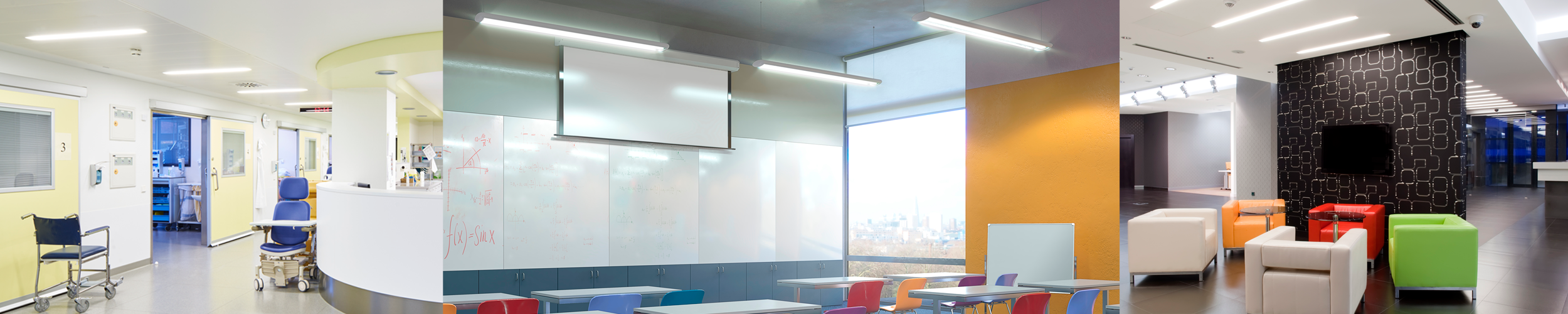

Perfect for the classroom

The polycarbonate prismatic diffuser generates a homogeneous light output and reduces light contrasts. Along with an extended surface area, it allows for a considerable reduction in glare. This is particularly important in education applications where providing the optimal learning conditions is paramount. Our low glare surface mounted luminaires are also ideal in many other applications, such as office settings, hospitals and in retail environments. Students, employees or shoppers will experience an improved experience without strain on the eye, improving their mood, wellbeing and productivity.



Variety of options - The obvious choice for any renovation project

  • Available in 4, 5 or 6 ft
  • Variable wattage (30W - 58W) - Set the brightness to match your needs
  • Variable colour temperature (3000K - 4000K - 6000K) - Warm to cool daylight, set it as you prefer
  • Microwave sensor - Light activated with motion detector
  • Integrated emergency function - 3h maintained
  • Compatible with DALI installations where the control of individual lights is needed


Variable wattage (30W - 58W)

Adjustable colour temperature

Emergency function

Microwave sensor



Designed with the installer in mind

As is the case with all our products, Diffusalite is designed to be easy to install in any situation, whether surface mounted or suspended:

  • Standard Besa box wiring
  • Numerous fixing positions for maximum versatility during installation
  • Screwless piano key terminal block
  • Safety suspension springs (for an improved comfort while installing and also removing any unpleasant shadow traditional strings can create)


Back of the product

Piano key connectors

Suspension springs



Peace of mind

Our Diffusalite product range comes with a 5 year warranty to give you 100% confidence.





With an impressive and comfortable illumination, an elegant and modern look, many sizes and options available and a very competitive price, Diffusalite is an obvious choice for your lighing renovation projects.



Product
Code
Length
ft
Watts
W
Total Lumens
lm
Lumens
per Watt
CCT
K
CRI
>=
Beam
Angle
IP
Rating
IK
Rating
Net Weight
kg
Dimensions mm
LxWxH
View
Product
SINGLE
STANDARD
ILBTK101 4 20 2500 125 4000 80 120° IP40 IK08 2 1190 x 200 x 81
ILBTK102 5 30 3750 125 4000 80 120° IP40 IK08 2.3 1490 x 200 x 81
ILBTK103 6 40 5000 125 4000 80 120° IP40 IK08 3 1790 x 200 x 81
EMERGENCY
ILBTK104 4 20 2500 125 4000 80 120° IP40 IK08 2.2 1190 x 200 x 81
ILBTK105 5 30 3750 125 4000 80 120° IP40 IK08 2.6 1490 x 200 x 81
ILBTK106 6 40 5000 125 4000 80 120° IP40 IK08 3.4 1790 x 200 x 81

TWIN
STANDARD
ILBTK121 4 38 4750 125 4000 80 120° IP40 IK08 2 1190 x 200 x 81
ILBTK122 5 58 7250 125 4000 80 120° IP40 IK08 2.3 1490 x 200 x 81
ILBTK123 6 65 8125 125 4000 80 120° IP40 IK08 3 1790 x 200 x 81
EMERGENCY
ILBTK124 4 38 4750 125 4000 80 120° IP40 IK08 2.2 1190 x 200 x 81
ILBTK125 5 58 7250 125 4000 80 120° IP40 IK08 2.6 1490 x 200 x 81
ILBTK126 6 65 8125 125 4000 80 120° IP40 IK08 3.4 1790 x 200 x 81
MICROWAVE
ILBTK128 5 58 7250 125 4000 80 120° IP40 IK08 2.3 1790 x 200 x 81
EMERGENCY & MICROWAVE
ILBTK131 5 58 7250 125 4000 80 120° IP40 IK08 2.6 1790 x 200 x 81
POWER & CCT SWITCHABLE STANDARD
ILBTK142 5 30/58 3750/7250 125 3000/4000/6000 80 120° IP40 IK08 2.3 1790 x 200 x 81
POWER & CCT SWITCHABLE EMERGENCY
ILBTK145 5 30/58 3750/7250 125 3000/4000/6000 80 120° IP40 IK08 2.6 1790 x 200 x 81
CCT SWITCHABLE & DALI DIMMABLE
ILBTK148 5 30/58 3750/7250 125 3000/4000/6000 80 120° IP40 IK08 2.3 1490 x 200 x 81
CCT SWITCHABLE, EMERGENCY & DALI DIMMABLE
ILBTK151 5 30/58 3750/7250 125 3000/4000/6000 80 120° IP40 IK08 2.6 1490 x 200 x 81
