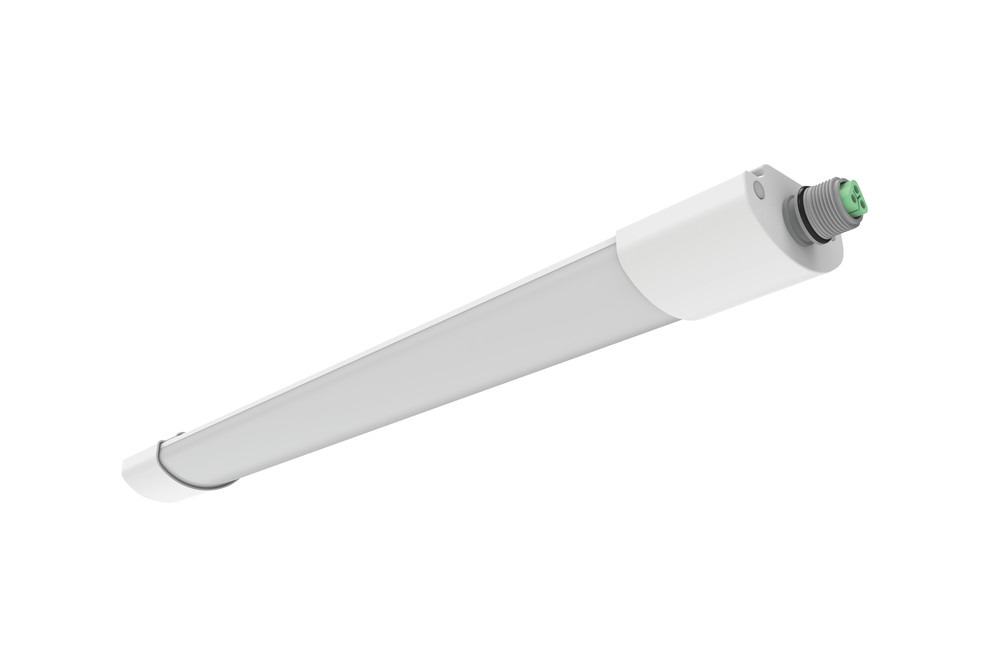

AGRI BATTEN FAST FIT IP66 6000LM 43W 4000K 120 BEAM 140LM/W 1530mm 5FT LINKABLE INTEGRAL

Part Number:

ILBTG090

Agricultural Batten IP66 for Farms, Stainless Stell Clips, PPMA Body resistant to Ammonia

Product Feature 1:
IP66
Product Feature 2:
Agricultural Use
Product Feature 3:
Ammonia Resistant
Product Feature 4:
PPMA Body
Product Feature 5:
140 lm/W
Availability:
0

More stock due in on 10/01/2022

Suggested products

Barcode 5055788247210
Category Luminaires
Range Name Agri Batten
Type Single
Product Type Battens
Product Body Finish Matt white
Finish Matt White
Features Agricultural use, Ammonia Resistant Body
Warranty (Years) 3
Emergency Option No
Product Length (mm) 165, 1530
Product Depth (mm) 24.5
Product Width (mm) 27
Product Weight (g) 1200
Optic Opal diffuser
Material Aluminium and CoPolymer Diffuser
Construction Polycarbonate
Bulb Fixing Surface Mounted
Bulb or Luminaire Shape Linear
Luminaire Fixing Surface or Suspended
Mounting Type Rear & Side Cable Entry
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILBTG090_EU_label
Luminous Flux in Lumens (lm) 6000
Luminous efficacy (lm/W) 140
Peak Intensity (Cd) 1800
Correlated Colour Temperature (CCT) (K) 4000K
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Lifetime (hours) 50000
Switching Cycles 15000
Useful Lumens (lm) 6000
Power Consumption (w) 43
Power Factor 0.9
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Back/Recessed side) IP66
IP Rating (Ingress Protection) IP66
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Length (mm) 159
Package Width (mm) 82
Package Depth (mm) 55

Product Specification Sheet

Installation Guides
