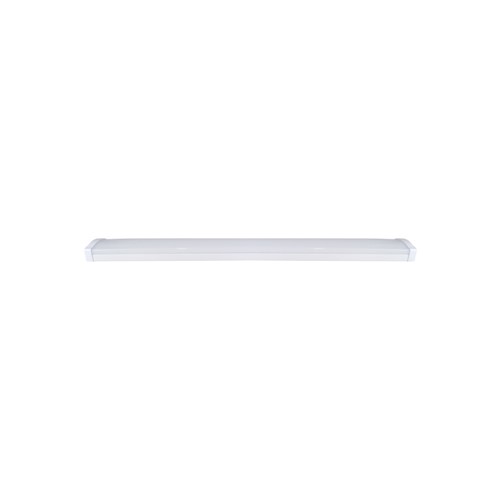

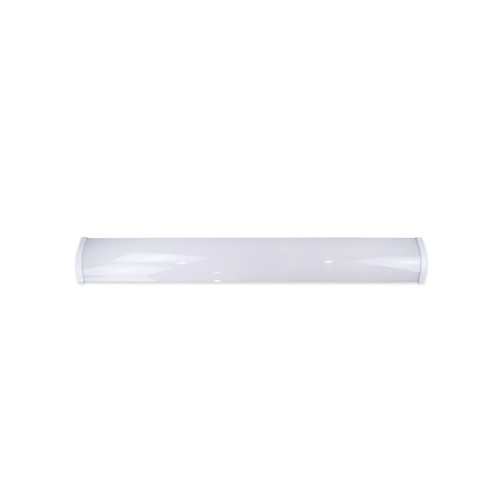

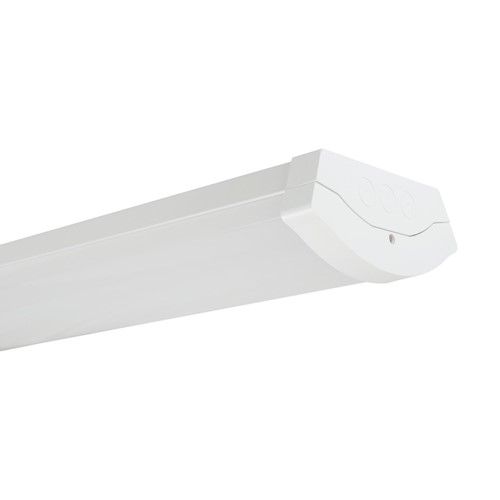

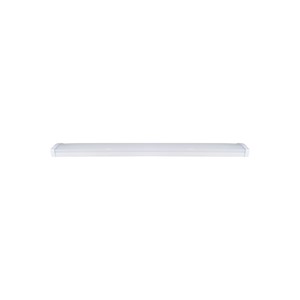

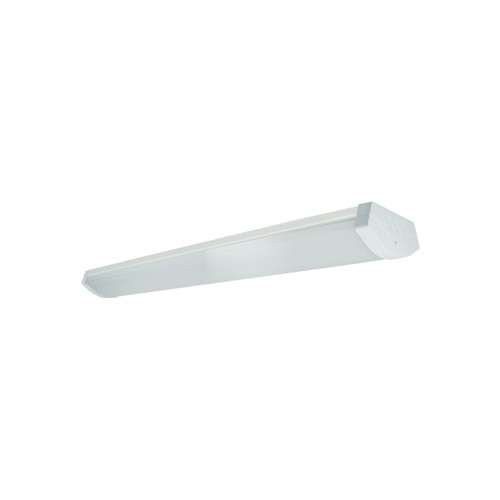

DIFFUSALITE 4FT EM3HR IP40 IK08 20W 2500LM 4000K 120° 125LM/W NON-DIMMABLE

Part Number:

ILBTK104

DiffusaLITE is a new range of highly reliable battens that provides a range of options for effective and efficient LED lighting.

A low glare light output with a discreet, slim and low profile design in a range of sizes, makes DiffusaLITE battens ideal for schools, colleges, hospitals, offices, retail areas and general applications.

Being lightweight, linkable and BESA mountable allows for an easy and rapid installation. A definitive range that can enhance a wide variety of projects.

Product Feature 1:
2500lm
Product Feature 2:
50000hrs
Product Feature 3:
125lm/W
Product Feature 4:
Low Glare
Product Feature 5:
3hr emergency
Product Feature 6:
IP40
Product Feature 7:
IK08
Availability:
45

More stock due in on 15/04/2024

Quick Order Code 549663
Barcode 5055788254973
Category Luminaires
Range Name Diffusalite
Type Single
Product Body Finish Matt white
Market Segment Indoor commercial, Industrial, residential
Features Emergency Function
Warranty (Years) 5
Emergency Option Integrated
Size (in ft) 4ft
Linkable Yes
Product Length (mm) 1190
Product Depth (mm) 81
Product Width (mm) 200
Product Weight (g) 2200
Optic Polycarbonate diffuser
Material Polycarbonate
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Ceiling mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILBTK104_EU_label
Luminous Flux in Lumens (lm) 2500
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 25000
Power Consumption (W) 20
Power Factor 0.9
Input Voltage (V) 200-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP40
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 2600
Package Length (mm) 1202
Package Width (mm) 203
Package Depth (mm) 90

Product Specification Sheet

Safety Guides

Installation Guides

LDT Files
