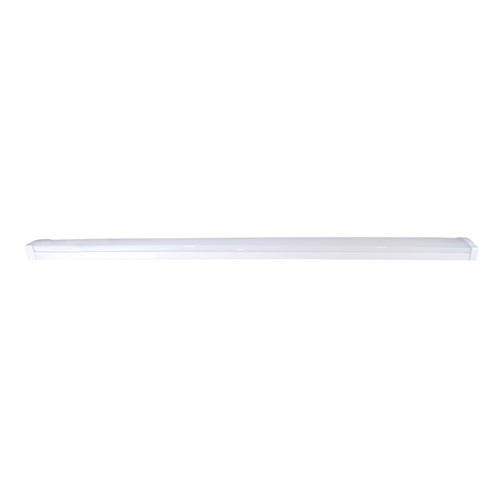

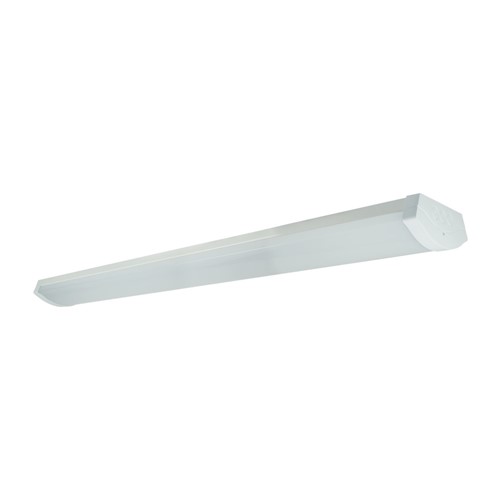

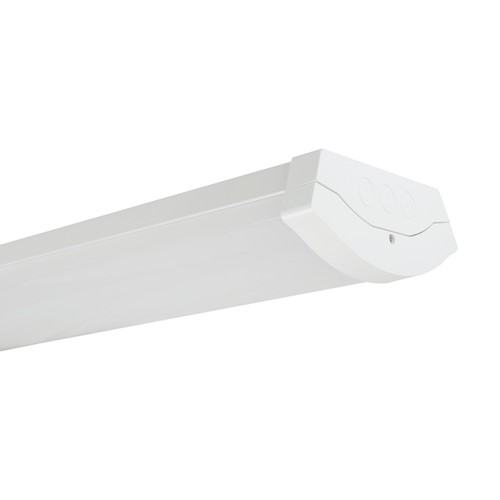

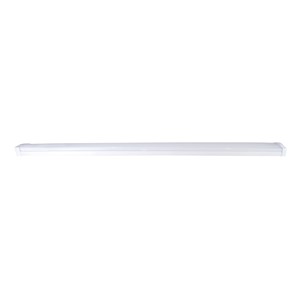

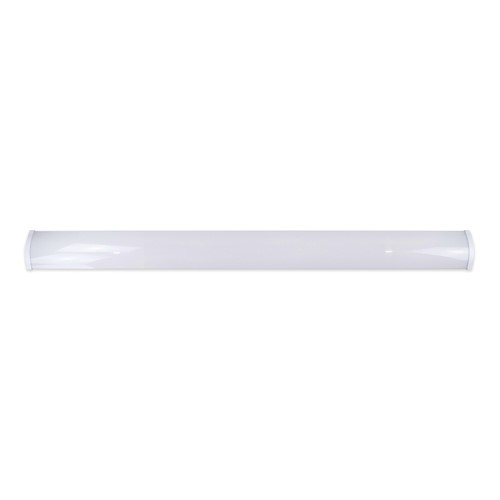

DIFFUSALITE 5FT IP40 IK08 30W 3750LM 4000K 120° 125LM/W NON-DIMMABLE

Part Number:

ILBTK102

DiffusaLITE is a new range of highly reliable battens that provides a range of options for effective and efficient LED lighting.

A low glare light output with a discreet, slim and low profile design in a range of sizes, makes DiffusaLITE battens ideal for schools, colleges, hospitals, offices, retail areas and general applications.

Being lightweight, linkable and BESA mountable allows for an easy and rapid installation. A definitive range that can enhance a wide variety of projects.

Product Feature 1:
3750lm
Product Feature 2:
50000hrs
Product Feature 3:
125lm/W
Product Feature 4:
Low Glare
Product Feature 5:
IP40
Product Feature 6:
IK08
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Quick Order Code 792295
Barcode 5055788254959
Category Luminaires
Range Name Diffusalite
Type Single
Product Body Finish Matt white
Market Segment Indoor commercial, Industrial, residential
Warranty (Years) 5
Emergency Option No
Size (in ft) 5ft
Linkable Yes
Product Length (mm) 1490
Product Depth (mm) 81
Product Width (mm) 200
Product Weight (g) 2300
Optic Polycarbonate diffuser
Material Polycarbonate
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Ceiling mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILBTK102_EU_label
Luminous Flux in Lumens (lm) 3750
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 25000
Power Consumption (W) 30
Power Factor 0.9
Voltage Range (v) 200-240
Input Voltage (V) 200-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP40
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 2850
Package Length (mm) 1502
Package Width (mm) 203
Package Depth (mm) 90
