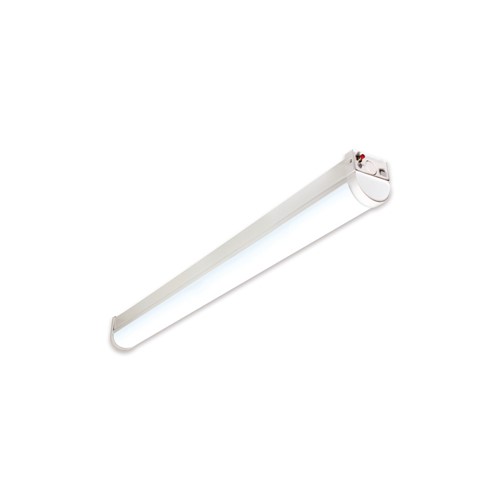

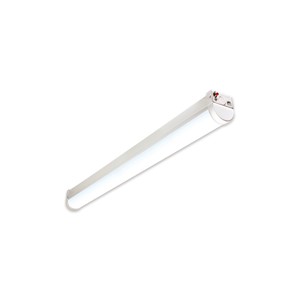

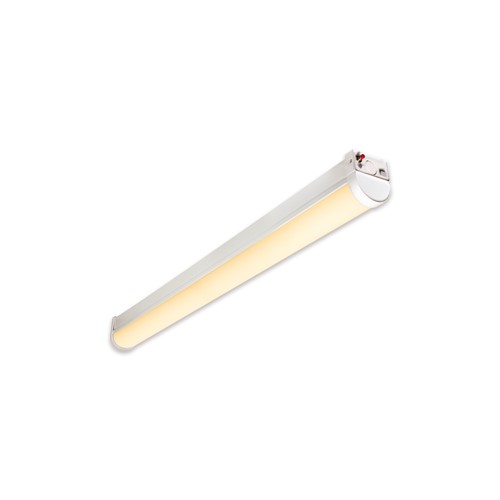

LIGHTSPAN+ DALI 4FT LED BATTEN 40W CCT 3000/4000/6300K 5800LM DALI SELF-EM
Part Number:
ILBTC241
Integral Lightspan+ battens provide an exceptionally efficient alternative to equivalent fluorescent fixtures, achieving up to 145lm/W. With the inbuilt driver enabling connection to your DALI network, you can achieve greater efficiencies and reduced maintenance costs alongside multiple lighting control.
Switchable CCT make these battens ideal for indoor commercial, industrial and retail spaces that need different colour temperature to suit the application and requirements.
The integrated emergency pack allows for a minimum 3 hours of illumination should power go out, conforming to UK regulation BS EN60598.
- Product Feature 1:
- CCT Switchable
- Product Feature 2:
- DALI Dimmable
- Product Feature 3:
- 50000hrs
- Product Feature 4:
- 145lm/W
- Product Feature 5:
- Class I
- Product Feature 6:
- 3hr emergency
- Product Feature 7:
- IP20
- Product Feature 8:
- IK08
- Availability:
-
15
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788279013 |
|---|---|
| Category | Luminaires |
| Range Name | Lightspan+ |
| Type | Single / Twin |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Finish | Matt White |
| Features | CCT Swtichable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Size (in ft) | 4ft |
| Linkable | Yes |
| Product Length (mm) | 1170 |
| Product Depth (mm) | 71 |
| Product Width (mm) | 60 |
| Product Weight (g) | 1900 |
| Optic | Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Suspended / ceiling mounted / wall mounted |
| Mounting Type | Rear and side Cable Entry |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 5800 |
|---|---|
| Luminous efficacy (lm/W) | 145 |
| Correlated Colour Temperature (CCT) (K) | 3000/4000/6300 |
| Colour Temperature | 3000/4000/6300 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White/Cool White/Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 225 |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 40 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 2000 |
|---|---|
| Package Length (mm) | 1175 |
| Package Width (mm) | 68 |
| Package Depth (mm) | 79 |
Safety Guide
ILBTC241-3000K
