LIGHTSPAN SLIM II 4FT 20W/30W/40W 3000K4000K/6000K 120 BEAM 120LM/W NON-DIMM INTEGRAL SENSOR PWR SWITCHABLE 50%/75%/ 100%

Part Number:

ILBTF106

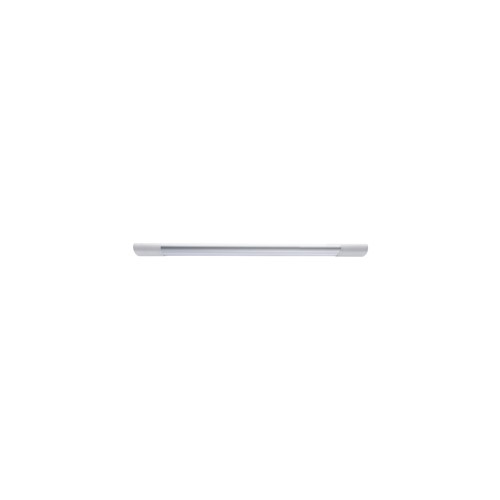

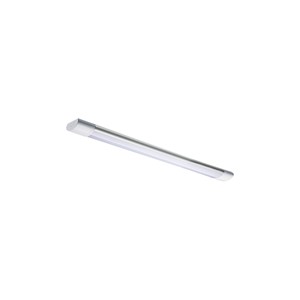

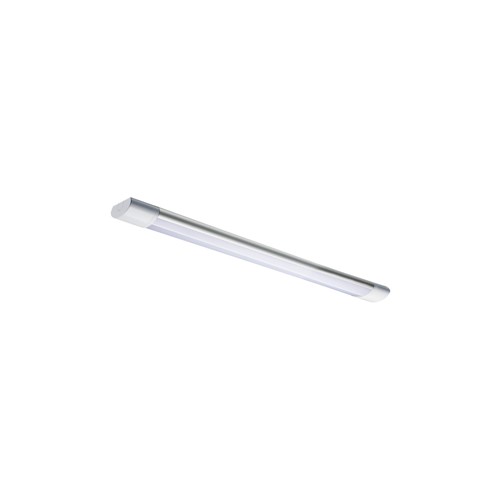

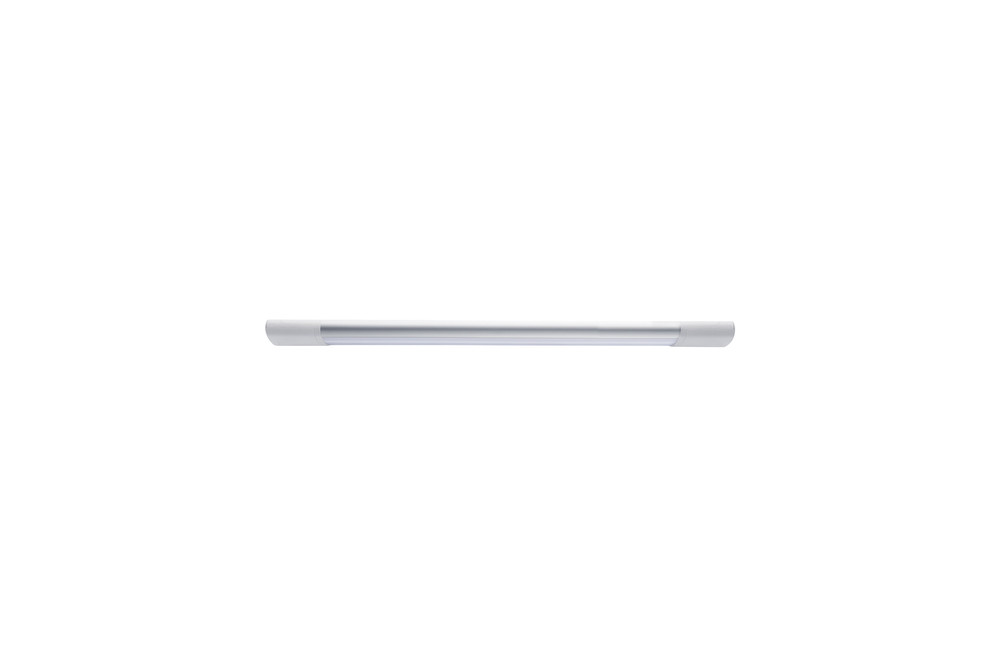

The Lightspan Slim II is a range of low profile compact LED battens with a more decorative and elegant design, suitable for many applications from commercial to industrial. They can be surface or suspended mounted and feature a brushed aluminium housing. CCT, power switching, 3hr emergency and motion sensor options available.

Product Feature 1:
4800lm
Product Feature 2:
50000hrs
Product Feature 3:
120lm/w
Product Feature 4:
Slim Low Profile Design
Product Feature 5:

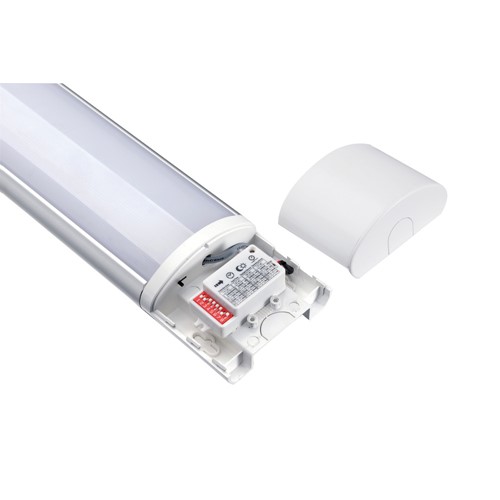

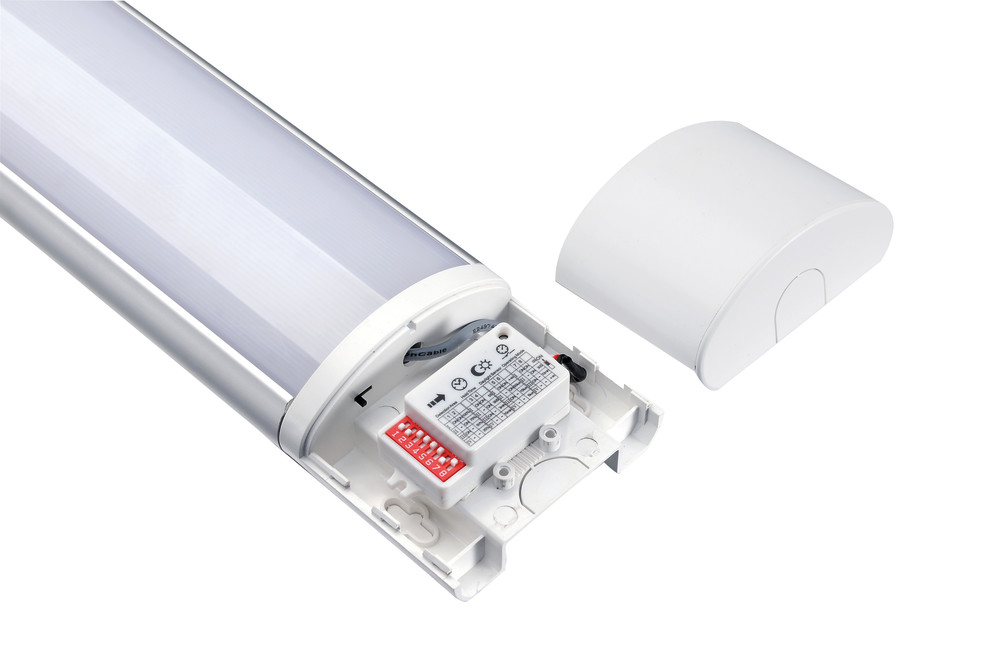

Power & CCT Switchable and Microwave Sensor
Product Feature 6:
IP40
Product Feature 7:
IK10
Availability:
13

More stock due in on 15/05/2024

Quick Order Code 488463
Barcode 5055788267577
Category Luminaires
Range Name Lightspan Slim II
Product Type Battens
Product Body Finish Matt white
Market Segment Indoor commercial, Industrial, residential
Features Microwave Sensor, Power & CCT Swtichable
Warranty (Years) 5
Emergency Option No
Size (in ft) 4ft
Linkable Yes
Product Length (mm) 1190
Product Depth (mm) 36
Product Width (mm) 80
Product Weight (g) 880
Optic Polycarbonate diffuser
Material Polycarbonate
Construction Aluminium extrusion body, PC injection moulding diffuser and end caps
Bulb or Luminaire Shape Linear
Luminaire Fixing Ceiling mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILBTF106_EU_label
Luminous Flux in Lumens (lm) 4800
Correlated Colour Temperature (CCT) (K) 3000/4000/6000
Colour Temperature Name Warm White/Cool White/Cool Daylight
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 25000
Power Consumption (W) 40
Power Factor 0.9
Voltage Range (v) 200-240
Input Voltage (V) 200-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK10
IP Rating (Ingress Protection) IP40
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 2850
Package Length (mm) 1502
Package Width (mm) 203
Package Depth (mm) 90
