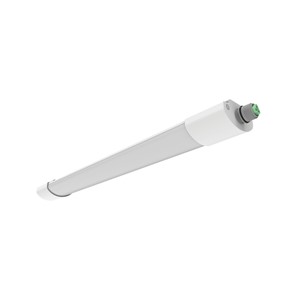

AGRI BATTEN FAST FIT IP66 6000LM 43W 4000K 120 BEAM 140LM/W 1530mm 5FT LINKABLE INTEGRAL
Part Number:
ILBTG090
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Agricultural Batten IP66 for Farms, Stainless Stell Clips, PPMA Body resistant to Ammonia
- Product Feature 1:
- IP66
- Product Feature 2:
- Agricultural Use
- Product Feature 3:
- Ammonia Resistant
- Product Feature 4:
- PPMA Body
- Product Feature 5:
- 140 lm/W
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 513533 |
|---|---|
| Barcode | 5055788247210 |
| Category | Luminaires |
| Range Name | Agri Batten |
| Type | Single |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Finish | Matt White |
| Features | Agricultural use, Ammonia Resistant Body |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Linkable | No |
| Product Length (mm) | 165, 1530 |
| Product Depth (mm) | 24.5 |
| Product Width (mm) | 27 |
| Product Weight (g) | 1200 |
| Optic | Opal diffuser |
| Material | Aluminium and CoPolymer Diffuser |
| Construction | Polycarbonate |
| Bulb Fixing | Surface Mounted |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Surface or Suspended |
| Mounting Type | Rear & Side Cable Entry |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTG090_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 6000 |
| Luminous efficacy (lm/W) | 140 |
| Peak Intensity (Cd) | 1800 |
| Correlated Colour Temperature (CCT) (K) | 4000K |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Lifetime (hours) | 50000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 6000 |
Electrical Data
| Power Consumption (W) | 43 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240V |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Back/Recessed side) | IP66 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Length (mm) | 159 |
|---|---|
| Package Width (mm) | 82 |
| Package Depth (mm) | 55 |
Safety Guide
