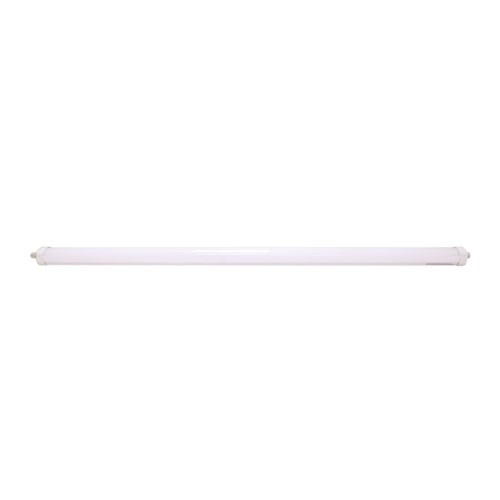

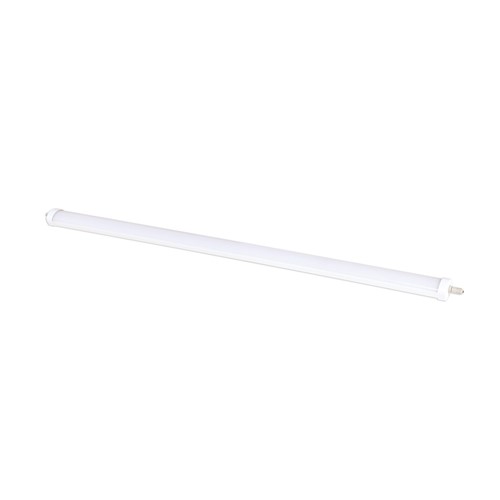

SLIMLINE BATTEN IP65 5350LM 46.5W 4000K 120 BEAM 115LM/W 1500MM 5FT LINKABLE NON-DIMM INTEGRAL
Part Number:
ILBTOA003
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Integral IP65 LED battens are highly efficient, perfect for new installations and ideal for replacing traditional waterproof luminaires. The batten range has a white injection moulded housing and diffuser. To connect more than one batten in a series, use the cable entry gland supplied with the batten. Fixing brackets are also included and the LED driver is integrated for easier installation.
- Product Feature 1:
- 5350lm
- Product Feature 2:
- Cool White
- Product Feature 3:
- 25000hrs
- Product Feature 4:
- Class II
- Product Feature 5:
- 115lm/W
- Product Feature 6:
- 3 year warranty
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 699737 |
|---|---|
| Barcode | 5055788218166 |
| Category | Luminaires |
| Range Name | Slimline IP65 |
| Type | Twin |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Finish | Matt White |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 5ft |
| Linkable | Yes |
| Product Length (mm) | 1566 |
| Product Depth (mm) | 52 |
| Product Width (mm) | 75 |
| Product Weight (g) | 1230 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Wall/Ceiling mounted |
| Placement / Application | Indoor, Outdoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTOA003_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 5350 |
| Luminous efficacy (lm/W) | 115 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
| Useful Lumens (lm) | 5350 |
Electrical Data
| Power Consumption (W) | 46.5 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 70 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 1320 |
|---|---|
| Package Length (mm) | 1637 |
| Package Width (mm) | 76 |
| Package Depth (mm) | 54 |
| Qty per euro pallet | 144 |
