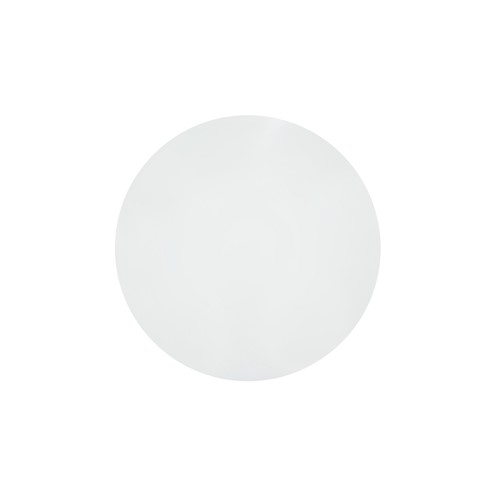

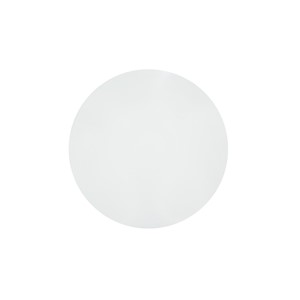

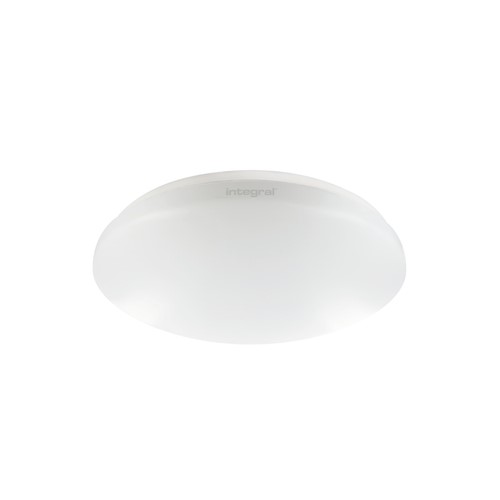

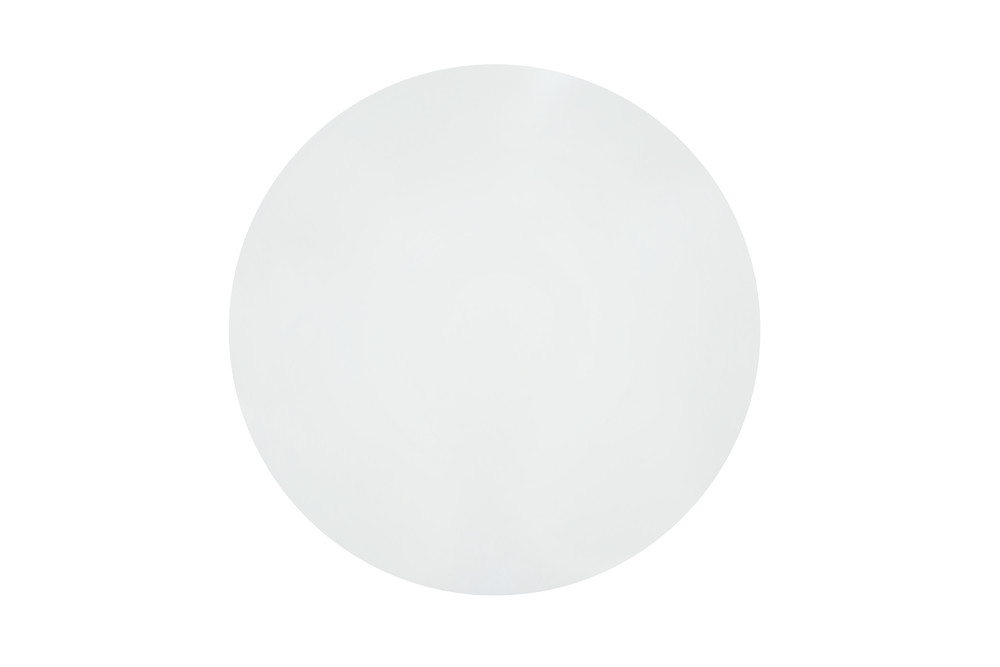

VALUE+ CEILING/WALL LIGHT 250MM DIA IP44 800LM 10W 4000K 100 BEAM NON-DIMM 80LM/W INTEGRAL
Part Number:
ILBHE025
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT
Low-energy LED IP44 Value+ ceiling and wall light, suitable for all indoor areas such as hallways, stairways, walls and ceilings including bathrooms (Zone 2) and covered (sheltered) external areas, such as porches. PMMA Diffuser provides a soft light. Long life expectancy of 25,000 hours based on normal usage. 2 year warranty.
- Product Feature 1:
- Flush-fit
- Product Feature 2:
- Soft light for walls and ceilings
- Product Feature 3:
- Easy installation
- Product Feature 4:
- 800 Lumens
- Availability:
-
1
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 337320 |
|---|---|
| Barcode | 5055788223665 |
| Category | Luminaires |
| Range Name | Value+ |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Standard |
| Warranty (Years) | 2 |
Physical Data
| Product Depth (mm) | 85 |
|---|---|
| Product Weight (g) | 360 |
| Diameter (mm) | 250 |
| Optic | PMMA diffuser |
| Material | PMMA, Metal |
| Overall diameter (mm) | 250 |
| Construction | Metal base and PMMA diffuser |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, General Lighting |
| Wiring / Mounting Options | Rear Only |
Light Data
| Energy Efficiency Label (Image) | ILBHE025_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 800 |
| Luminous efficacy (lm/W) | 80 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 100 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Sensor / Overide | No |
| Switching Cycles | 12500 |
Electrical Data
| Power (W) | 10 |
|---|---|
| Power Consumption (W) | 10 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 82 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Lumens (lm) | No |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 596 |
|---|---|
| Package Length (mm) | 275 |
| Package Width (mm) | 275 |
| Package Depth (mm) | 105 |
| Qty per euro pallet | 120 |
