SURFACE EMERGENCY DOWNLIGHT IP44 130LM 1W 6000K 3HR NON-MAINTAINED CORRIDOR TEST BUTTON INTEGRAL
ILEMDL064

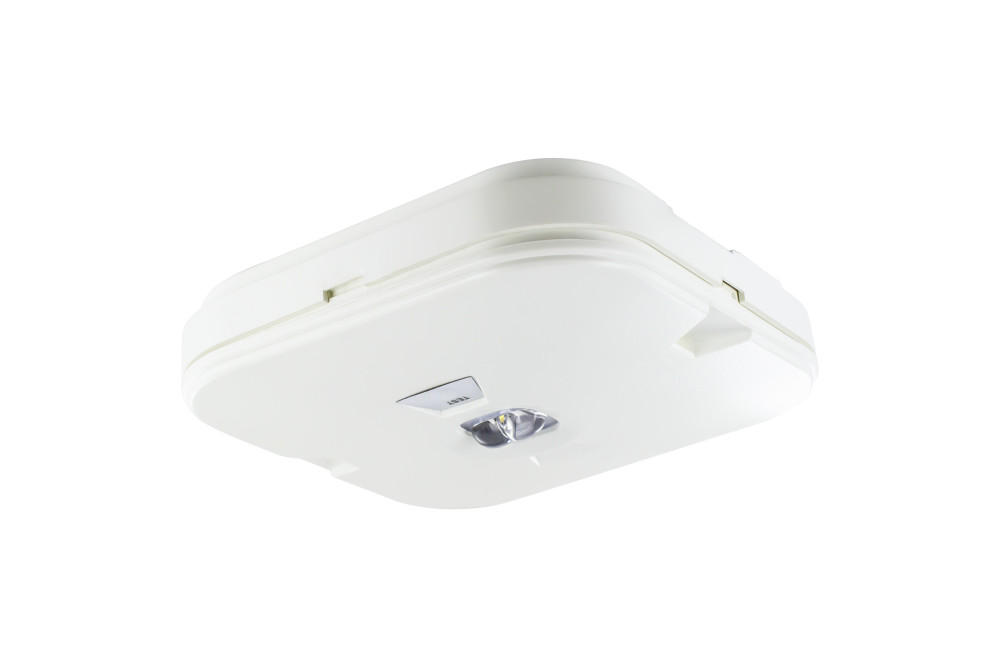

This compact and attractive surface mounted emergency downlight provides three hours of light in the case of a power outage. This white downlight features specially engineered optics that project light in a narrow beam for illuminating corridors.Note: Warranty increased to 5 years on 27/03/2025
Details
- Barcode:
- 5055788239772
- Quick Order Code:
- 101191
- Category:
- Emergency
- Range Name:
- Surface-Mounted
- Product Type:
- Emergency Downlights
- Product Body Finish:
- Matt white
- Market Segment:
- Commercial indoor
- Finish:
- Matt White
- Features:
- Emergency Function
- Warranty (Years):
- 5
- CE RoHS:
- Yes
Physical Data
- Product Length (mm):
- 130
- Product Depth (mm):
- 35
- Product Width (mm):
- 130
- Product Weight (g):
- 220
- Optic:
- Polycarbonate
- Material:
- Polycarbonate
- Construction:
- Injection moulding
- Bulb or Luminaire Shape:
- Rounded square
- Luminaire Fixing:
- Ceiling
- Mounting Type:
- Rear Cable Entry
- Placement / Application:
- Indoor, Emergency Lighting
Electrical Data
- Voltage Range (v):
- 220-240
- Input Voltage (V):
- 220-240
- Dimming:
- Non-Dimmable
- Driver Included:
- Yes
- Electric Current:
- AC
- Emergency Lumens (lm):
- 130
- Emergency Type:
- Non-Maintained
- EN:
- EN-60598
- LVD Certified:
- Yes
Light Data
- Correlated Colour Temperature (CCT) (K):
- 6000
- Colour Temperature Name:
- Cool Daylight
- Beam Angle:
- 160
- Colour Rendering Index (CRI):
- 80
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- Lumens in Emergency mode (lm):
- 130
- Useful Lumens (lm):
- 130
Environment
- EN:
- EN-60598
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- EU Luminaire:
- L
- Hg 0% (Mercury Free):
- Yes
- IK Rating (Impact Protection):
- IK08
- IP Rating (Ingress Protection):
- IP44
- Lowest Operating Temperature (°C):
- 0
- Maximum Operating Temperature (°C):
- 45
Packaging
- Package Length (mm):
- 230
- Package Width (mm):
- 160
- Package Depth (mm):
- 132
