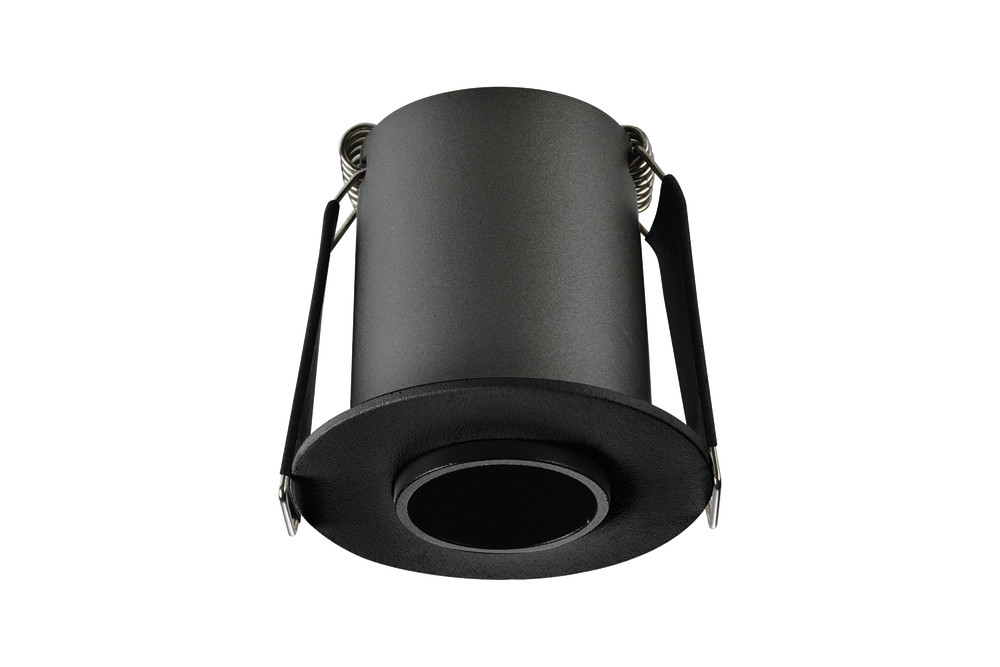

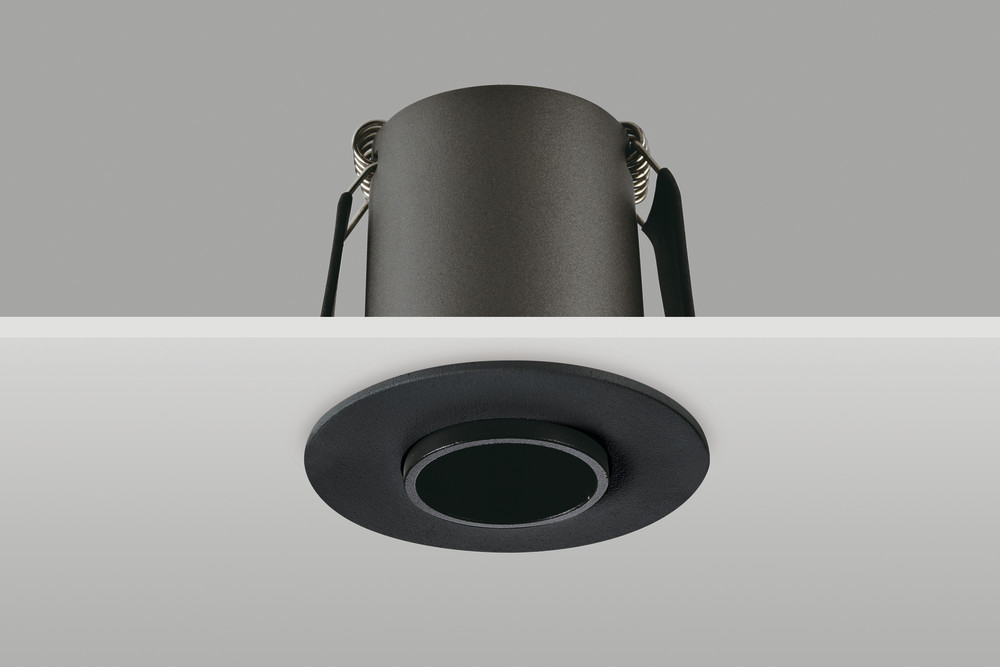

HI-BRITE DOWNLIGHT 45MM CUTOUT 9W 550LM 63LM/W 4000K 30 BEAM DIMMABLE FINISH-A BLACK INTEGRAL

Part Number:

ILDL45K008

Lux Hi-Brite range is uniquely designed to provide maximum lumen output from a very compact body. Minimum glare is achieved from a deep-recessed construction, guaranteeing comfortable light.

Lux Hi-Brite downlights are ideal for applications requiring high performance in limited spaces, such as hospitality, retail or commerce. The stylish fixed and tiltable finishes can illuminate a wide range of areas. Complement with Lux Mini range for coherent multilevel lighting design.

Product Feature 1:
45mm cut out
Product Feature 2:
550lm
Product Feature 3:
30 Degrees Beam
Product Feature 4:
63lm/W
Product Feature 5:
4000K
Product Feature 6:
Fixed
Product Feature 7:
Dimmable
Availability:
96

Call us on 0208 451 8700 to check the next availability

Barcode 5055788250616
Category Downlights
Range Name Lux Hi-Brite 45
Product Type LED Downlights
Product Body Finish Matt Black
Market Segment Commercial indoor, Residential indoor
Finish Matt Black
Fixed/Tiltable Fixed
Warranty (Years) 3
Product Depth (mm) 56
Product Weight (g) 200
Diameter (mm) 60
Optic PMMA lens
Material Aluminium
Overall diameter (mm) 60
Cut Out Diameter (mm) 45
Luminaire Fixing Wall/Ceiling mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILDL45K008_EU_label
Luminous Flux in Lumens (lm) 550
Luminous efficacy (lm/W) 63
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 30
Colour Rendering Index (CRI) 80
LED Type Chip-on-board (COB)
Lifetime (hours) 60000
Switching Cycles 15000
Power (W) 9
Power Consumption (w) 9
Dimming Dimmable
Driver Included Yes
EN EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified Yes
EN EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
Package Weight (g) 270
Package Length (mm) 125
Package Width (mm) 110
Package Depth (mm) 75

Product Specification Sheet

LDT Files

Installation Guides
