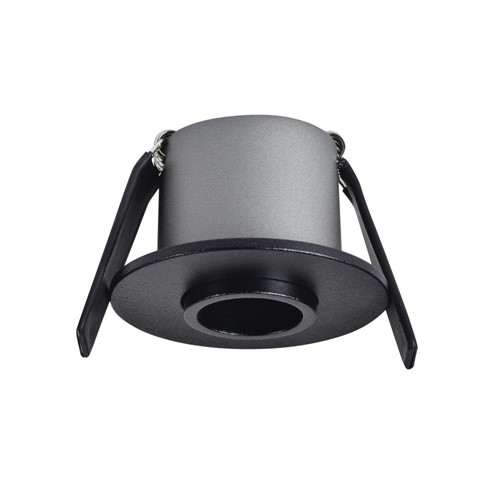

MINI DOWNLIGHT 35MM CUTOUT 3.3W 145LM 44LM/W 3000K 15 BEAM NON-DIM FINISH-A BLACK INTEGRAL
Part Number:
ILDL35J002
Lux Mini range offers extremely high CRI 95 designed to enrich the vibrancy of colours, a narrow beam of 15 Degrees enables the precise placement of accent lighting. This family of miniature downlights stands out as the ideal choice for home, retail, hospitality and artistic applications, helping to enhance the appearance of colours in fabrics, products and art. Complement with Lux Hi-Brite range for coherent multi-level lighting design.
- Product Feature 1:
- High CRI 95
- Product Feature 2:
- 35mm cut out
- Product Feature 3:
- Driver dimensions L76 x W22 x H20mm
- Product Feature 4:
- 145lm
- Product Feature 5:
- 15 Degrees Beam
- Product Feature 6:
- 3000K
- Product Feature 7:
- Fixed
- Product Feature 8:
- Non-Dimmable
- Availability:
-
100+
More stock due in on 17/03/2025
Details
| Quick Order Code | 906614 |
|---|---|
| Barcode | 5055788250371 |
| Category | Downlights |
| Range Name | Lux Mini 35 |
| Product Type | LED Downlights |
| Product Body Finish | Matt Black |
| Market Segment | Accent lighting |
| Finish | Matt Black |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 29 |
|---|---|
| Product Weight (g) | 110 |
| Diameter (mm) | 50 |
| Optic | PMMA lens |
| Material | Aluminium |
| Overall diameter (mm) | 50 |
| Cut Out Diameter (mm) | 35 |
| Luminaire Fixing | Wall/Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDL35J002_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 145 |
| Luminous efficacy (lm/W) | 44 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 15 |
| Colour Rendering Index (CRI) | 95 |
| LED Type | Surface mounted device (SMD) |
| Switching Cycles | 15000 |
Electrical Data
| Power (W) | 3.3 |
|---|---|
| Power Consumption (W) | 3.3 |
| Voltage Range (v) | 220-240VAC 50/60Hz |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| EN | EN 60598, EN 55015, EN 61547, EN 61000 |
| LVD Certified | Yes |
Environmental
| EN | EN 60598, EN 55015, EN 61547, EN 61000 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 150 |
|---|---|
| Package Length (mm) | 95 |
| Package Width (mm) | 90 |
| Package Depth (mm) | 55 |
Safety Guide
ILDL35J002
