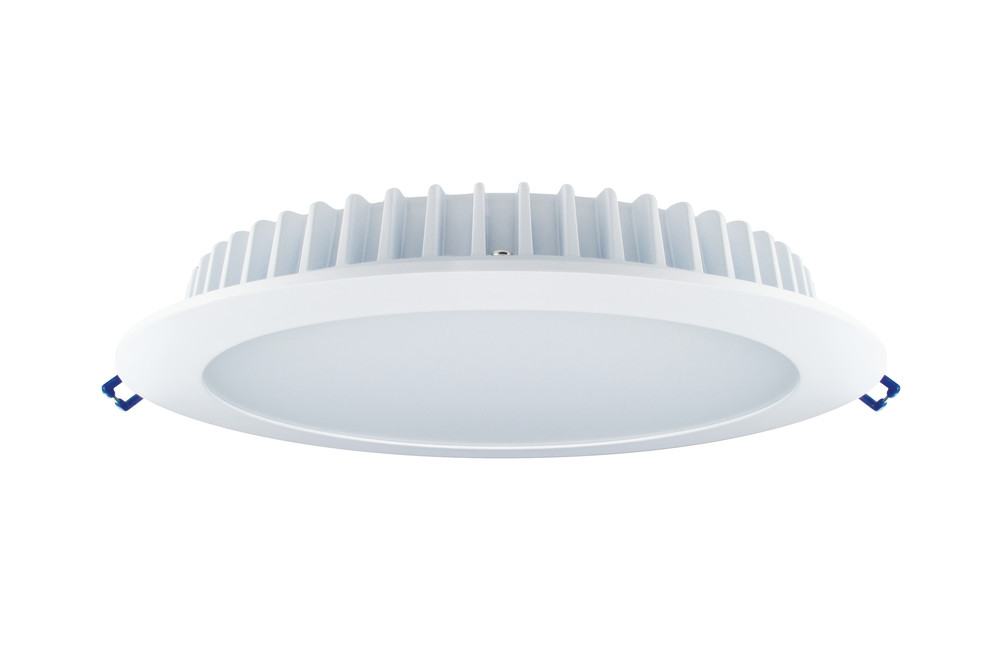

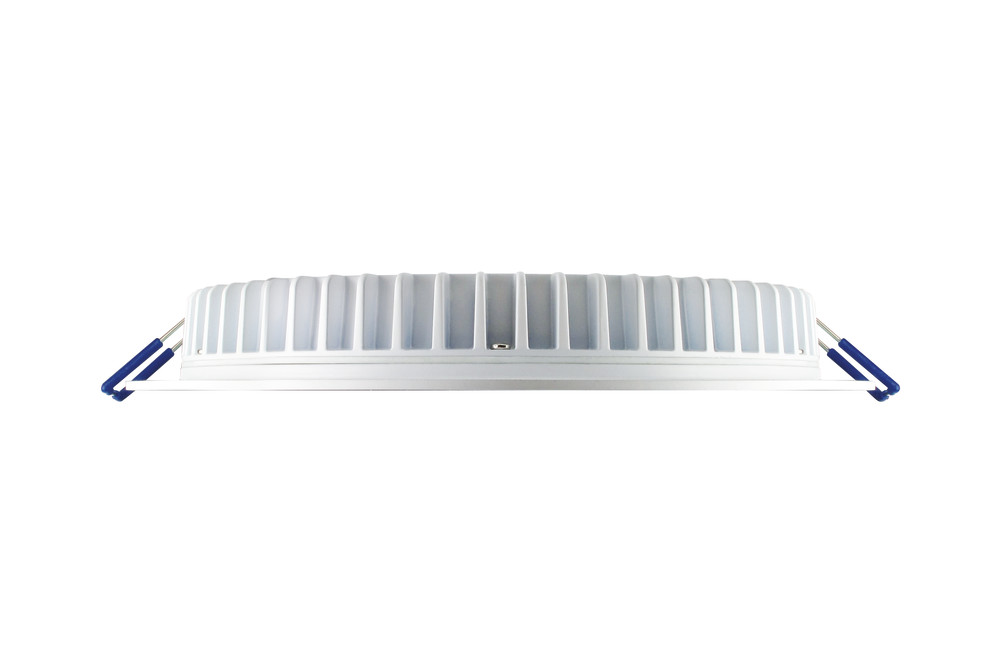

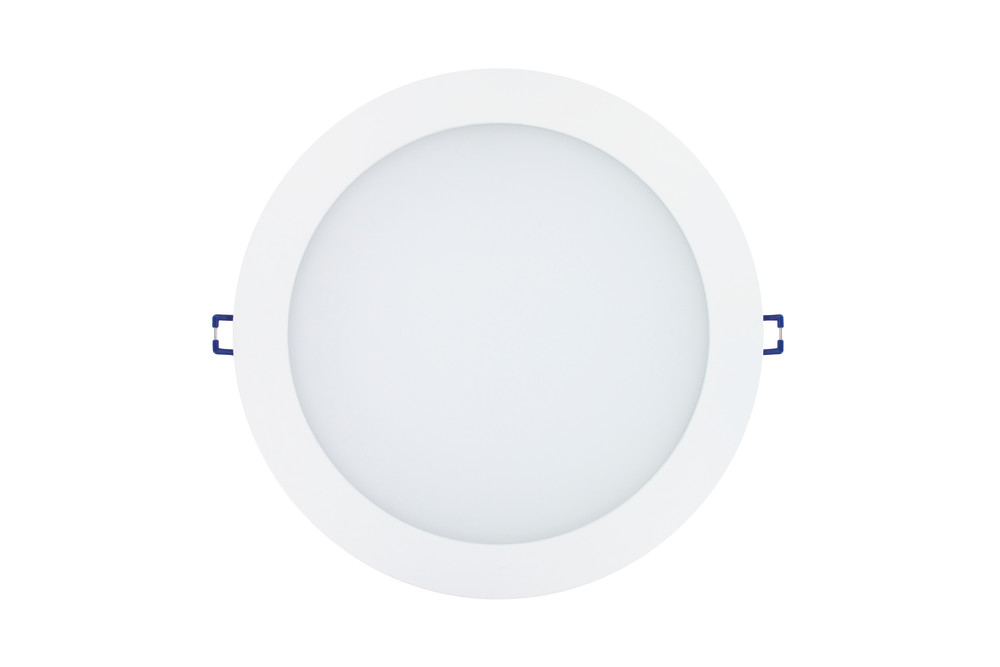

PERFORMANCE+ DOWNLIGHT 95MM CUTOUT 500LM 6W 3000K TRIAC DIMMABLE 83LM/W IP54 WHITE
Part Number:
ILDL95F011
The Integral LED 6W Watt Downlight delivers a warm white light and equivalent light output to traditional compact fluorescent. It incorporates a Polycarbonate diffuser and excellent thermal management to ensure a consistent light, long life and minimal maintenance. Ideal for commercial offices and buildings, retail premises and airports.
A constant current dimmable LED Driver is included as standard in this product. All Integral LED drivers and downlights benefit from our simple click and lock connectivity system.
- Product Feature 1:
- Warm white
- Product Feature 2:
- 500lm
- Product Feature 3:
- Dimmable
- Product Feature 4:
- 83lm/W
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 826522 |
|---|---|
| Barcode | 5055788253488 |
| Category | Downlights |
| Range Name | Performance+ |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Downlights |
| Product Depth (mm) | 24 |
| Product Weight (g) | 250 |
| Diameter (mm) | 110 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate |
| Overall diameter (mm) | 110 |
| Construction | Die cast Aluminium heat-sink and body, Polycarbonate sheet diffuser |
| Cut Out Diameter (mm) | 95 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 500 |
|---|---|
| Luminous efficacy (lm/W) | 83 |
| Peak Intensity (Cd) | 200 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 20000 |
Electrical Data
| Power (W) | 6 |
|---|---|
| Power Consumption (W) | 6 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 13 |
| Wattage Saving (W) | 7 |
| Dimming | TRIAC |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP54 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 300 |
|---|---|
| Package Length (mm) | 130 |
| Package Width (mm) | 130 |
| Package Depth (mm) | 65 |
