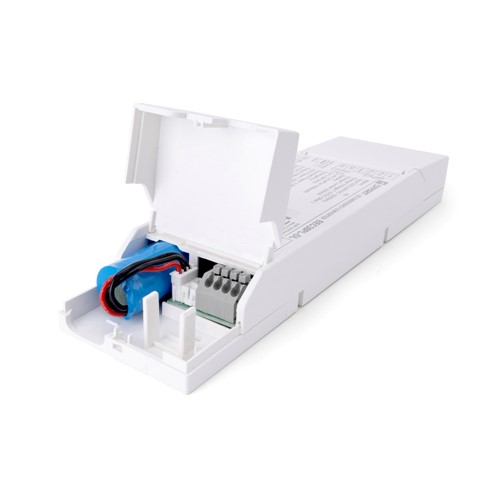

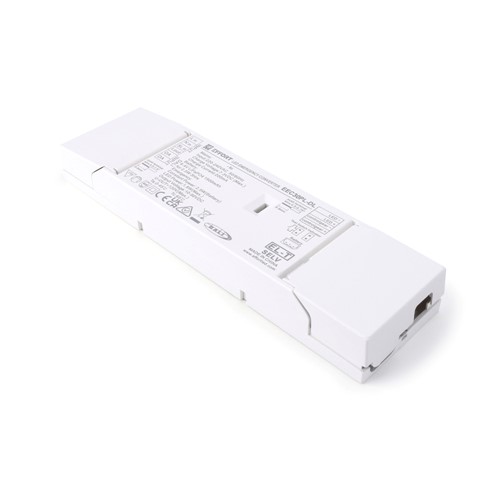

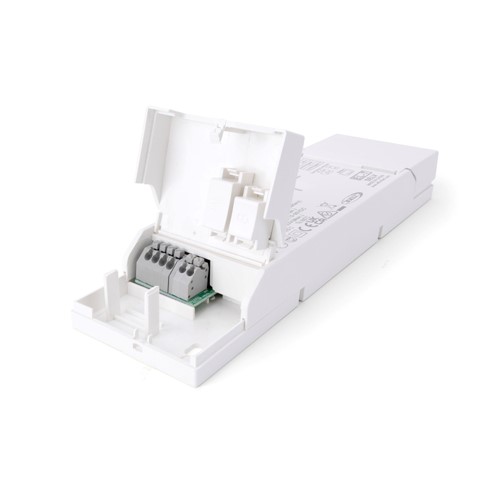

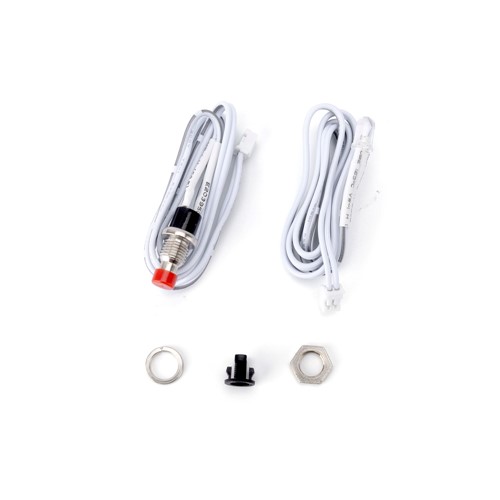

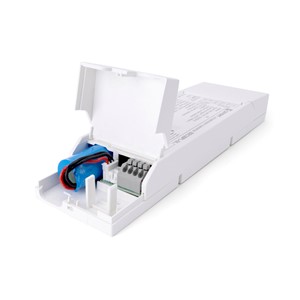

EMERGENCY CONVERSION KIT 2.5W 10-90VDC 3HR WITH REMOTE LED INDICATOR DALI
Part Number:
ILEMPK013
The DALI-enabled Emergency Conversion Kit allows existing lighting systems to be converted to emergency operation. It provides 3 hours of backup power and includes a remote LED indicator for monitoring. Its DALI functionality ensures that it integrates seamlessly into modern lighting systems.
- Product Feature 1:
- 2.5-5W
- Product Feature 2:
- Lithium Phosphate battery
- Product Feature 3:
- 3 Year Warranty
- Product Feature 4:
- Easy installation
- Product Feature 5:
- 3 Hour Emergency Operation
- Availability:
-
0
More stock due in on 27/12/2024
Details
| Quick Order Code | 548699 |
|---|---|
| Barcode | 5055788300601 |
| Category | Emergency |
| Range Name | Conversion Kit |
| Product Type | Emergency Conversion Kit |
| Product Body Finish | Matt white. End cap blue |
| Market Segment | Commercial indoor |
| Finish | Matt white. End cap blue |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Emergency Category | Emergency Kit |
| Product Length (mm) | 199 |
| Product Depth (mm) | 24.5 |
| Product Width (mm) | 55.2 |
| Product Weight (g) | 215 |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Luminaire Fixing | In Ceiling |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power Consumption (W) | 2.5 |
|---|---|
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | LiFePo4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| CE RoHS | Yes |
|---|---|
| IK Rating (Impact Protection) | IK04 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 250 |
|---|---|
| Package Length (mm) | 240 |
| Package Width (mm) | 58 |
| Package Depth (mm) | 28 |
