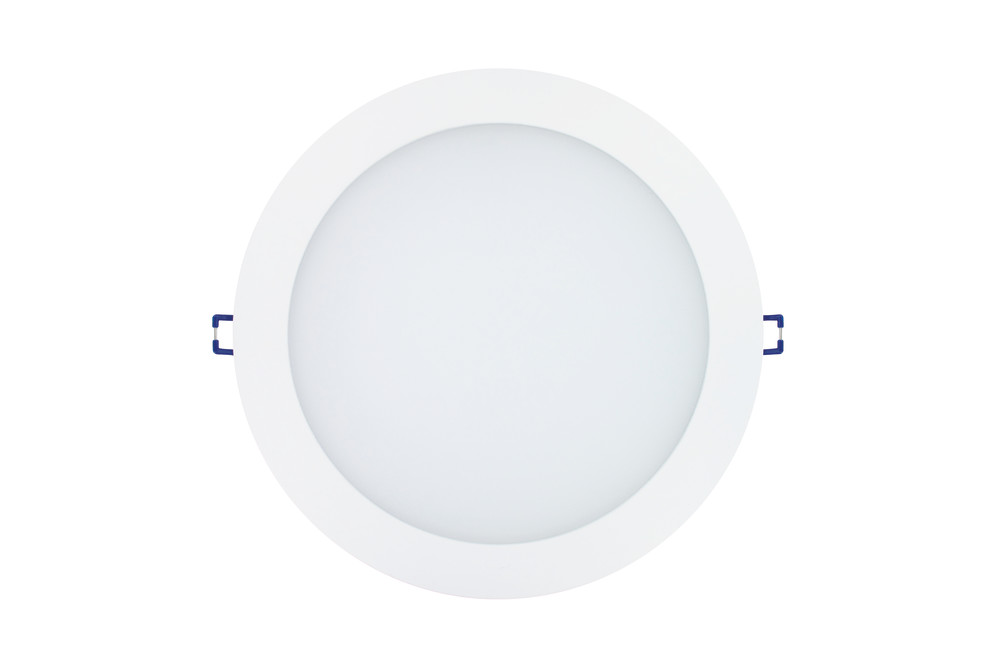

PERFORMANCE+ DOWNLIGHT 145MM CUTOUT 850LM 8W 4000K TRIAC 93LM/W WHITE

Part Number:

ILDL145F016

The Integral LED 8W Watt Downlight delivers a cool white light and equivalent light output to traditional compact fluorescent. It incorporates a Polycarbonate diffuser and excellent thermal management to ensure a consistent light, long life and minimal maintenance. Ideal for commercial offices and buildings, retail premises and airports.

A constant current dimmable LED Driver is included as standard in this product. All Integral LED drivers and downlights benefit from our simple click and lock connectivity system.

Product Feature 8:
Product Feature 1:
Cool White
Product Feature 2:
850lm
Product Feature 3:
Dimmable
Product Feature 4:
88lm/W
Product Feature 5:
Product Feature 6:
Product Feature 7:
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Application
Mounting Type (Emergency)
Barcode 5055788253532
Category Downlights
Range Name Performance+
Type
Product Type LED Downlights
Product Body Finish Matt white
Market Segment Commercial indoor
Finish
Features
Fixed/Tiltable
Warranty (Years) 5
Strip Cut Points
Emergency Option Optional Conversion Kit
Size (in ft)
PIR
Emergency Category Downlights
Product Length (mm)
Product Depth (mm) 26
Product Width (mm)
Product Weight (g) 350
Diameter (mm) 160
Optic Polycarbonate diffuser
Material Aluminium, Polycarbonate
Overall diameter (mm) 160
Base Term
Bulb Base
Construction Die cast Aluminium heat-sink and body, Polycarbonate sheet diffuser
Cut Out Diameter (mm) 145
Cut Out Length (mm)
Strip Cut Points (mm)
Cut Out Width (mm)
Globe Finish
Globe Type
Handheld or Wall Mount
Bulb Fixing
Bulb or Luminaire Shape
Luminaire Fixing Recess mounted
Max Run Length (m)
Max Strip Width (mm)
Mounting Type
Panel Equivalent
Placement / Application Indoor, General Lighting
Spot Type
Strip length (M)
Strip Width (mm)
Typical Mounting Height
Wiring / Mounting Options
Zones
Profile Height (in mm)
Profile Width
Length (m)
Beam Type
Dimming Range %
Lumen output
Luminous Flux in Lumens (lm) 850
Luminous efficacy (lm/W) 106
Lumens per meter (lm/m)
Maximum Luminous Intensity at 65
Peak Intensity (Cd) 430
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 90
Colour Rendering Index (CRI) 80
Colour Type
Compatible Dimmers
Fire Rating (mins)
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
Integrated Light Source
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
LEDs per meter
Lifetime (hours) 50000
Lighting Method
Lumens in Emergency mode (lm)
Sensor / Overide
Switching Cycles 20000
Unified Glare Rating (UGR)
Useful Lumens (lm)
Power (W) 8
Power Consumption (w) 8
Power Consumption per meter (W/m)
Power Factor 0.5
Voltage (V)
Wattage equivalent (W) 18
Wattage Saving (W) 10
Amperage (mA)
Input Current (A)
Input Voltage (V)
Output Current (mA)
Output Voltage (V)
Battery Configuration
Dimming Non-Dimmable
Driver IC Manufacturer
Driver Included Yes
Electric Current AC
Emergency Battery Life (years)
Emergency Lumens (lm)
Emergency Type
Insulation Guard
Protection Function
True Wattage Eq (W)
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Energy Rating
EU Luminaire
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection)
IP Rating (Back/Recessed side)
IP Rating (Ingress Protection) IP54
Lowest Operating Temperature (°C) -20
Max Strip IP Rating
Maximum Operating Temperature (°C) 40
Metal Halide Equivalent
Profile IP Rating
TP rating
Package Weight (g) 400
Package Length (mm) 170
Package Width (mm) 170
Package Depth (mm) 65
Qty per euro pallet
Installation Guide
LDT File
IES File
Polar Curve
PDF strip image

Product Specification Sheet
