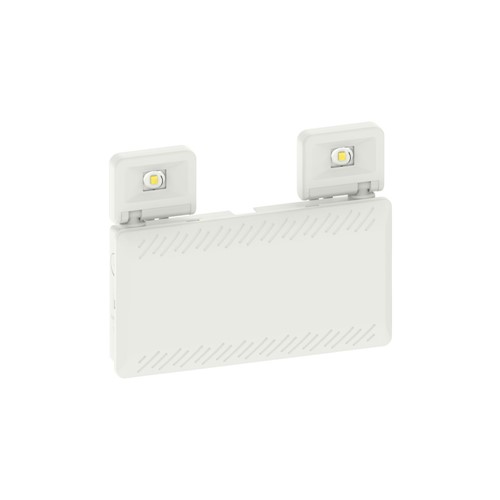

EMERGENCY TWINSPOT IP65 5W 500LM NON-MAINTAINED MANUAL TEST 6000K INTEGRAL LED
Part Number:
ILEMTS036
- Product Feature 1:
- Attractive design
- Product Feature 2:
- IP65
- Product Feature 3:
- Directional and adjustable spotlights
- Product Feature 4:
- 3 Year warranty
- Product Feature 5:
- Easy Installation
- Product Feature 6:
- 3 Hour Emergency Operation
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Application | Open Area |
|---|---|
| Quick Order Code | 832767 |
| Barcode | 5055788288886 |
| Category | Emergency |
| Range Name | Twin Spot |
| Product Type | Emergency Floodlights |
| Product Body Finish | White |
| Market Segment | Commercial indoor |
| Finish | White |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Twin Spots |
| Product Length (mm) | 270 |
| Product Depth (mm) | 45 |
| Product Width (mm) | 210 |
| Product Weight (g) | 800 |
| Optic | Clear Refractor |
| Material | Polycarbonate |
| Construction | Polycarbonate |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 500 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 6000 |
| Colour Temperature | 6000K - Cool Daylight |
| Colour Temperature Name | Daylight |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 3535 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 60 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 500 |
Electrical Data
| Power Consumption (W) | 5 |
|---|---|
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | LiFePo4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| Emergency Lumens (lm) | 500 |
| Emergency Type | Non-Maintained |
| Protection Function | Short circuit, overload and over heating |
| EN | EN-60608 |
| LVD Certified | Yes |
Environmental
| EN | EN-60608 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK07 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 850 |
|---|---|
| Package Length (mm) | 420 |
| Package Width (mm) | 340 |
| Package Depth (mm) | 65 |
Safety Guide
ILEMTS036
