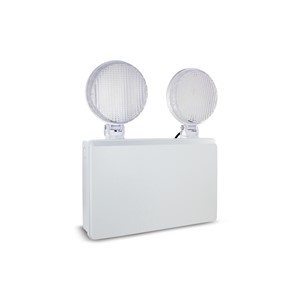

TWIN SPOT EMERGENCY LUMINAIRE 4W 400LM NON MAINTAINED IP20 6500K SELF TEST INTEGRAL LED
ILEMTS033
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT. Our new comprehensive Twin Spot Emergency Floodlights provide for both indoor offices and retail use with an attractive IP20 model and a more sturdy IP65 option for factories and warehouses.Note: Warranty increased to 5 years on 27/03/2025
Details
- Barcode:
- 5055788253907
- Quick Order Code:
- 259636
- Category:
- Emergency
- Range Name:
- Twin Spot
- Product Body Finish:
- White
- Market Segment:
- Commercial indoor
- Finish:
- White
- Warranty (Years):
- 5
- CE RoHS:
- Yes
Physical Data
- Product Length (mm):
- 287
- Product Depth (mm):
- 55
- Product Width (mm):
- 255
- Product Weight (g):
- 800
- Optic:
- Clear Refractor
- Material:
- Polycarbonate
- Bulb or Luminaire Shape:
- Rectangle
- Luminaire Fixing:
- Wall
- Placement / Application:
- Indoor, Emergency Lighting
- Spot Type:
- SMD
Electrical Data
- Power (W):
- 4.5
- Power Consumption (W) :
- 4.5
- Voltage Range (v):
- 220-240
- Input Voltage (V):
- 220-240
- Battery Configuration:
- 3.2V 1500/3000mAH LIFePO4, 24 hours to charge
- Dimming:
- Non-Dimmable
- Driver Included:
- Yes
- Electric Current:
- AC
- Emergency Battery Life (years):
- 2
- Emergency Lumens (lm):
- 400
- Protection Function:
- Short circuit, overload and over heating
- EN:
- EN-60608
- LVD Certified:
- Yes
Light Data
- Luminous Flux in Lumens (lm):
- 400
- Luminous efficacy (lm/W):
- 89
- Correlated Colour Temperature (CCT) (K):
- 6500
- Colour Temperature:
- 6500K - Cool Daylight
- Colour Temperature Name:
- Cool Daylight
- Colour Rendering Index (CRI):
- 80
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- LED Size (mm):
- 2835
- LED Type:
- Surface mounted device (SMD)
- Lifetime (hours):
- 35000
- Lighting Method:
- Back-lit
- Switching Cycles:
- 15000
- Useful Lumens (lm):
- 400
Environment
- EN:
- EN-60608
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- Hg 0% (Mercury Free):
- Yes
- IP Rating (Back/Recessed side):
- IP20
- IP Rating (Ingress Protection):
- IP20
- Lowest Operating Temperature (°C):
- 0
- Maximum Operating Temperature (°C):
- 45
Packaging
- Package Weight (g):
- 850
- Package Length (mm):
- 400
- Package Width (mm):
- 320
- Package Depth (mm):
- 60
