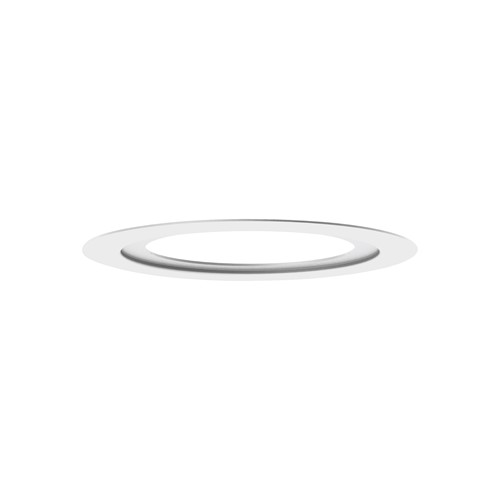

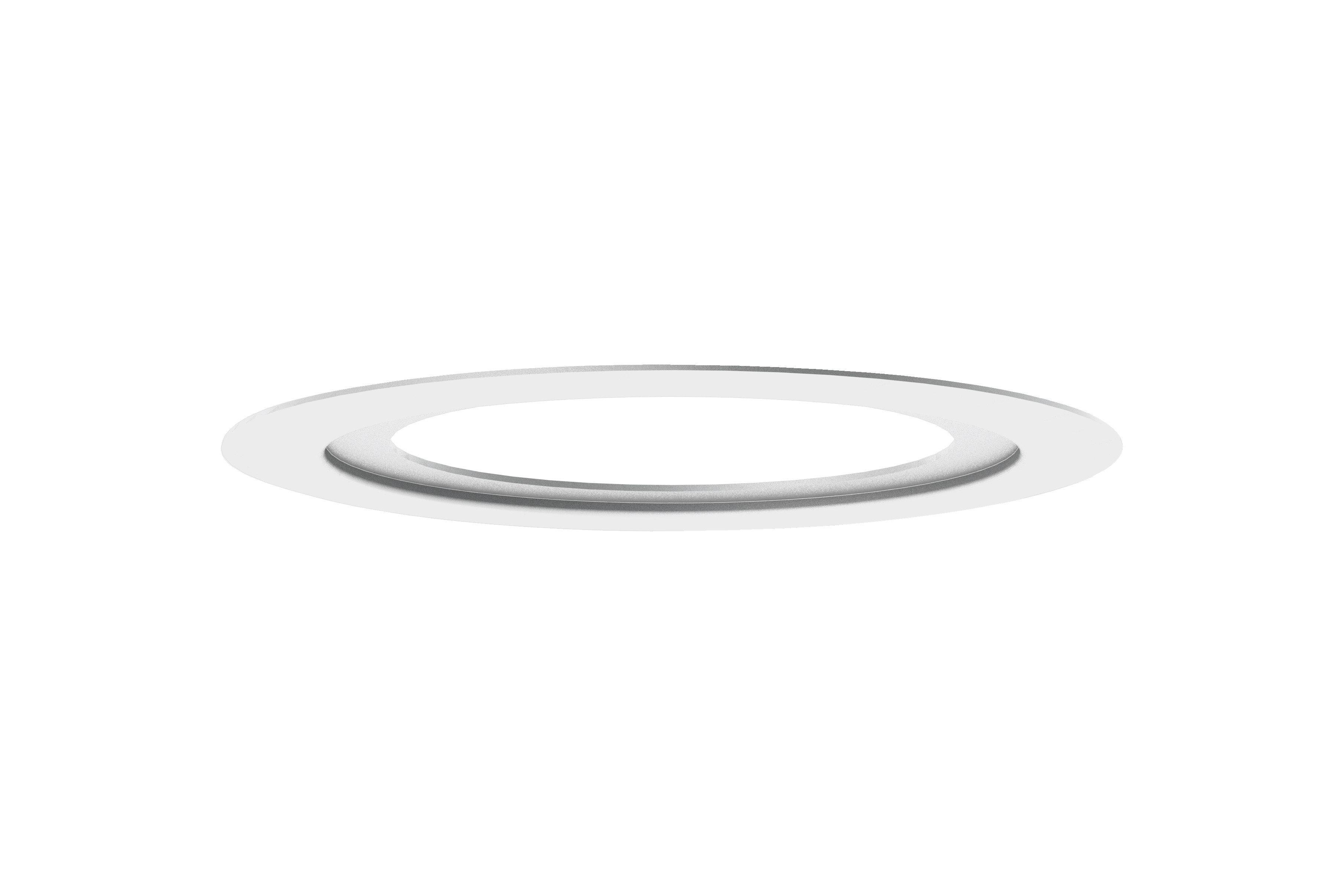

EVOFIRE FIRE RATED DOWNLIGHT 70-100MM CUTOUT IP65 WHITE ROUND ADAPTER INTEGRAL
Part Number:
ILDLFR70D005
This high quality, powder coated Adapter expands the bezel of the round Evofire Fire Rated Downlight to increase its cutout diameter to up to 100mm. The Evofire will maintain IP65 and 30, 60 and 90 minutes Fire Rating while using the adapter.
- Product Feature 1:
- Expands the cutout diameter of the round Evofire Downlight from 70mm to up to 100mm
- Product Feature 2:
- High quality powder-coated finish
- Product Feature 3:
- Toughened steel
- Product Feature 4:
- Matt-white
https://www.youtube.com/watch?v=oCQKuhZi-vg
- Availability:
-
1000+
More stock due in on 15/01/2025
Suggested products
Details
| Quick Order Code | 136957 |
|---|---|
| Barcode | 5055788228561 |
| Category | Downlights |
| Range Name | Evofire |
| Product Type | Fire Rated |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Matt White |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 3 |
|---|---|
| Product Weight (g) | 0.045 |
| Diameter (mm) | 111.6, 110 |
| Material | Steel |
| Overall diameter (mm) | 110 |
| Construction | Pressed Steel |
| Cut Out Diameter (mm) | 100 |
| Bulb or Luminaire Shape | Adapter |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Fire Rating (mins) | 30, 60, 90 |
|---|
Electrical Data
| Insulation Guard | No |
|---|
Environmental
| CE RoHS | Yes |
|---|---|
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
Packaging
| Qty per euro pallet | 9000 |
|---|
