EVOFIRE FIRE RATED DOWNLIGHT 70MM CUTOUT 3PACK IP65 WHITE ROUND +GU10 HOLDER & INSULATION GUARD INTEGRAL
Part Number:
ILDLFR70D003-3
The Evofire Fire Rated Downlight is a safe and attractive fitting for a GU10 or MR16 LED lamp. The fully open design of the Evofire does not conceal your lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance. Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of your lamps.
As well being very tough thanks to its steel construction, The Evofire is also a highly aesthetic choice for Fire Rated lighting. The 1mm blend-in bezel is up to 10 times thinner than typical IP65 rated downlights, has a high quality powder coating and fits almost flush with your ceiling, so the downlight looks discreet and pleasing in any setting.
Featuring a built-in Insulation Guard which allows loft insulation to be safely laid on top of the downlight, while maintaining air-flow around the lamp.
This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.

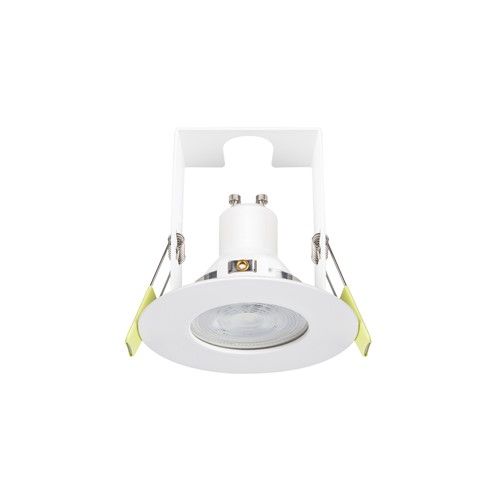

Evofire shown with Real Colour GU10 LED lamp (sold separately).
- Product Feature 1:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 2:
- Developed in the UK - Patent GB2557957
- Product Feature 3:
- Fire Rating 30/60/90 minutes - Tested in UKAS Accredited Lab
- Product Feature 4:
- Ultra-thin 1mm 'blend-in' bezel
- Product Feature 5:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 6:
- Supplied with GU10 holder
- Availability:
-
1000+
More stock due in on 05/03/2025
Suggested products
Details
| Quick Order Code | 136252 |
|---|---|
| Barcode | 5055788228530 |
| Category | Downlights |
| Range Name | Evofire |
| Product Type | Fire Rated |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Matt White |
| Features | With Insulation Guard |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 83 |
|---|---|
| Product Weight (g) | 491 |
| Diameter (mm) | 85 |
| Material | Steel, Glass |
| Overall diameter (mm) | 85 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 70 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Fire Rating (mins) | 30, 60, 90 |
|---|
Electrical Data
| Insulation Guard | Yes |
|---|
Environmental
| CE RoHS | Yes |
|---|---|
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
Packaging
| Package Weight (g) | 506 |
|---|---|
| Package Length (mm) | 185 |
| Package Width (mm) | 105 |
| Package Depth (mm) | 125 |
| Qty per euro pallet | 544 |
