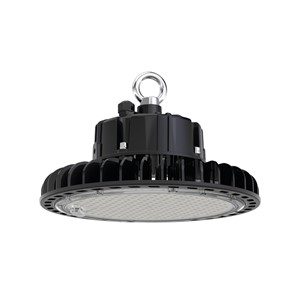

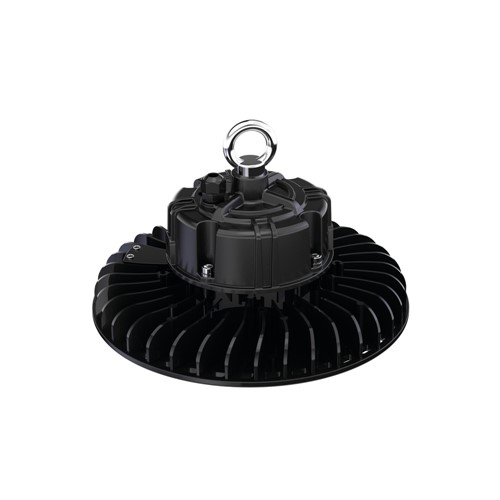

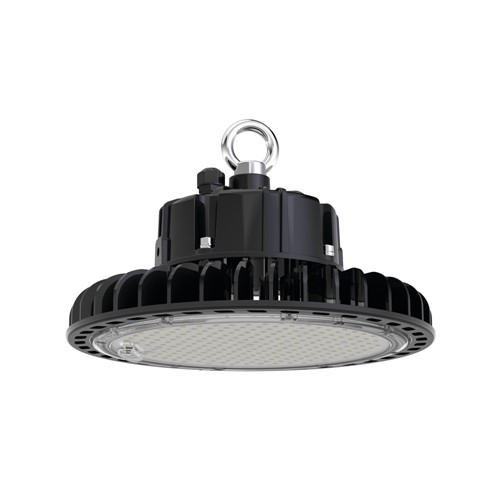

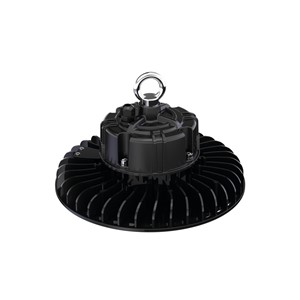

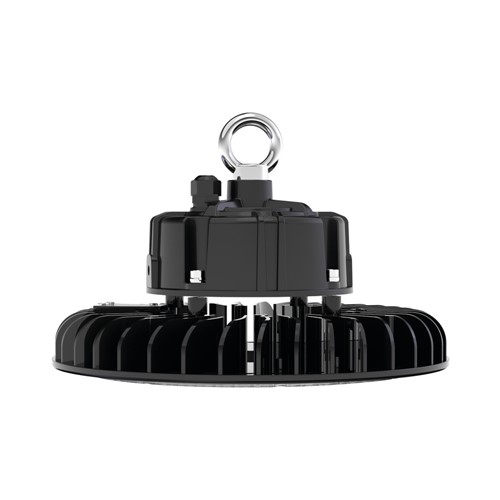

PERFORMANCE CIRCULAR HIGH BAY 1PK IP65 10400LM 80W 4000K 120 BEAM 1-10V DIMMABLE INTEGRAL
Part Number:
ILHBC242
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Bright, efficient and adaptable, the Perform Circular High Bay offers a range of options for bringing bright light to large indoor facilities, while reducing glare with its range of diffuser and reflector accessories. All models are rated IK08 and run at 130lm/W.
- Product Feature 1:
- Low Weight
- Product Feature 2:
- 1-10V Dimmable
- Product Feature 3:
- 120 degree beam angle
- Product Feature 4:
- 130lm/W
- Product Feature 5:
- Cool White
- Product Feature 6:
- 5 Year Warranty
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 716183 |
|---|---|
| Barcode | 5055788239598 |
| Category | Luminaires |
| Range Name | Perform |
| Type | Circular |
| Product Type | Circular High Bay |
| Product Body Finish | Matt Black |
| Market Segment | Commercial indoor, Industrial indoor |
| Finish | Matt Black |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Linkable | No |
| Product Length (mm) | 118.1 |
| Product Weight (g) | 2350 |
| Diameter (mm) | 240 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate |
| Construction | Aluminium heat-sink, PC injection moulded driver case |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Suspended |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Indoor, Outdoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILHBC242_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 10400 |
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 3030 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 100000 |
| Switching Cycles | 20000 |
| Useful Lumens (lm) | 10400 |
Electrical Data
| Power Consumption (W) | 80 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 100-277 |
| Wattage equivalent (W) | 240 |
| Input Voltage (V) | 220-240 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Package Weight (g) | 2380 |
|---|---|
| Package Length (mm) | 300 |
| Package Width (mm) | 300 |
| Package Depth (mm) | 180 |
Safety Guide
ILHBC242
