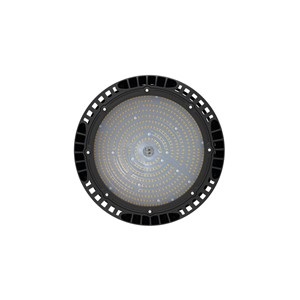

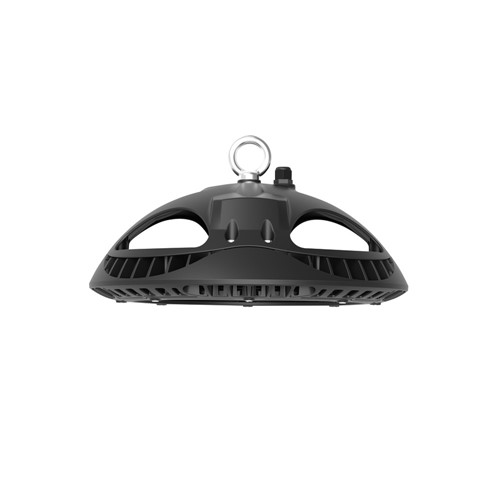

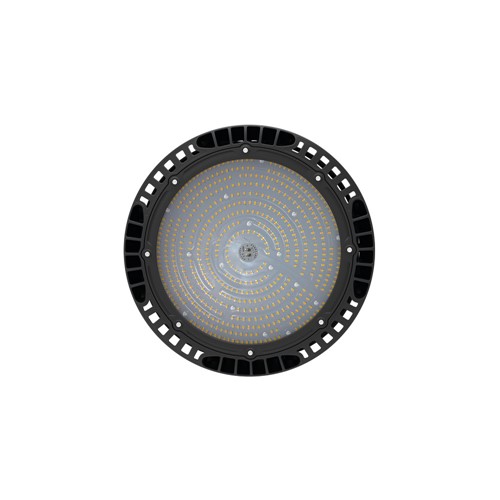

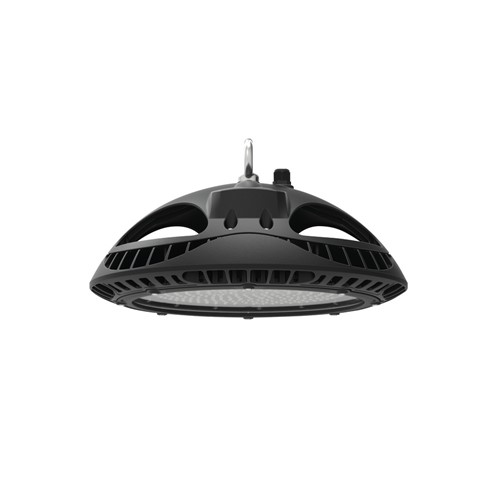

TOUGHSHELL CIRCULAR HIGH BAY 1PK IP65 36000LM 240W 4000K 120 BEAM NON-DIMM INTEGRAL

Part Number:

ILHBC112

THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT

The Tough-Shell Circular High Bay is a rugged, attractive and highly efficient solution for lighting large indoor facilities such as warehouses, production facilities and indoor sports halls. Running at an efficacy of 150lm/W, the Tough-Shell provides 36,000lm and thanks to its skilfully engineered aluminium body it effectively dissipates heat while maintaining IK08 impact resistance.

Product Feature 8:
Product Feature 1:
120 degree beam angle
Product Feature 2:
150lm/W
Product Feature 3:
Cool White
Product Feature 4:
Non-Dimmable
Product Feature 5:
5 Year Warranty
Product Feature 6:
Product Feature 7:
Availability:
0

Call us on 0208 451 8700 to check the next availability

Suggested products

Application
Mounting Type (Emergency)
Barcode 5055788239246
Category Luminaires
Range Name Tough-Shell
Type Circular
Product Type Circular High Bay
Product Body Finish Matt Black
Market Segment Commercial indoor and outdoor, Industrial indoor and outdoor
Finish Matt Black
Features
Fixed/Tiltable
Warranty (Years) 5
Strip Cut Points
Emergency Option No
Size (in ft)
PIR
Emergency Category
Product Length (mm) 139
Product Depth (mm)
Product Width (mm)
Product Weight (g) 5900
Diameter (mm) 360
Optic Polycarbonate diffuser
Material Aluminium, Polycarbonate
Overall diameter (mm)
Base Term
Bulb Base
Construction Aluminium heat-sink, PC injection moulded driver case
Cut Out Diameter (mm)
Cut Out Length (mm)
Strip Cut Points (mm)
Cut Out Width (mm)
Globe Finish
Globe Type
Handheld or Wall Mount
Bulb Fixing
Bulb or Luminaire Shape Round
Luminaire Fixing Suspended
Max Run Length (m)
Max Strip Width (mm)
Mounting Type Rear Cable Entry
Panel Equivalent
Placement / Application Indoor, Outdoor, General Lighting
Spot Type
Strip length (M)
Strip Width (mm)
Typical Mounting Height 6M+
Wiring / Mounting Options
Zones
Profile Height (in mm)
Profile Width
Length (m)
Beam Type
Dimming Range %
Lumen output
Energy Efficiency Label (Image) ILHBC112_EU_label
Luminous Flux in Lumens (lm) 36000
Luminous efficacy (lm/W) 150
Lumens per meter (lm/m)
Maximum Luminous Intensity at 65
Peak Intensity (Cd)
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 70
Colour Type
Compatible Dimmers
Fire Rating (mins)
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
Integrated Light Source
LED Size (mm)
LED Type Surface mounted device (SMD)
LEDs per meter
Lifetime (hours) 50000
Lighting Method
Lumens in Emergency mode (lm)
Sensor / Overide
Switching Cycles 25000
Unified Glare Rating (UGR)
Useful Lumens (lm) 36000
Power (W)
Power Consumption (w) 240
Power Consumption per meter (W/m)
Power Factor 0.95
Voltage (V)
Wattage equivalent (W)
Wattage Saving (W)
Amperage (mA)
Input Current (A)
Input Voltage (V) 220-240
Output Current (mA)
Output Voltage (V)
Battery Configuration
Dimming Non-Dimmable
Driver IC Manufacturer
Driver Included Yes
Electric Current AC
Emergency Battery Life (years)
Emergency Lumens (lm)
Emergency Type
Insulation Guard
Protection Function
True Wattage Eq (W)
EN EN-60598, EN61000, EN61547, EN55015, IEC62321
LVD Certified Yes
EN EN-60598, EN61000, EN61547, EN55015, IEC62321
LVD Certified Yes
CE RoHS Yes
Energy Rating
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Back/Recessed side)
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -30
Max Strip IP Rating
Maximum Operating Temperature (°C) 45
Metal Halide Equivalent 400
Profile IP Rating
TP rating
Package Weight (g) 7000
Package Length (mm) 445
Package Width (mm) 225
Package Depth (mm) 445
Qty per euro pallet
