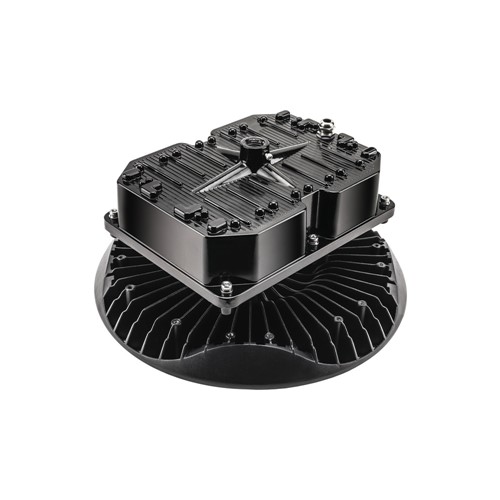

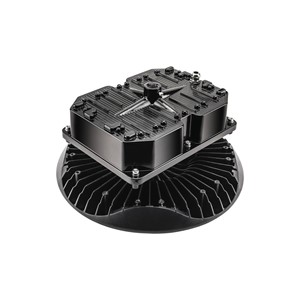

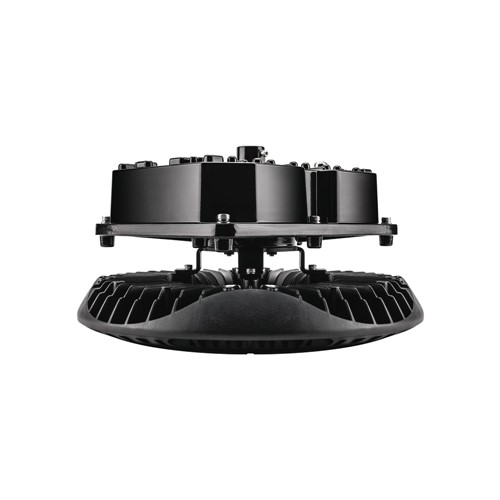

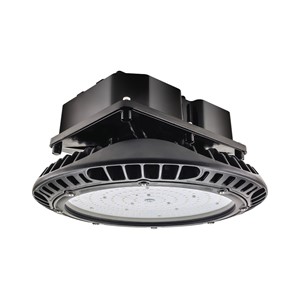

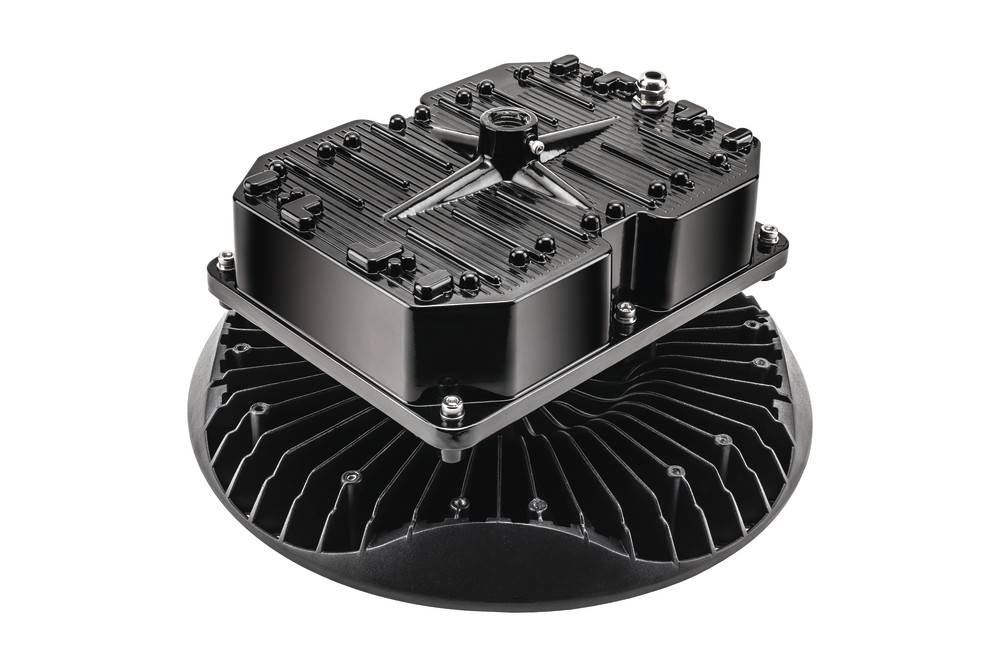

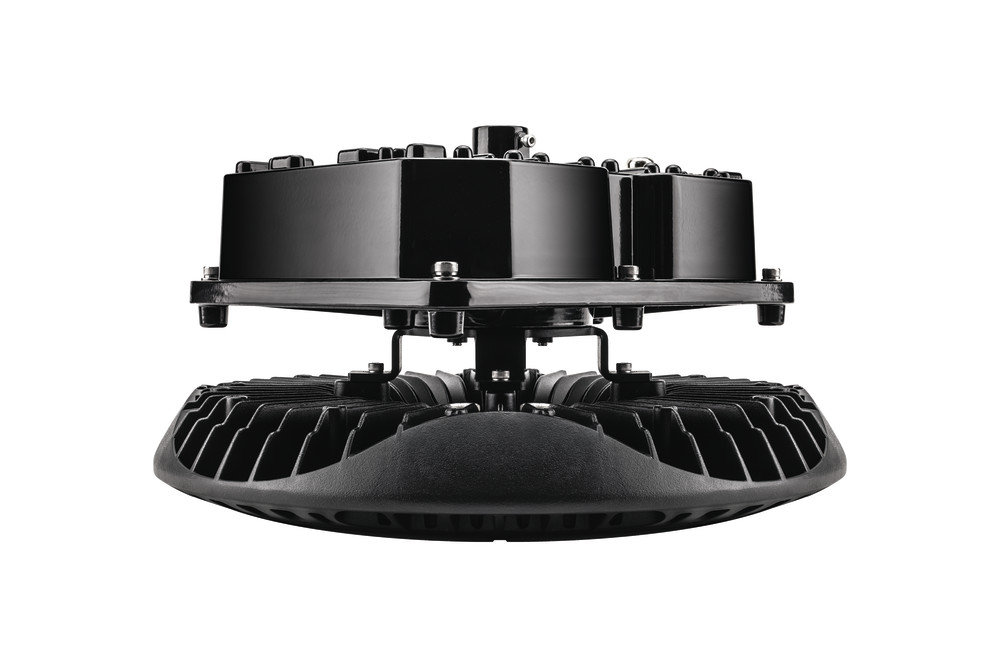

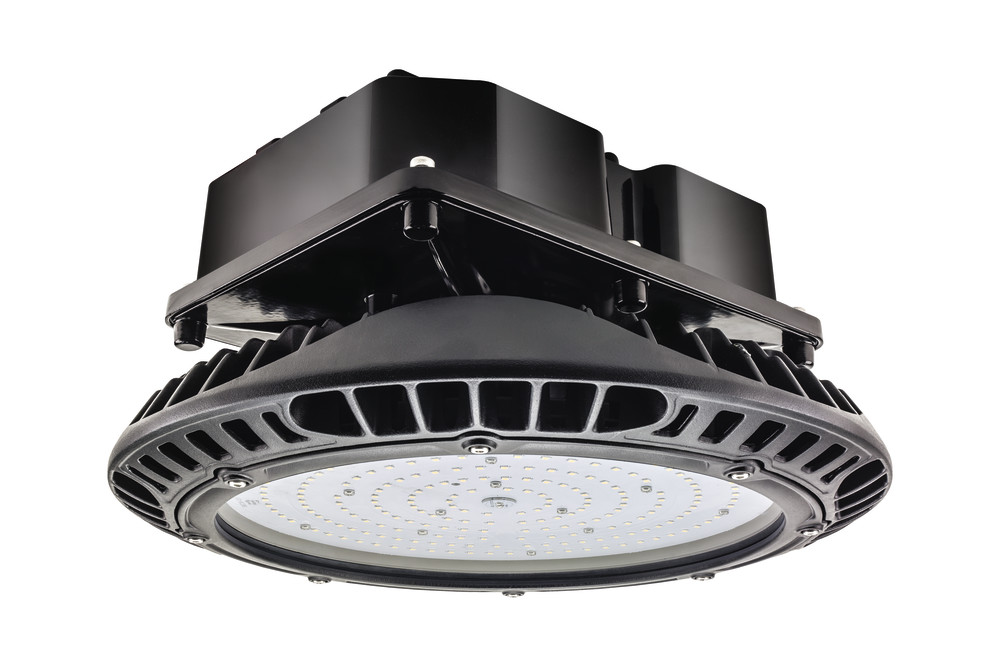

TOUGHSHELL CIRCULAR HIGH BAY 1PK IP44 13000LM 100W 4000K 60 BEAM 1-10V DIMMABLE EMERGENCY INTEGRAL
Part Number:
ILHBC160E
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
The Tough-Shell Circular High Bay is a rugged, attractive and highly efficient solution for lighting large indoor facilities such as warehouses, production facilities and indoor sports halls. Running at an efficacy of 130lm/W, this Tough-Shell provides up to 26,000lm and thanks to its skilfully engineered aluminium body it effectively dissipates heat while maintaining IK10 impact resistance. This emergency model will provide 2600lm for 3 hours in the event of a power cut.
- Product Feature 1:
- 60 degree beam angle
- Product Feature 2:
- 130lm/W
- Product Feature 3:
- Cool White
- Product Feature 4:
- Dimmable
- Product Feature 5:
- 5 Year Warranty
- Product Feature 6:
- Integrated Emergency function
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788246220 |
|---|---|
| Quick Order Code | 391418 |
| Category | Luminaires |
| Range Name | Tough-Shell |
| Type | Circular |
| Product Type | Circular High Bay |
| Product Body Finish | Matt Black |
| Market Segment | Commercial indoor/outdoor, Industrial indoor/outdoor |
| Finish | Matt Black |
| Features | Emergency Function |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | High Bays |
| Linkable | No |
| Product Length (mm) | 139 |
| Product Depth (mm) | 139 |
| Product Width (mm) | 360 |
| Product Weight (g) | 6200 |
| Diameter (mm) | 360 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate |
| Construction | Aluminium heat-sink, PC injection moulded driver case |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Suspended |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Typical Mounting Height | 6M+ |
Light Data
| Energy Efficiency Label (Image) | ILHBC160E_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 13000 |
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 60 |
| Colour Rendering Index (CRI) | 73 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
| Useful Lumens (lm) | 13000 |
Electrical Data
| Power Consumption (W) | 100 |
|---|---|
| Power Factor | 0.95 |
| Voltage Range (v) | 100-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Type | Non-Maintained |
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP40 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 45 |
| Metal Halide Equivalent | 400 |
Packaging
| Barcode | 5055788246220 |
|---|---|
| Package Weight (g) | 7800 |
| Package Length (mm) | 445 |
| Package Width (mm) | 225 |
| Package Depth (mm) | 445 |
