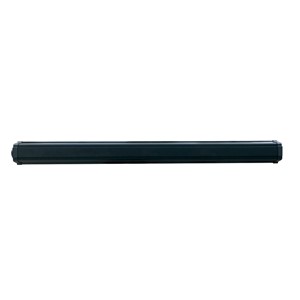

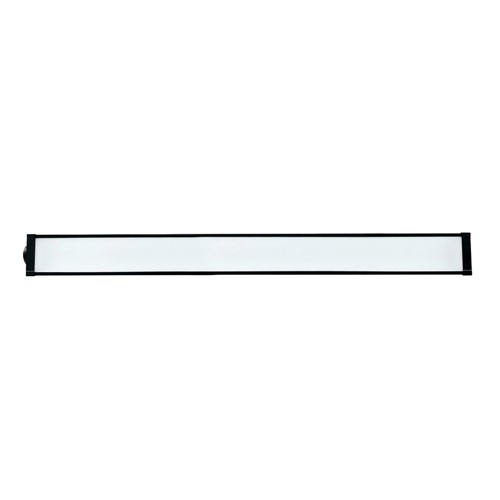

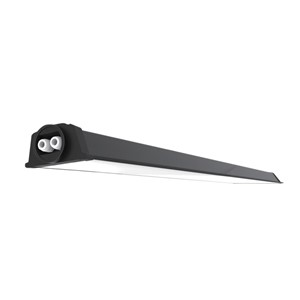

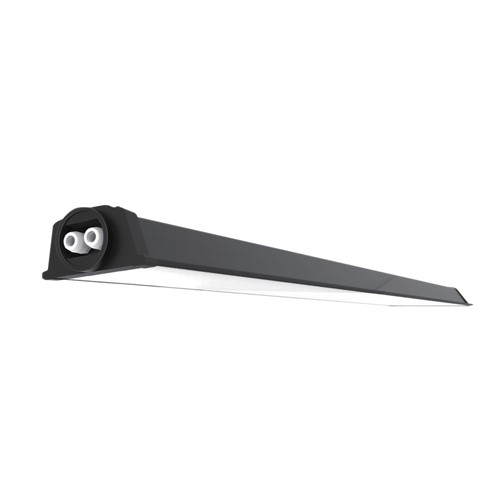

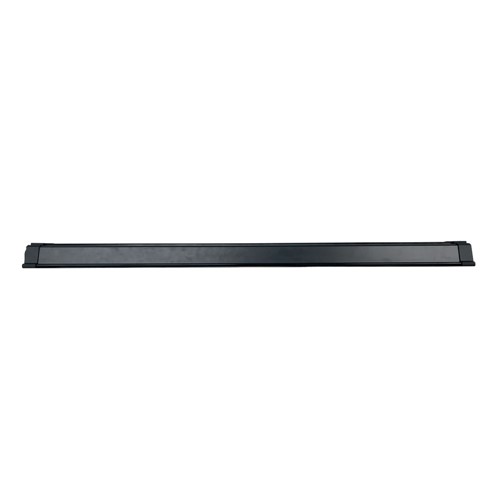

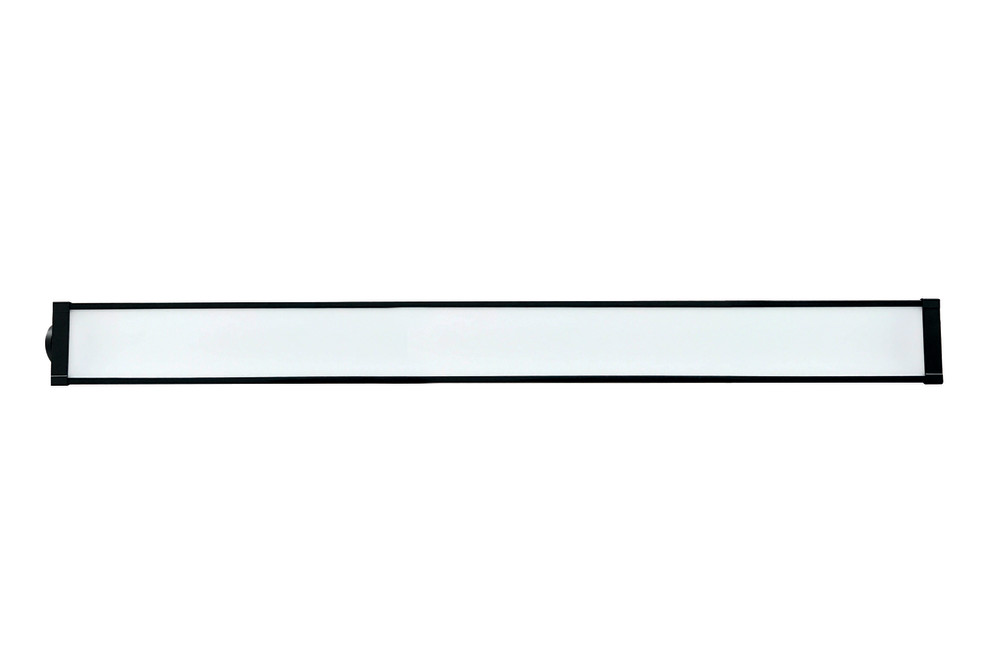

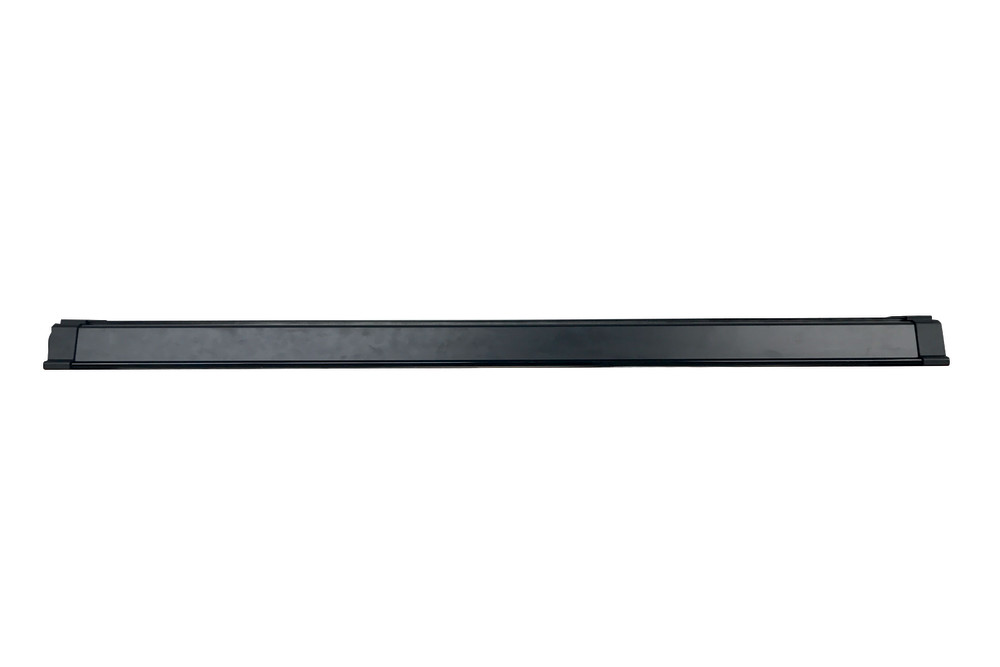

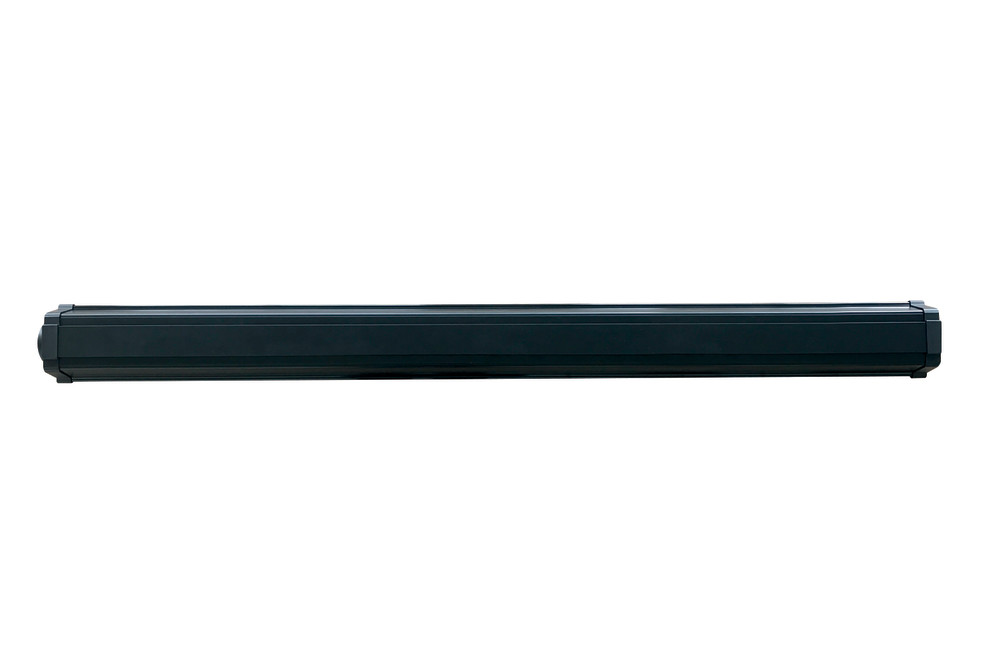

LINEAR HIGH BAY 1PK IP65 23400LM 180W 5000K 130LM/W 110 BEAM INTEGRAL

Part Number:

ILHBL028

THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

Integral LED's Linear Low Bay luminaire is a highly efficient retrofit replacement for fluorescent tube fittings. The high lm/W efficacy and Daylight output make them ideal for warehouses, assembly plants, showrooms and more.

Product Feature 1:
23400lm
Product Feature 2:
Daylight
Product Feature 3:
130lm/W
Product Feature 4:
Class II
Product Feature 5:
3 Year Warranty
Availability:
0

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 649986
Barcode 5055788239109
Category Luminaires
Range Name Linear Low Bay
Type Linear
Product Type Linear High Bay
Product Body Finish Matt Black
Market Segment Commercial indoor, Industrial indoor
Finish Matt Black
Warranty (Years) 3
Emergency Option No
Linkable No
Product Length (mm) 1224
Product Depth (mm) 106
Product Width (mm) 150
Product Weight (g) 3000
Optic Polycarbonate diffuser
Material PC/ABS
Construction PC extrusion and injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Suspended/ceiling mounted
Mounting Type Rear Cable Entry
Placement / Application Indoor, Outdoor, General Lighting
Typical Mounting Height 5M
Energy Efficiency Label (Image) ILHBL028_EU_label
Luminous Flux in Lumens (lm) 23400
Luminous efficacy (lm/W) 130
Correlated Colour Temperature (CCT) (K) 5000
Colour Temperature Name Daylight
Beam Angle 110
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 100000
Useful Lumens (lm) 23400
Power Consumption (W) 180
Power Factor 0.95
Voltage Range (v) 220-240
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
Metal Halide Equivalent 400
Package Weight (g) 3500
Package Length (mm) 1275
Package Width (mm) 215
Package Depth (mm) 147

Product Specification Sheet

Safety Guides

LDT Files

Installation Guides
